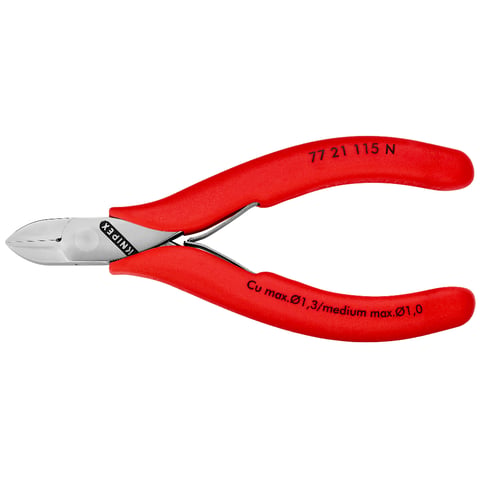

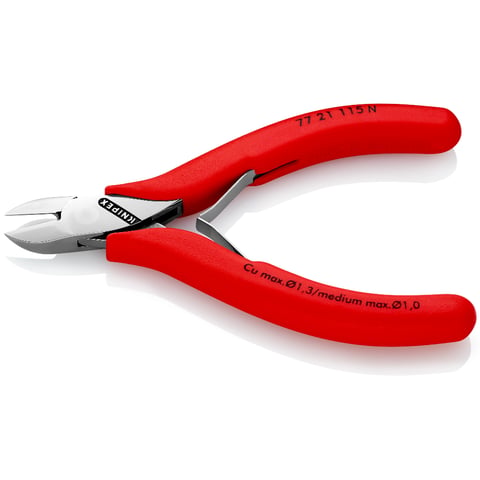

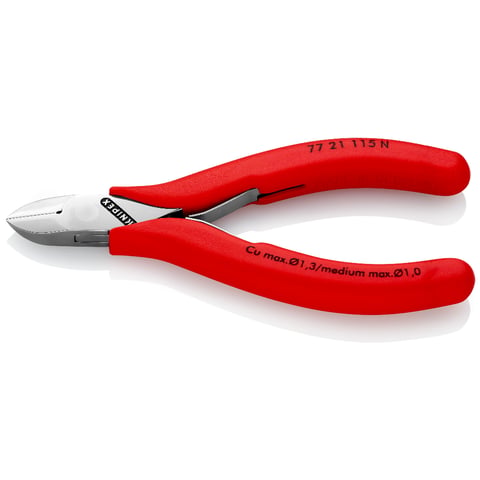

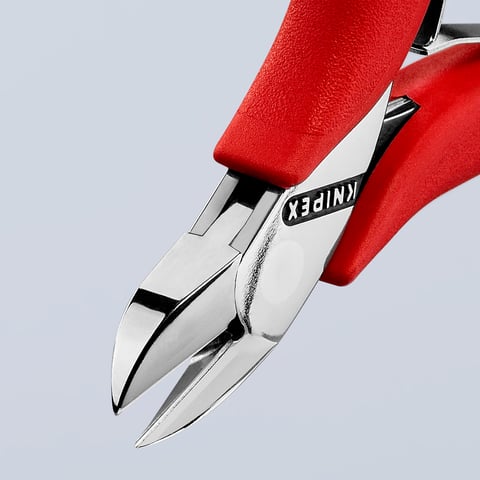

77 21 115 NElectronics Diagonal CutterWith box joint
77 21 115 N
Electronics Diagonal Cutter
With box joint

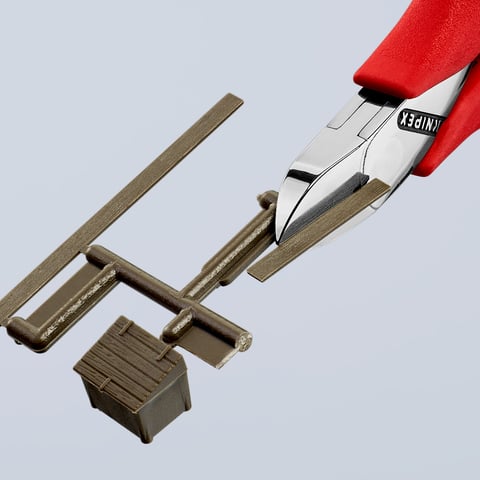

- For fine cutting work, e.g. in electronics and fine mechanics
- Load-optimised for a more direct feel when working
- Sturdy, zero-backlash box joint
- Low-friction double spring for gentle and even opening
- The polish or mirror polish together with a fine film of oil offer effective rust protection - no circuit faults caused by peeling chrome from plated tools
- Cutters additionally laser hardened, cutter hardness at least 60 HRC
- Narrow sleeves pulled up to the head of the pliers enable the tool to be guided securely and comfortably, also between thumb and index finger
Technical attributes
Article No.
77 21 115 N
EAN
4003773082309
Head
mirror polished
Handles
plastic coated
Weight
50 g
Dimensions
115 x 64 x 12 mm
Standard
DIN ISO 9654
REACH compliant
does not contain SVHC
RoHS compliant
not applicable
Cutting capacities medium hard wire (diameter)
Ø 1.0 mm
Cutting capacities soft wire (diameter)
Ø 1.3 mm
Jaw length (B)
13 mm
Jaw thickness (joint) (D)
7 mm
Head width (A)
11 mm
