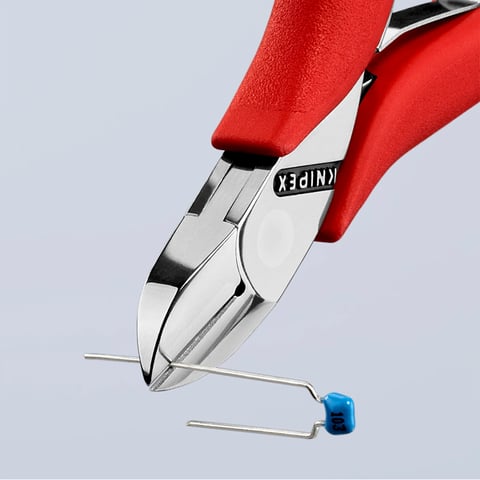

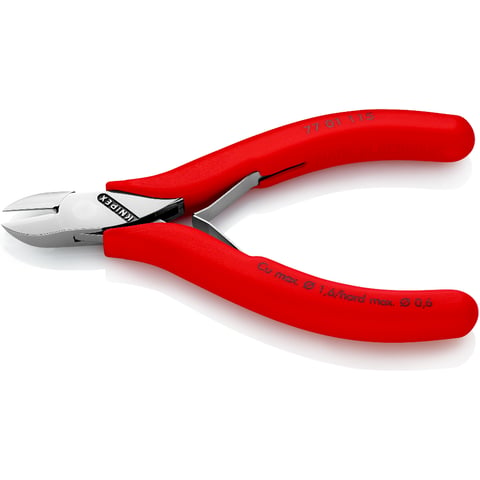

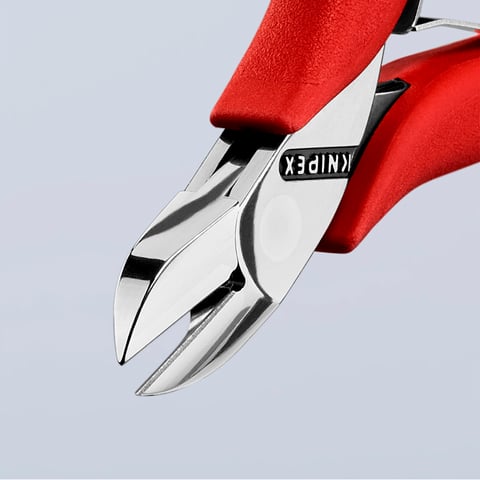

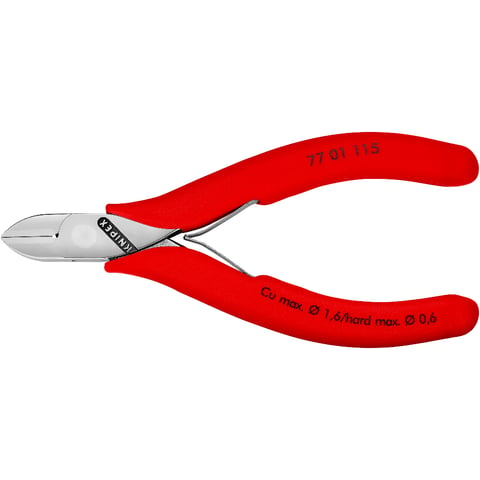

77 01 115
Electronics Diagonal Cutter

  • Round head, with bevel
  • Cutting edge hardness approx. 62 HRC
  • For fine cutting work, e.g. in electronics and fine mechanics
  • Load-optimised for a more direct feel when working
  • Low-friction double spring for gentle and even opening
  • The polish or mirror polish together with a fine film of oil offer effective rust protection - no circuit faults caused by peeling chrome from plated tools
  • Cutters additionally laser hardened, cutter hardness at least 60 HRC
  • Narrow sleeves pulled up to the head of the pliers enable the tool to be guided securely and comfortably, also between thumb and index finger
  • Ball bearing chrome steel, oil hardened
Technical attributes
Article No.
77 01 115
EAN
4003773018568
Head
mirror polished
Handles
plastic coated
Weight
50 g
Dimensions
115 x 64 x 11 mm
Standard
DIN ISO 9654
REACH compliant
does not contain SVHC
RoHS compliant
not applicable
Cutting capacities medium hard wire (diameter) Cutting capacities medium hard wire (diameter)
Ø 1.2 mm
Cutting capacities hard wire (diameter) Cutting capacities hard wire (diameter)
Ø 0.6 mm
Cutting capacities soft wire (diameter) Cutting capacities soft wire (diameter)
Ø 0.3 – 1.6 mm
Jaw length (B)
14 mm
Jaw thickness (joint) (D)
7.5 mm
Head width (A)
11 mm

High Knipex quality standards and safety rust protection

Brief overview

High-grade special tool steel, forged, oil-hardened

Handles coated with non-slip plastic

Length 115 mm

They are characterised by high precision and functionality – plus the proverbial Knipex durability.

Professionals who use tools a lot every day expect a quality that enables them to work easily and safely and that can withstand many years of tough service. Box joint Knipex electronics diagonal cutter are forged from special quality special tool steel and are carefully processed and gently heat-treated.

All variations

77 01 130
Electronics Diagonal Cutter
100-140 mm
mirror polished
Length: 130 mm
77 02 115
Electronics Diagonal Cutter
100-140 mm
mirror polished
multi-component grips
Length: 115 mm
77 02 130
Electronics Diagonal Cutter
100-140 mm
mirror polished
multi-component grips
Length: 130 mm
77 11 115
Electronics Diagonal Cutter
100-140 mm
mirror polished
Length: 115 mm
77 12 115
Electronics Diagonal Cutter
100-140 mm
mirror polished
multi-component grips
Length: 115 mm
77 21 115 N
Electronics Diagonal Cutter With box joint
mirror polished
Length: 115 mm
77 21 130
Electronics Diagonal Cutter
100-140 mm
mirror polished
Length: 130 mm
77 22 115
Electronics Diagonal Cutter
100-140 mm
mirror polished
multi-component grips
Length: 115 mm
77 22 130
Electronics Diagonal Cutter
100-140 mm
mirror polished
multi-component grips
Length: 130 mm
77 32 115
Electronics Diagonal Cutter
100-140 mm
mirror polished
multi-component grips
Length: 115 mm
77 41 115
Electronics Diagonal Cutter
mirror polished
multi-component grips
Length: 115 mm
77 42 115
Electronics Diagonal Cutter
100-140 mm
mirror polished
multi-component grips
Length: 115 mm
77 42 130
Electronics Diagonal Cutter
100-140 mm
mirror polished
multi-component grips
Length: 130 mm
77 52 115
Electronics Diagonal Cutter
100-140 mm
mirror polished
multi-component grips
Length: 115 mm
77 72 115
Electronics Diagonal Cutter
100-140 mm
mirror polished
multi-component grips
Length: 115 mm
