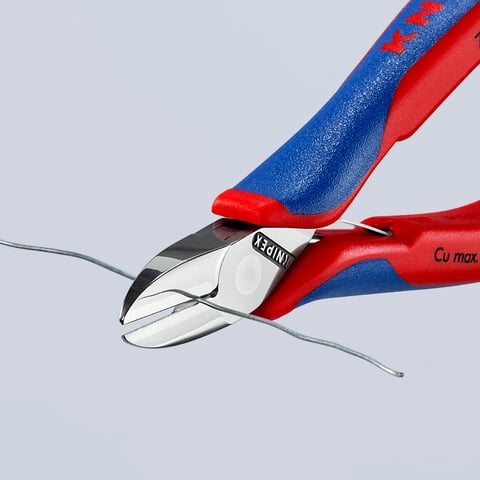

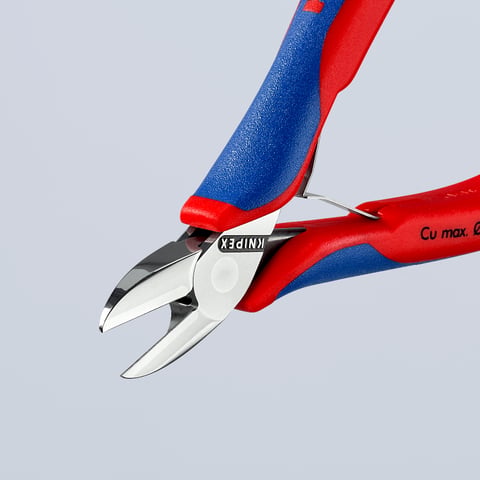

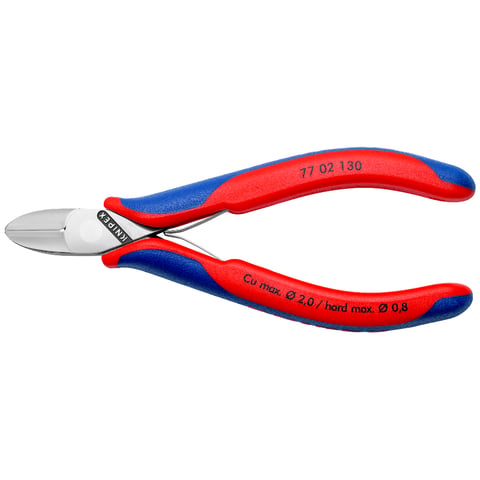

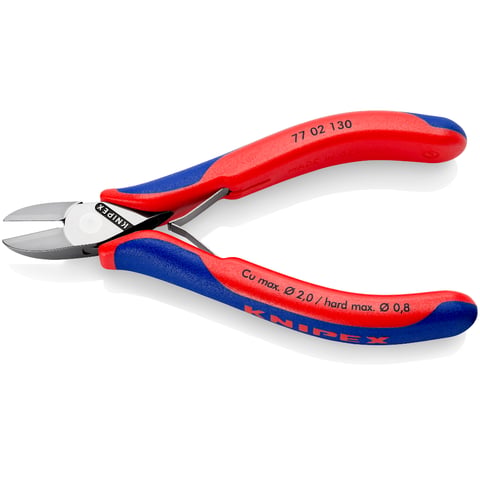

77 02 130Electronics Diagonal Cutter
77 02 130
Electronics Diagonal Cutter
- Round head, with small bevel
- Cutting edge hardness approx. 62 HRC
- For fine cutting work, e.g. in electronics and fine mechanics
- Load-optimised for a more direct feel when working
- Sturdy, zero-backlash box joint
- Low-friction double spring for gentle and even opening
- The polish or mirror polish together with a fine film of oil offer effective rust protection - no circuit faults caused by peeling chrome from plated tools
- Cutters additionally laser hardened, cutter hardness at least 60 HRC
- Narrow sleeves pulled up to the head of the pliers enable the tool to be guided securely and comfortably, also between thumb and index finger
Technical attributes
Article No.
77 02 130
EAN
4003773039341
Head
mirror polished
Handles
with multi-component grips
Weight
124 g
Dimensions
130 x 60 x 18 mm
Standard
DIN ISO 9654
REACH compliant
does not contain SVHC
RoHS compliant
not applicable
Cutting capacities medium hard wire (diameter)
Ø 1.5 mm
Schneidwerte harter Draht (Durchmesser)
Ø 0.8 mm
Cutting capacities soft wire (diameter)
Ø 0.3 – 2 mm
Jaw length (B)
18 mm
Jaw thickness (joint) (D)
9.5 mm
Head width (A)
15 mm
Brief overview
Comp. Diagonal cutters for fine cutting, e.g. in electronics/precision mechan.
Wire cutting values: soft Ø0.3–2.0 mm, medium-hard Ø1.5 mm, hard Ø0.8 mm
Box joint
Mirror polish plus fine oil film protect against rust
Forged, oil-hardened with special quality special tool steel
Cutting edges also induction-hardened, hardness approx. 62 HRC
Handles, multi-component grips
Length 130mm; Net weight 124 g
