Knipex
Quality — Made in Germany

86 03 300
Pliers Wrench
Pliers and a wrench in a single tool

  • Replaces the need for sets of metric and imperial spanners
  • Smooth jaws for damage free installation of plated fittings - working directly on chrome!
  • Also excellent for gripping, holding, pressing and bending workpieces
  • Zero backlash jaw pressure prevents damage to edges of sensitive components
  • Fast adjustment by pushing a button directly on the workpiece
  • No unintentional shift of the gripping jaws and no slipping of the joint
  • Parallel jaws give a more solid grip; its design allows flexible adjustment of all widths up to the specified maximum size
  • The ratchet type principle allows quick and easy tightening and release of all bolted connections
  • Lever transmission greater than 10 : 1 for strong gripping power
  • Chrome vanadium electric steel, forged, oil-hardened
Technical attributes
Article No.
86 03 300
EAN
4003773041429
Pliers
chrome-plated
Head
chrome-plated
Handles
plastic coated
Weight
656 g
Dimensions
300 x 75 x 20 mm
REACH compliant
does not contain SVHC
RoHS compliant
not applicable
Jaw thickness (joint) (B2)
9.5 mm
Joint thickness (B3)
15.0 mm
Tips thickness (B1)
9.5 mm
Adjustment positions
24
Capacities for nuts
Ø 2 1/2 Inch
Capacities for nuts
68 mm

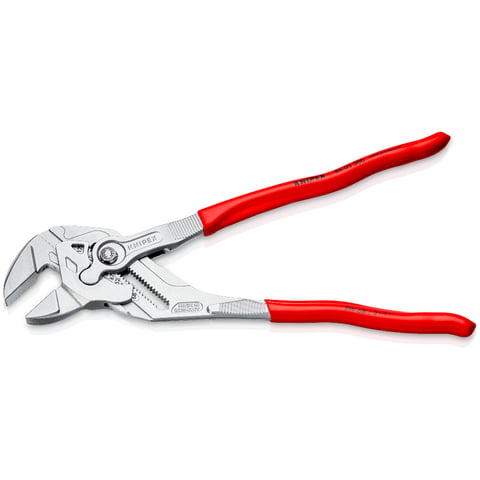

KNIPEX pliers wrench 86 03 300, chrome plated: pliers and wrench in one, 300 mm in length

Now even better: KNIPEX pliers wrench with a length of 300 mm – grips widths across flats of up to a diameter of 68 millimetres (2 1/2")

The KNIPEX pliers wrench, combining pliers and a wrench, is a real all-rounder and a vital part of any tool case. It replaces an entire set of wrenches, both metric and imperial. The new model with a length of 300 mm weighs around 80 g less than the previous model. Continuous gripping of widths across flats up to 68 mm (maximum 2 1/2"). Two practical laser-cut scales help to adjust the pliers wrench to the required width across flats (front metric, rear imperial) in advance. The gripping jaws can be adjusted quickly, reliably and conveniently using a push button. Thanks to smooth, parallel jaws, screw connections with sensitive surfaces, such as fittings, can also be screwed gently into place – all without any damage. In addition, the pliers wrench does not have to be removed when loosening or tightening nuts: The action of the gripping jaws permits screwing according to the ratchet principle.

Also for gripping, pressing or bending

This proven tool can also serve as a mobile vice. Its high transmission ratio of approximately 1:10 enables an enormous increase in manual force for safely holding, gripping, pressing or bending workpieces. As an alternative to adjustment using the push button on the workpiece, the desired width across flats can be pre-adjusted in advance using the scale.

Brief overview

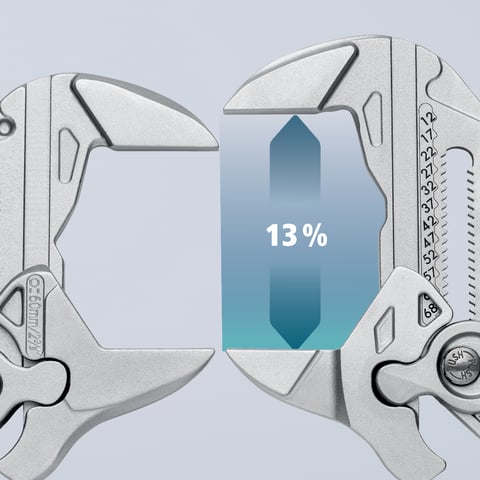

Grips widths across flats up to Ø 68 mm (2 1/2") thanks to two additional adjustment positions

Noticeably less weight, 80 grams lighter with the same stability

The laser-cut scales (metric and imperial) enable pre-adjustment of the width across flats.

Replaces an entire set of wrenches, both metric and imperial

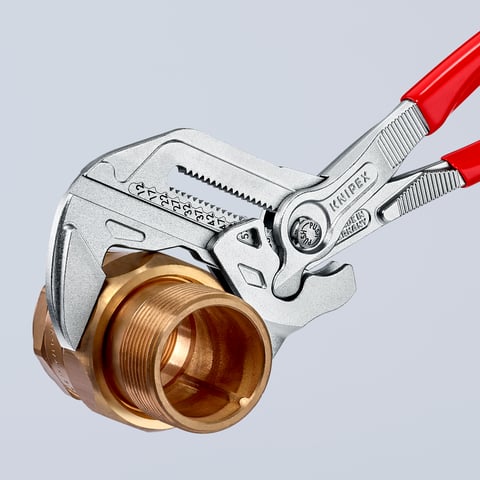

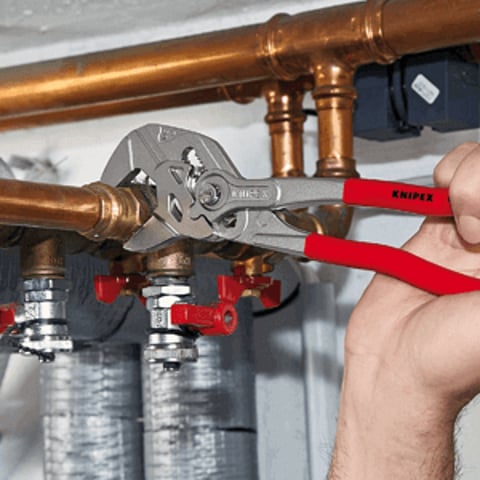

Smooth jaws for damage-free installation of fittings with surface finishes – work directly on chrome

High lever transmission thanks to 10-fold manual force amplification

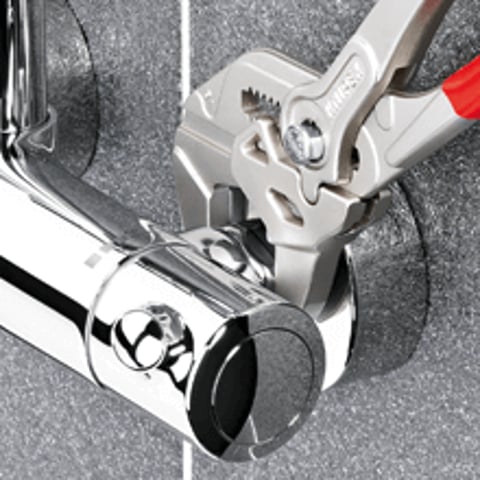

Protects sensitive materials

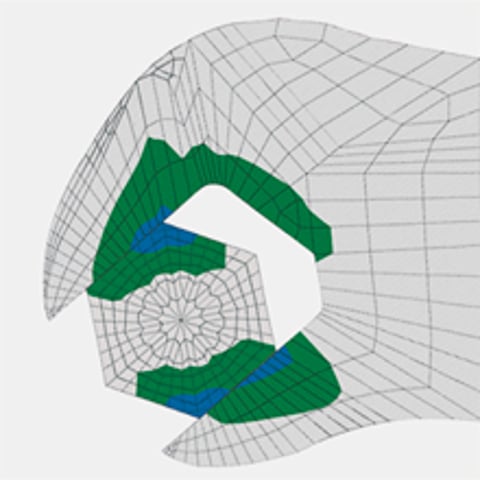

The continuously adjustable gripping jaws are parallel in every position: They grip the surface without play. This prevents damage to the edges, which is particularly important when working on parts with sensitive surfaces such as chrome, brass or plastic.

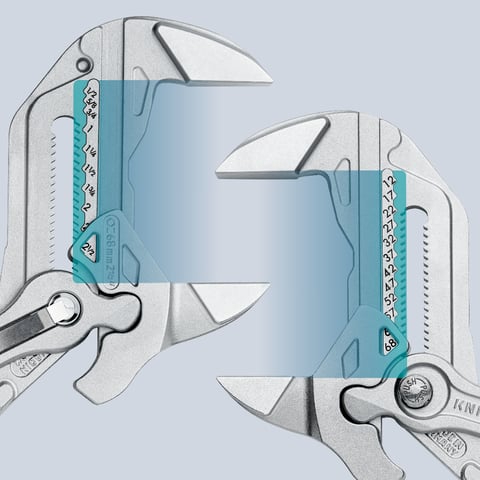

Optimised version with laser-cut adjustment scales

The new versions of the proven pliers wrench can be recognised by the laser-cut scales for pre-adjusting the handle widths: metric millimetre specifications (shown in illustration) on the front of the pliers, and inches on the back.

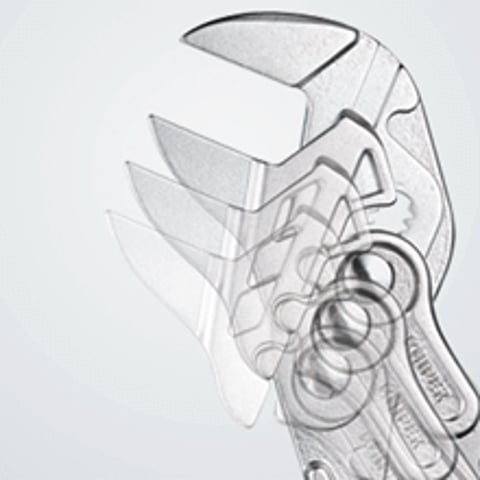

Quick adjustment at the touch of a button

The gripping capacity is easy and safe to adjust thanks to the spring-loaded push button: easy to use, no unintentional shifting and extremely time-saving.

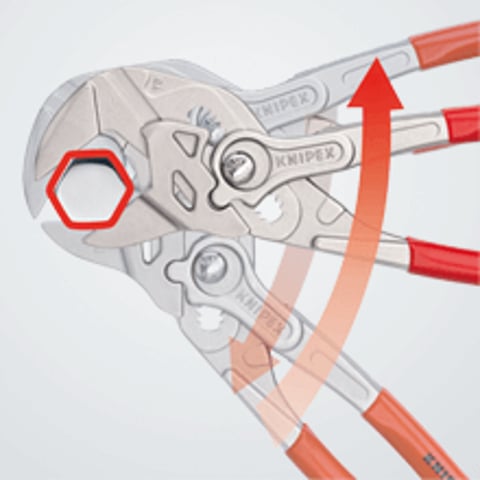

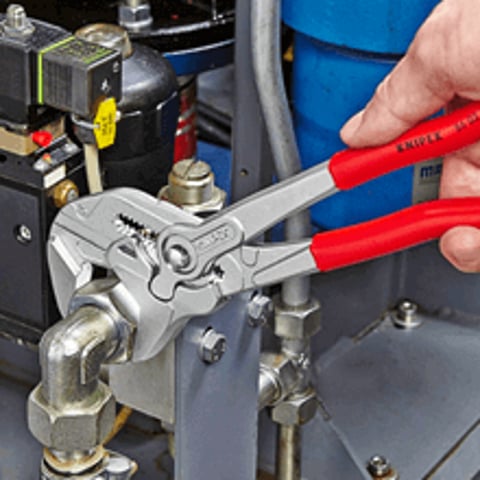

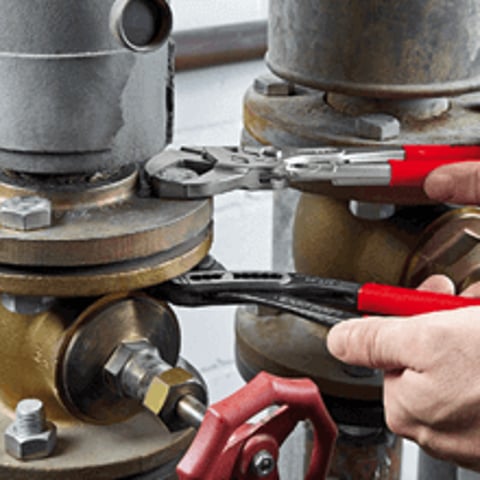

Work quickly thanks to the ratchet principle

Similar to a socket or ratchet wrench, the pliers wrench can be used for screwing without needing to remove and reposition it on the workpiece.

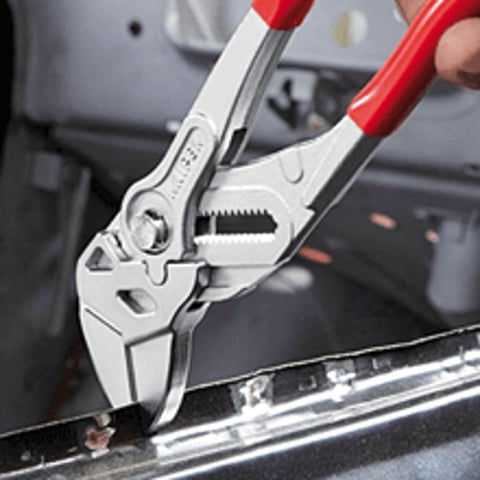

Multifunctional working

Whether bending, pressing or straightening work: the pliers wrench grips reliably.

Fast adjustment at the touch of a button

Replaces a whole set of spanners: can be adjusted at the touch of a button directly on the component (up to 60 mm).

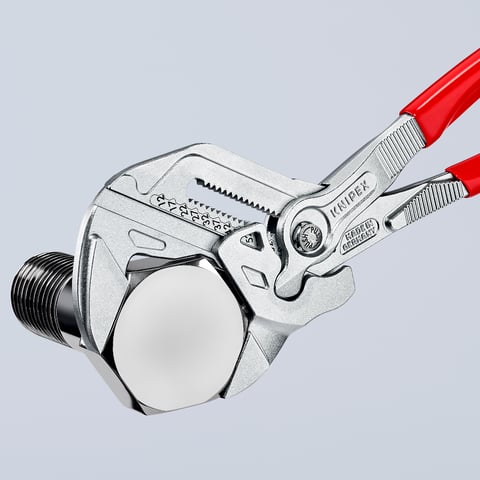

Smooth gripping jaws

The Knipex pliers wrench is characterised by zero backlash component contact, thereby permitting gentle work on sensitive surfaces.

All variations

86 01 180
Pliers Wrench Pliers and a wrench in a single tool
141-180 mm
plastic coated
Length: 180 mm
86 01 250
Pliers Wrench Pliers and a wrench in a single tool
plastic coated
Length: 250 mm
86 01 300
Pliers Wrench Pliers and a wrench in a single tool
Length: 300 mm
86 02 180
Pliers Wrench Pliers and a wrench in a single tool
141-180 mm
Length: 180 mm
86 02 250
Pliers Wrenches Pliers and a wrench in a single tool
Length: 250 mm
86 03 125
Mini pliers wrench Pliers and a wrench in a single tool
100-140 mm
chrome-plated / zinc-plated / nickel-plated
plastic coated
Length: 125 mm
86 03 150
Pliers Wrench Pliers and a wrench in a single tool
141-180 mm
chrome-plated / zinc-plated / nickel-plated
plastic coated
Length: 150 mm
86 03 180
Pliers Wrench Pliers and a wrench in a single tool
141-180 mm
chrome-plated / zinc-plated / nickel-plated
plastic coated
Length: 180 mm
86 03 250
Pliers Wrench Pliers and a wrench in a single tool
chrome-plated / zinc-plated / nickel-plated
plastic coated
Length: 250 mm
86 05 150
Pliers Wrench Pliers and a wrench in a single tool
141-180 mm
chrome-plated / zinc-plated / nickel-plated
Length: 150 mm
86 05 180
Pliers Wrench Pliers and a wrench in a single tool
141-180 mm
chrome-plated / zinc-plated / nickel-plated
Length: 180 mm
86 05 180 T
Pliers Wrench Pliers and a wrench in a single tool
141-180 mm
chrome-plated / zinc-plated / nickel-plated
Length: 180 mm
86 05 250
Pliers Wrench Pliers and a wrench in a single tool
chrome-plated / zinc-plated / nickel-plated
Length: 250 mm
86 05 250 T
Pliers Wrench Pliers and a wrench in a single tool
chrome-plated / zinc-plated / nickel-plated
Length: 250 mm
86 06 250
Pliers Wrench Pliers and a wrench in a single tool
chrome-plated / zinc-plated / nickel-plated
plastic coated
Length: 250 mm

Article 86 03 300 in Set

00 19 55 S4
Set of Pliers Wrenches 5 pieces
00 19 55 S7
Set of Pliers Wrenches 3-piece
