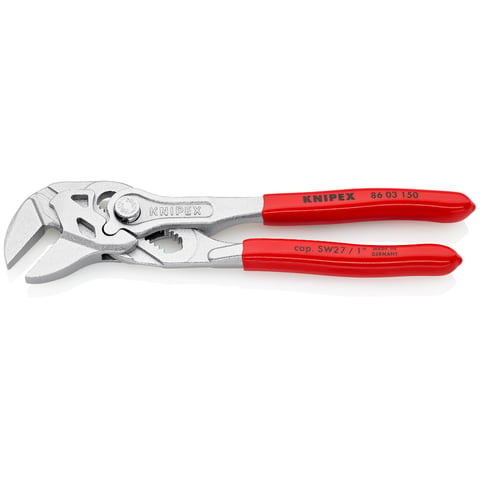

KNIPEX 86 03 150 Zangenschlüssel Zange und Schraubenschlüssel in einem Werkzeug
KNIPEX 86 03 150 Zangenschlüssel Zange und Schraubenschlüssel in einem Werkzeug

86 03 150
Pliers Wrench
Pliers and a wrench in a single tool

  • Replaces the need for sets of metric and imperial spanners
  • Smooth jaws for damage free installation of plated fittings - working directly on chrome!
  • Also excellent for gripping, holding, pressing and bending workpieces
  • Zero backlash jaw pressure prevents damage to edges of sensitive components
  • Push the button for adjustment on the workpiece
  • No unintentional shift of the gripping jaws and no slipping of the joint

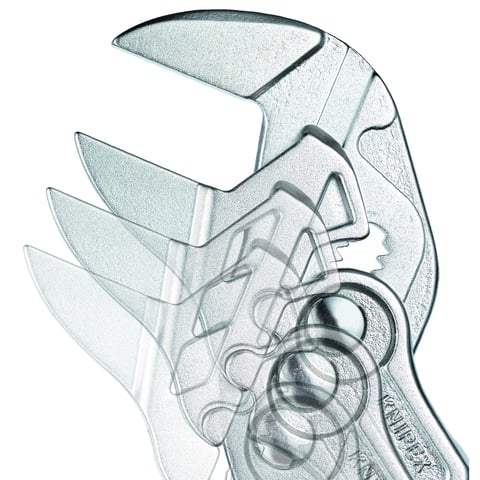

  • Parallel jaws give a more solid grip; its design allows flexible adjustment of all widths up to the specified maximum size
  • The ratchet type principle allows quick and easy tightening and release of all bolted connections
  • Lever transmission greater than 10 : 1 for strong gripping power
  • Chrome vanadium electric steel, forged, oil-hardened
Technical attributes
Article No.
86 03 150
EAN
4003773069676
Pliers
chrome-plated
Head
chrome-plated
Handles
plastic coated
Weight
175 g
Dimensions
150 x 50 x 25 mm
REACH compliant
does not contain SVHC
RoHS compliant
not applicable
Jaw thickness (joint) (B2)
7.0 mm
Joint thickness (B3)
10.5 mm
Tips thickness (B1)
4.7 mm
Adjustment positions
14
Capacities for nuts
Ø 1 Inch
Capacities for nuts
27 mm

Pliers and spanner in a single tool

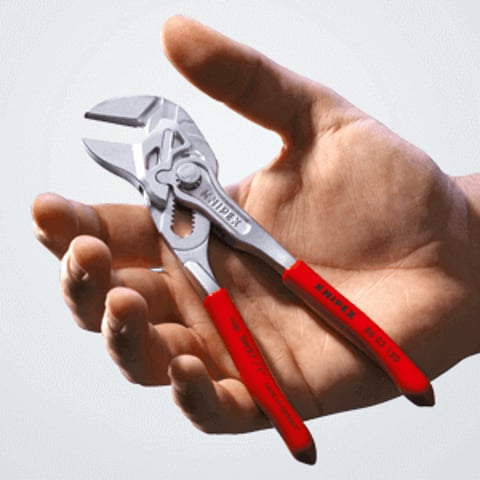

The small Knipex 86 03 150 pliers wrench – for small components and work in confined spaces

With its small size of 150 mm, the pliers wrench fits in any pocket, while also replacing a whole set of spanners - metric and imperial. It grips all widths up to 27 mm or 1 inch, and can be adjusted quickly and directly on the component at the push of a button. The hinge bolt then engages securely, preventing inadvertent adjustment. When under tension, the smooth gripping jaws are parallel to each other in every position, and hold the component accurately and with zero backlash, without damaging edges and sensitive surfaces such as chrome or brass - important during plumbing and heating installation for example.

Pleasant to use

The proven ergonomics of the handles with plastic coating guarantee an agreeably comfortable, non-slip grip – even with frequent use. The pliers wrench holds even the smallest objects as securely as a bench vice. Flat objects can be gripped extremely well and processed simply thanks to the high pressing force and parallel jaws.

Work according to the ratchet principle: the ratchet function between the gripping jaws permits screwing in a similar way to a ratchet, enabling screw connections to be loosened or tightened quickly without the need to reapply the wrench after every screw movement.

Many additional application options

The pliers wrench grips, screws, bends and presses even hot, sharp-edged, dirty, particularly small or slippery objects. It holds objects powerfully and securely at all times, while also enabling sensitive and measured insertion, such as of connector halves or assembly components. It is also a useful helper when working with contact adhesives (pressing to activate the adhesive force) or when breaking open cable ties. It is an equally versatile aid during installation, maintenance and repair work as when in the car or boat or when out on a motorbike or cycle.

Knipex quality: the 86 03 150 pliers wrench is manufactured in the Knipex factory in Wuppertal-Cronenberg using quality materials. As with the other models of pliers from the Knipex think tank, it stands for top quality and therefore - when used correctly - also for exceptional durability.

Brief overview

Screws, grips, holds, bends and presses

Replaces a whole set of spanners

Flexible gripping up to 27 mm or 1 inch

Also for work in confined spaces

Ideal for working on small components

Protects sensitive surfaces

Direct working on chrome, brass etc.

Fast adjustment on the component at the touch of a button

No inadvertent adjustment

Time-saving according to the ratchet principle.

10-fold reinforcement of manual force

Mobile bench vice

Reliable and durable

High performance chrome vanadium steel

Oil hardened

Made in Germany

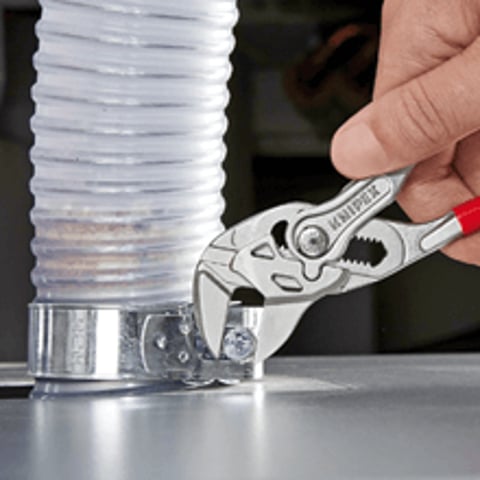

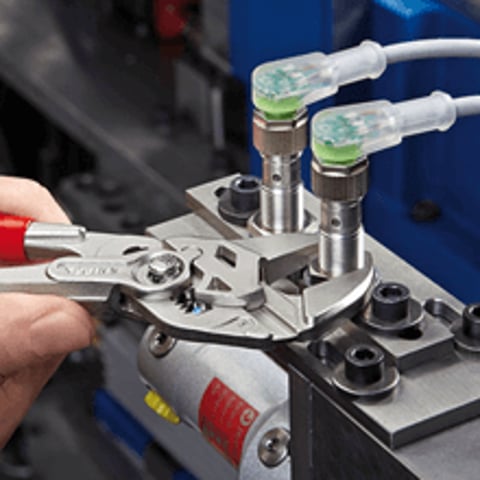

Space-saving universal key

The pliers wrench is ideal for work on particularly small screw joints.

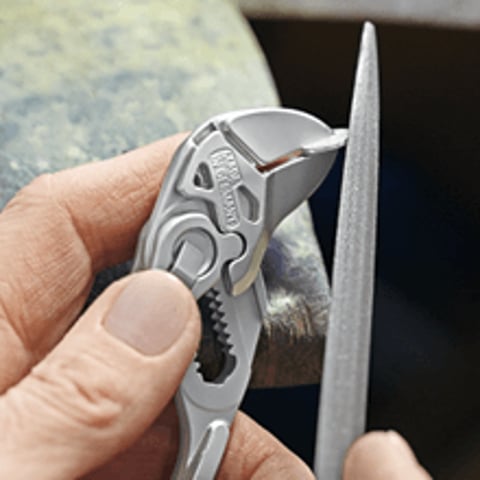

Firm hold

Can be used as a small bench vice: small components can be held securely using the 150 mm long pliers wrench.

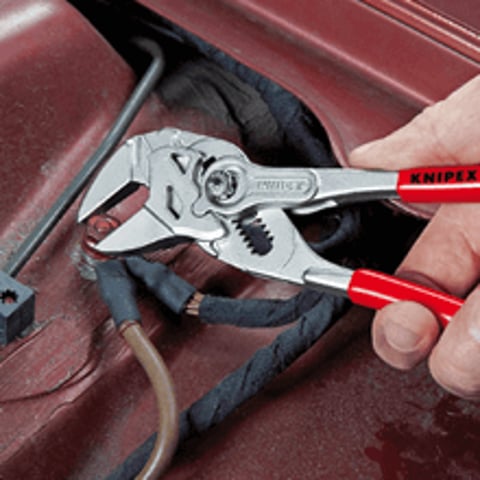

Ideal helper

The pliers wrench repeatedly proves its value as a space-saving universal key on board or in the car.

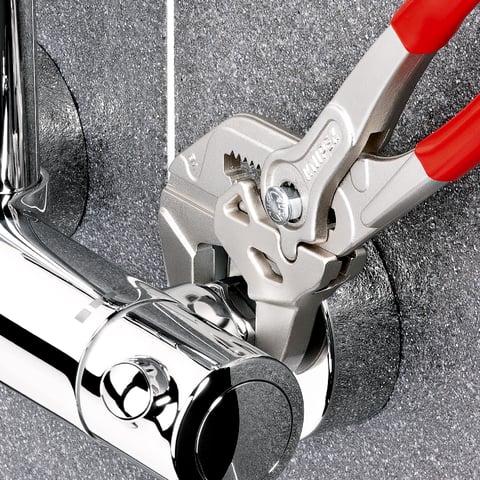

Gentle application

The smooth gripping jaws ensure that sensitive surfaces are protected so that work is gentle on materials.

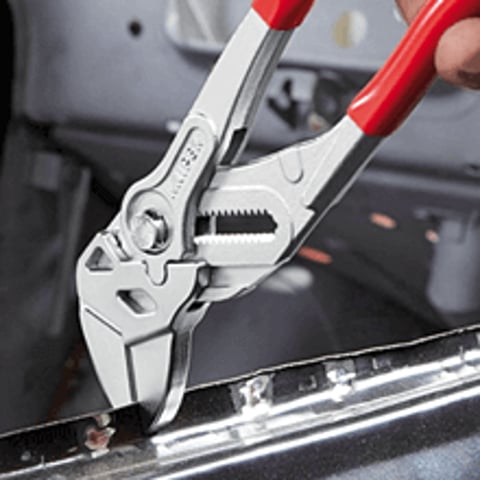

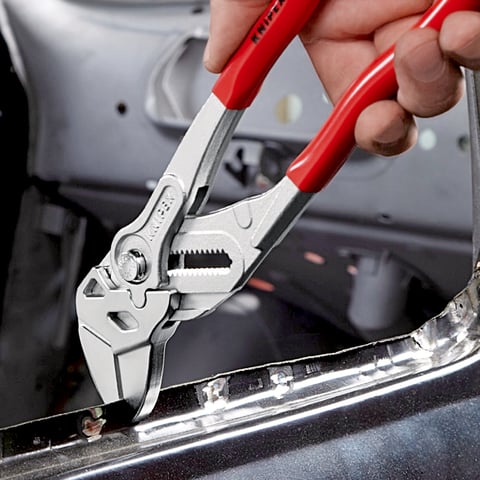

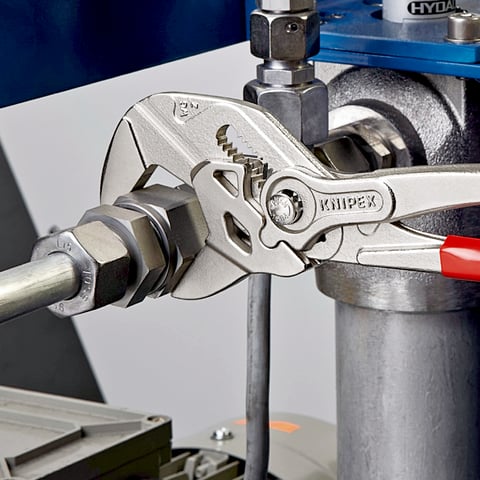

Multifunctional working

Whether bending, pressing or straightening work: the pliers wrench grips reliably.

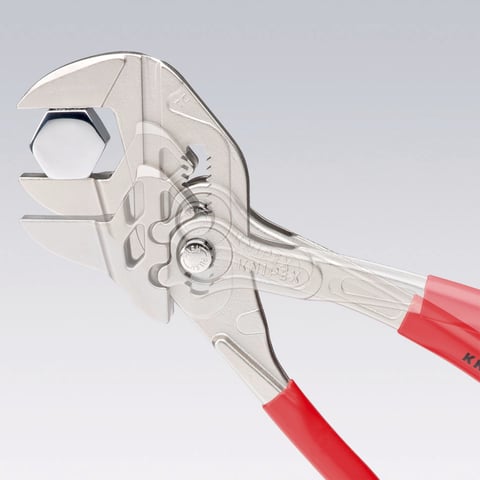

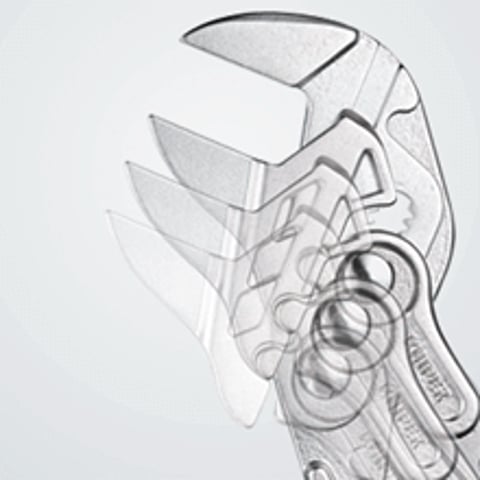

Fast adjustment at the touch of a button

Replaces a whole set of spanners: can be adjusted at the touch of a button directly on the component (up to 27 mm).

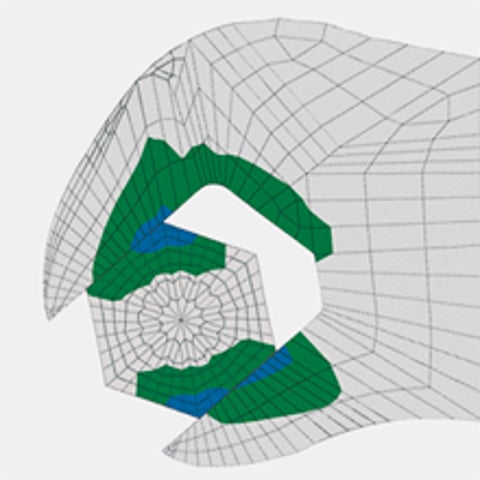

Smooth gripping jaws

The Knipex pliers wrench is characterised by zero backlash component contact, thereby permitting gentle work on sensitive surfaces.

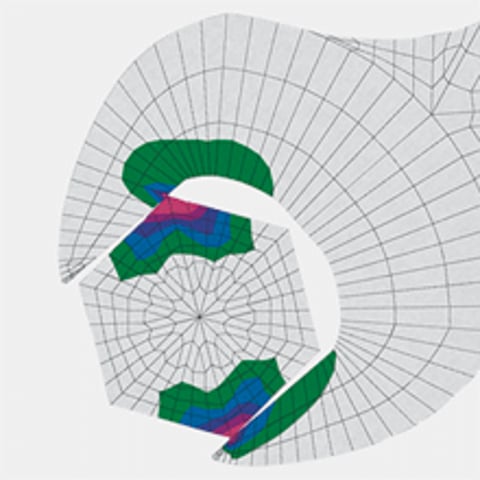

By way of comparison: conventional spanner

With a conventional spanner, the pressing on edges can damage the edges of screws.
