86 02 250Pliers WrenchesPliers and a wrench in a single tool
86 02 250
Pliers Wrenches
Pliers and a wrench in a single tool
- Replaces the need for sets of metric and imperial spanners

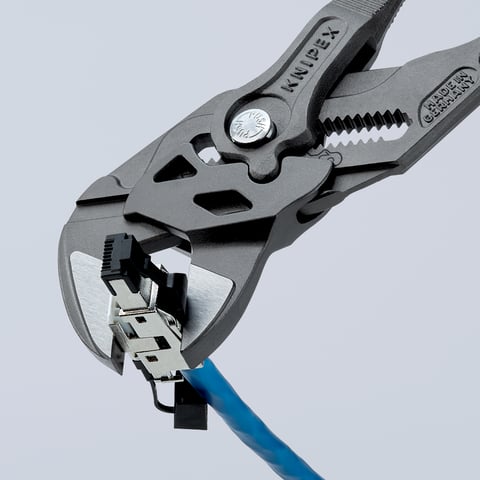

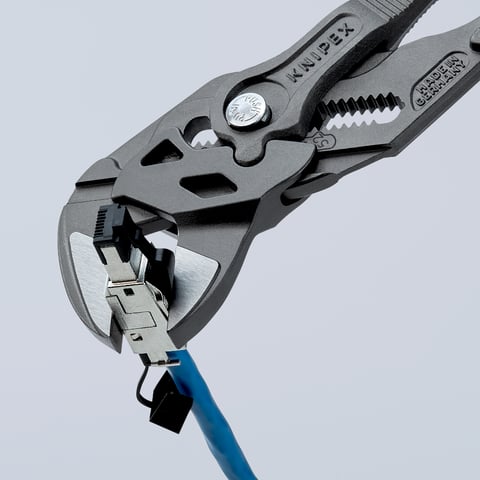

- Smooth jaws for damage free installation of plated fittings - working directly on chrome!
- With scaling for presetting the width apart from the workpiece
- Adjustable tightening tool

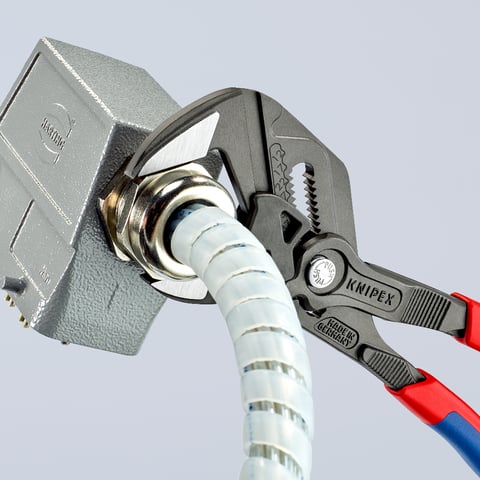

- Also excellent for gripping, holding, pressing and bending workpieces
- Push the button for adjustment on the workpiece
- Zero backlash jaw pressure prevents damage to edges of sensitive components
- Parallel jaws give a more solid grip; its design allows flexible adjustment of all widths up to the specified maximum size
- Reliable catching of the hinge bolt: no unintentional shifting
- The ratchet type principle allows quick and easy tightening and release of all bolted connections
- Lever transmission greater than 10 : 1 for strong gripping power
Technical attributes
Article No.
86 02 250
EAN
4003773082392
Pliers
grey atramentized
Head
polished
Handles
with multi-component grips
Weight
485 g
Dimensions
250 x 55 x 18 mm
REACH compliant
does not contain SVHC
RoHS compliant
not applicable
Jaw thickness (joint) (B2)
8.0 mm
Joint thickness (B3)
14.0 mm
Tips thickness (B1)
8.0 mm
Adjustment positions
19
Capacities for nuts
Ø 2 Inch
Capacities for nuts
52 mm
Brief overview
Screws, grips, holds, bends and presses
Replaces a full set of wrenches
Grips continuously up to 52 mm or 2 inches
Protects sensitive surfaces
10-fold manual force amplification
Direct working on chrome, brass, etc.
Fast adjustment on the workpiece at the touch of a button
Chrome vanadium heavy-duty steel, oil hardened
