86 01 180Pliers WrenchPliers and a wrench in a single tool
86 01 180
Pliers Wrench
Pliers and a wrench in a single tool
- Replaces the need for sets of metric and imperial spanners

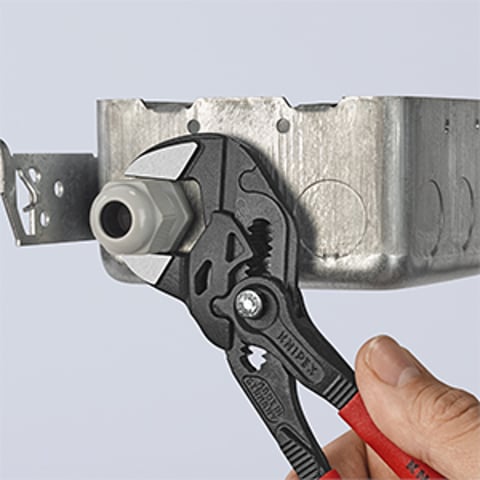

- Smooth jaws for damage free installation of plated fittings - working directly on chrome!
- Increased gripping capacity thanks to two additional setting positions: variable gripping of all widths across flats up to 40 mm
- 10 % less weight with the same stability

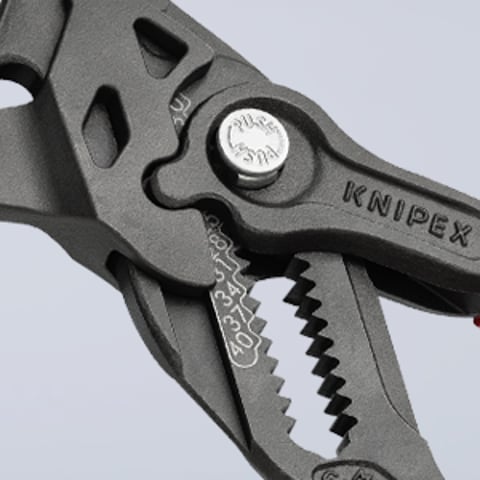

- Practical adjustment scale: a laser-cut scale allows the wrench opening to be set before gripping

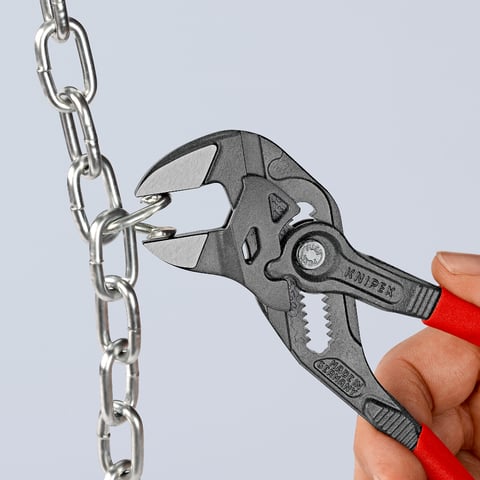

- Also excellent for gripping, holding, pressing and bending workpieces
- Zero backlash jaw pressure prevents damage to edges of sensitive components

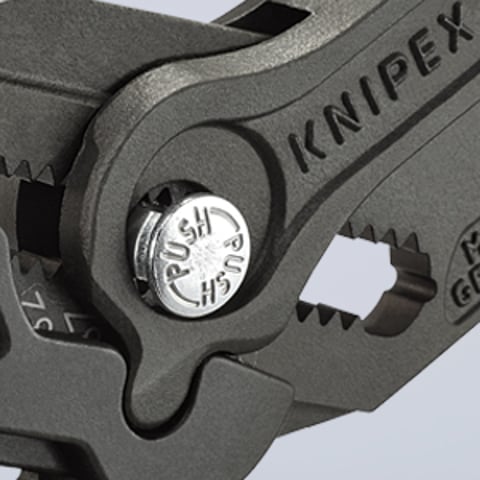

- Fast adjustment by pushing a button directly on the workpiece
- No unintentional shift of the gripping jaws and no slipping of the joint
- Parallel jaws give a more solid grip; its design allows flexible adjustment of all widths up to the specified maximum size
- The ratchet type principle allows quick and easy tightening and release of all bolted connections
Technical attributes
Article No.
86 01 180
EAN
4003773084273
Pliers
grey atramentized
Head
polished
Handles
plastic coated
Weight
230 g
Dimensions
180 x 46 x 15 mm
REACH compliant
does not contain SVHC
RoHS compliant
not applicable
Jaw thickness (joint) (B2)
8.0 mm
Joint thickness (B3)
12.0 mm
Tips thickness (B1)
5.0 mm
Adjustment positions
15
Capacities for nuts
Ø 1 1/2 Inch
Capacities for nuts
40 mm
Brief overview
Screws, grips, holds, bends and presses
Replaces a full set of wrenches
Grips continuously up to 40 mm or 1 1/2 inches
Protects sensitive surfaces
10-fold manual force amplification
Direct working on chrome, brass, etc.
Fast adjustment on the workpiece at the touch of a button
Chrome vanadium heavy-duty steel, oil hardened
