12 12 13Precision Insulation StripperWith adapted blades
- Especially for cables in accordance with the American specification (AWG)
- Form-fit stripping of difficult-to-remove insulating materials made of PTFE, silicone, Radox®, Kapton® and rubber; multi-layer too
- A second pair of blades holds the remaining insulation reliably in place
- Replaceable shaped blade adapted precisely to the respective conductor cross-section
- With length stop for constant stripping length during repetitive work
- Blade: special tool steel, oil-hardened
- Pliers body: steel

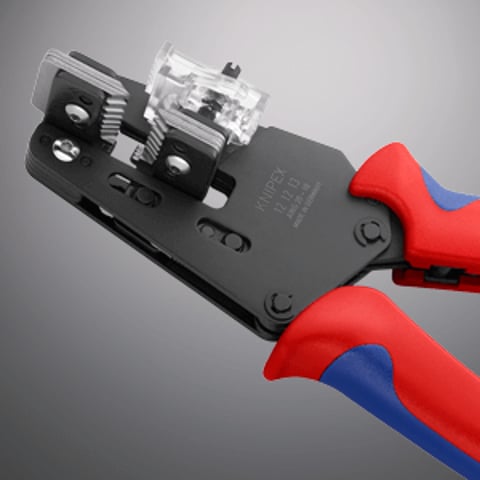

Precision wire strippers for special insulation materials (AWG)
Two pairs of blades: division of labour for the desired result
The Knipex 12 12 13 wire strippers have been specially developed for very tough and hard insulation materials which need to almost be cut through entirely so that they can be pulled off. Two pairs of blades cut into the entire circumference of the cable insulation. The blades have been shaped and ground so that the cut gets very close to the conductor. After scoring, one of the pairs of blades remains still and secures the insulation that has been cut into. The other pair of blades strips the insulation from the cable.
Length stop for reproducible stripping results
The precision wire strippers have a length stop for consistent wire stripping results, which can be easily pushed together with your fingers to slide and adjust it. This enables wire stripping results to be achieved even in the case of demanding insulation materials, meeting high requirements in terms of consistent quality – also for the US market.
Insert cable, press pliers closed – cable is stripped
The work saved by these wire strippers is immense. After inserting the cable, the entire wire stripping process takes place as if by itself with one press of the hand. Even insulation materials that are difficult to process are reliably removed with precise and, thanks to the length stop, accurate repeat measurements: an advantage for fitters who use cable corresponding to the American specification AWG (10, 12, 14, 16, 18, 20) in the areas of energy technology, plant and automotive engineering.
Two pairs of blades cut parallel into the insulation, and remove it with a separating movement
Specially for cables in accordance with American specifications
AWG (American Wire Gauge): 10, 12, 14, 16, 18, 20
Handles with multi-component grips
Length stop easily set by pressing together and sliding for accurately repeated wire stripping
Spare set of blade available
Net weight 450 g
Knipex precision wire strippers with adapted blades
They offer good everyday benefits, even with non-everyday insulation materials that are difficult to strip.
The great benefits of the tools and their safe, comfortable use are the results of decades of experience making pliers, continuous product development and the commitment by Knipex towards high quality standards. Pliers from Knipex are built for many years of use in a professional environment.

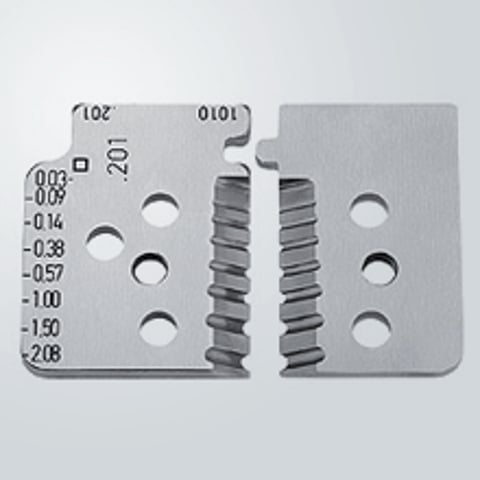

Spare blade for Knipex 12 12 13
Precision cut adapted blades made from oil-hardened special tool steel for a circular cut over the entire circumference.
Four-blade principle: step 1
Two pairs of blades cut into the entire circumference of the hard, tough insulation with a circular cut.
Four-blade principle: step 2
One pair of blades (in the left-hand picture) holds the remaining part of the insulation tight, while the second removes the part to be stripped.

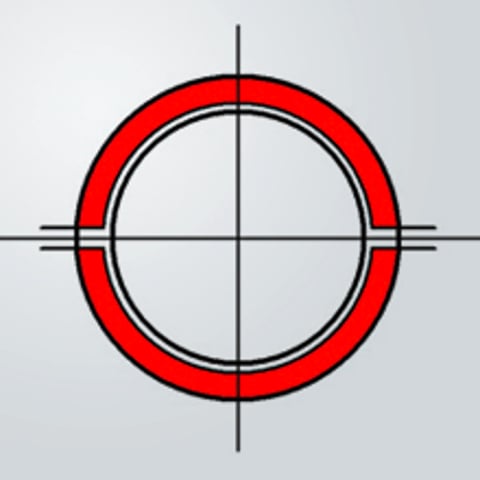

Circular cut for tough, hard insulation materials
Two blades cut right round the PTFE, silicone, Radox, Kapton and rubber insulation for ideal results.
