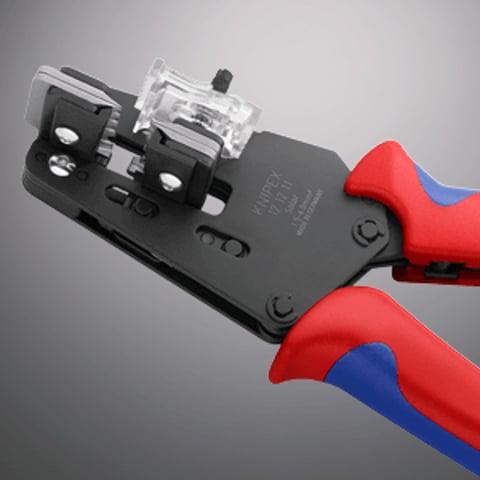

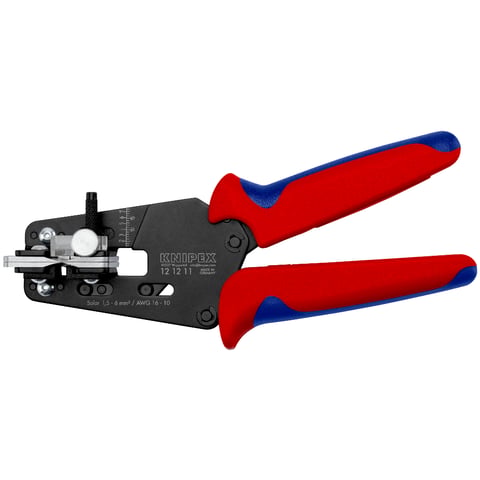

12 12 11
Precision Insulation Stripper
With adapted blades

  • For solar cables, specially adapted to multi-layered and RADOX® insulations

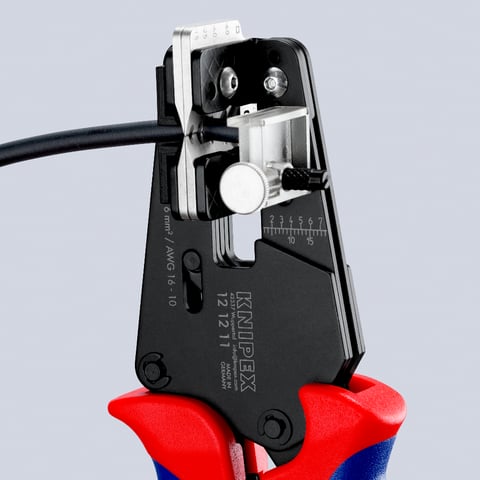

  • With additional cable support for a better centring of multi-layer insulated conductors in the stripping profiles
  • Form-fit stripping of difficult-to-remove insulating materials made of PTFE, silicone, Radox®, Kapton® and rubber; multi-layer too

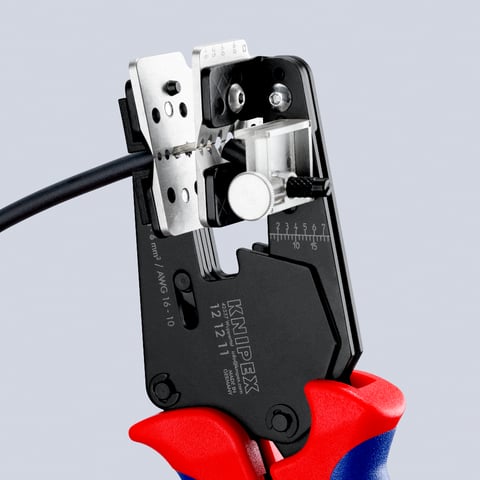

  • A second pair of blades holds the remaining insulation reliably in place

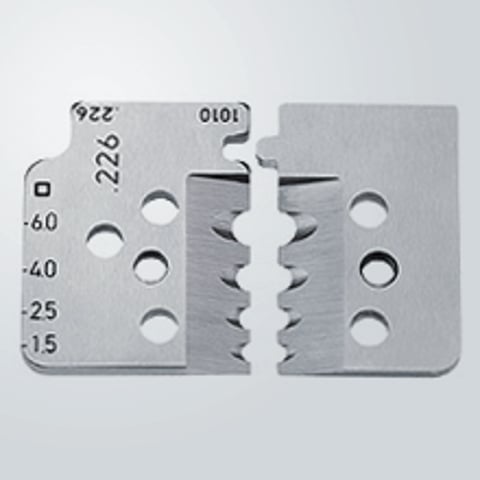

  • Replaceable shaped blade adapted precisely to the respective conductor cross-section

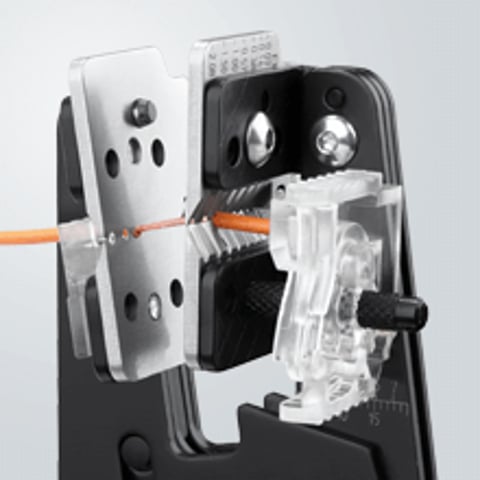

  • With length stop for constant stripping length during repetitive work
Technical attributes
Article No.
12 12 11
EAN
4003773062998
Pliers
burnished
Handles
with multi-component grips
Weight
449 g
Dimensions
195 x 107 x 33 mm
REACH compliant
contains SVHC
RoHS compliant
not applicable
Stripping capacities in square millimetres
1.5 / 2.5 / 4.0 / 6.0 mm²
AWG
16 — 10
Brief overview

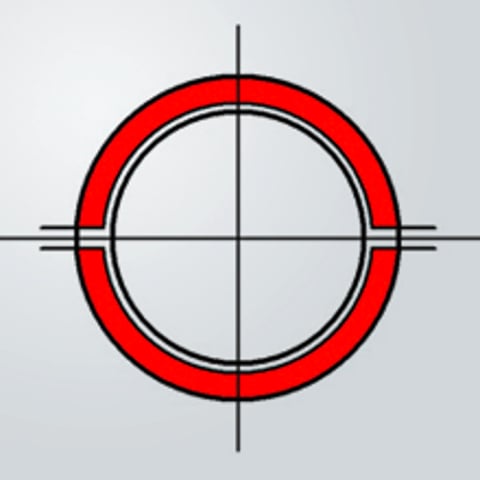

Two pairs of blades cut parallel into the insulation, and remove it with a separating movement

Wire stripping capacities 1.5 – 6.0 mm²

Handles with multi-component grips

Length stop easily set by pressing together and sliding for accurately repeated wire stripping

Spare set of blade available

Net weight 449 g

Specially for multilayer solar cable insulated with Radox

Suitable accesories

12 19 90
Length stop for 12 12 XX

All variations

12 12 02
Precision Insulation Stripper With adapted blades
181-250 mm
atramentised / lacquered / burnished
multi-component grips
0,03 – 2,08 mm²
Length: 195 mm
12 12 06
Precision Insulation Stripper With adapted blades
181-250 mm
atramentised / lacquered / burnished
multi-component grips
0,14 – 6,0 mm²
Length: 195 mm
12 12 10
Precision Insulation Stripper With adapted blades
181-250 mm
atramentised / lacquered / burnished
multi-component grips
2,5 – 10,0 mm²
Length: 195 mm
12 12 12
Precision Insulation Stripper With adapted blades
181-250 mm
atramentised / lacquered / burnished
multi-component grips
4,0 – 10,0 mm²
Length: 195 mm
12 12 13
Precision Insulation Stripper With adapted blades
181-250 mm
atramentised / lacquered / burnished
multi-component grips
Length: 195 mm
12 12 14
Precision Insulation Stripper With adapted blades
181-250 mm
atramentised / lacquered / burnished
multi-component grips
Length: 195 mm

Article 12 12 11 in Set

97 91 01
Tool Case for Photovoltaics 1 x 12 12 11, 1 x 95 16 165, 1 x 97 43 200
97 91 04 V01
Tool Case for Photovoltaics For solar cable connectors MC4 (Multi-Contact) 7 parts
