Knipex Logo

12 12 10
Precision Insulation Stripper
With adapted blades

  • Form-fit stripping of difficult-to-remove insulating materials made of PTFE, silicone, Radox®, Kapton® and rubber; multi-layer too
  • A second pair of blades holds the remaining insulation reliably in place
  • Replaceable shaped blade adapted precisely to the respective conductor cross-section
  • With length stop for constant stripping length during repetitive work
Technical attributes
Article No.
12 12 10
EAN
4003773049012
pliers
burnished
handles
with multicomponent handles
Weight
445 g
Dimensions
195 x 76 x 22 mm
REACH compliant
contains SVHC
RoHS compliant
not applicable
Stripping capacities in square millimetres
2.5 / 4.0 / 6.0 / 10.0 mm²

Precision-wire strippers for special insulation materials

Two pairs of blades: division of labour for the desired result

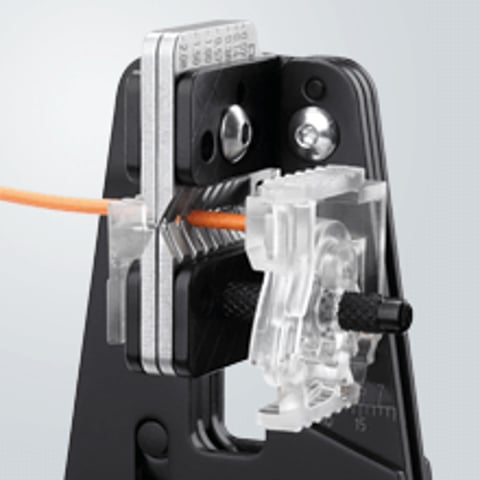

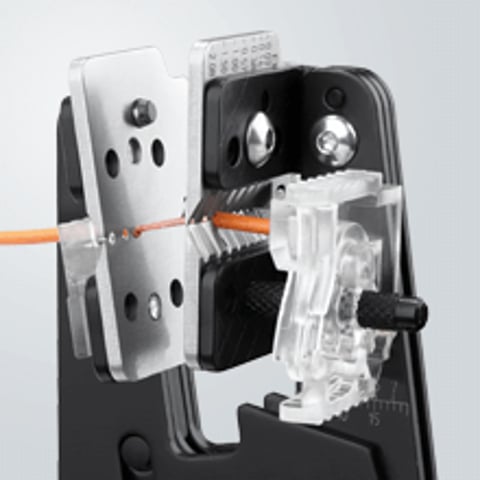

The Knipex 12 12 10 wire strippers have been specially developed for very tough and hard insulation materials which need to almost be cut through entirely so that they can be pulled off. Two pairs of blades cut into the entire circumference of the cable insulation. The blades have been shaped and ground so that the cut gets very close to the conductor. After scoring, one of the pairs of blades remains still and secures the insulation that has been cut into. The other pair of blades strips the insulation from the cable.

Length stop for reproducible stripping results

The precision wire strippers have a length stop for consistent wire stripping results, which can be easily pushed together with your fingers to slide and adjust it. This enables wire stripping results to be achieved even in the case of demanding insulation materials, meeting high requirements in terms of consistent quality.

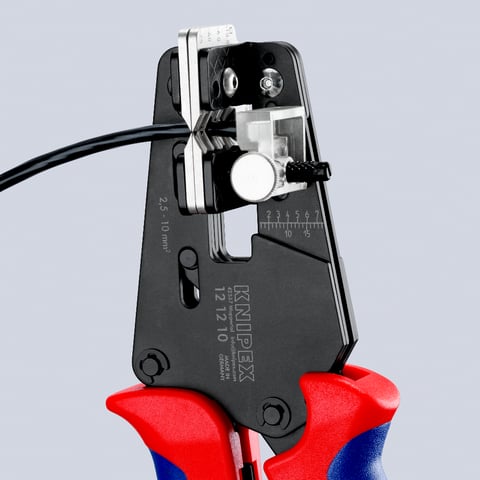

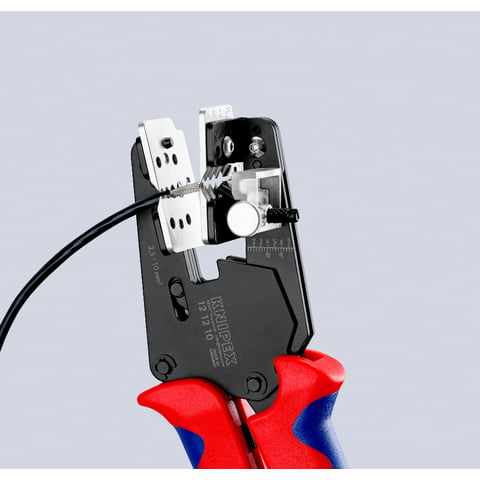

Insert cable, press pliers closed – cable is stripped

The work saved by these wire strippers is immense. After inserting the cable, the entire wire stripping process takes place as if by itself with one press of the hand. Even insulation materials that are difficult to process are reliably removed with precise and, thanks to the length stop, accurate repeat measurements: an advantage for fitters, e.g. in the areas of energy technology, plant and automotive engineering

Brief overview

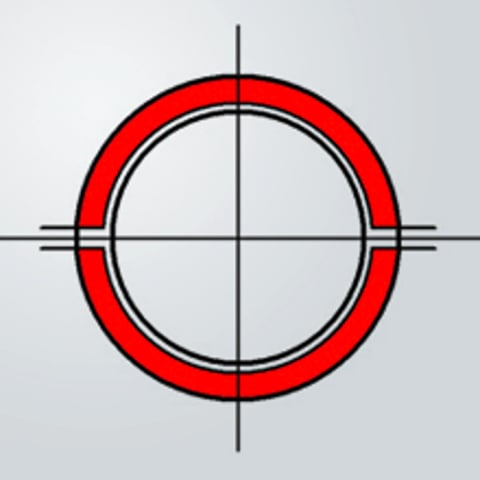

Two pairs of blades cut parallel into the insulation, and remove it with a separating movement

Wire stripping capacities 2.5 - 10.0 mm²

Handles with multi-component grips

Length stop easily set by pressing together and sliding for accurately repeated wire stripping

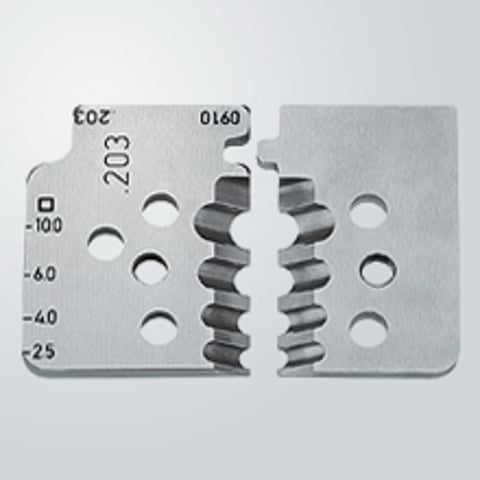

Spare set of blade available

Net weight 445 g

Knipex precision wire strippers with adapted blades

They offer good everyday benefits, even with non-everyday insulation materials that are difficult to strip.

Precision wire strippers from Knipex protect the conductor in the cable during stripping and, due to their ergonomics and range of functions, make work easier for the user.

The great benefits of the tools and their safe, comfortable use are the results of decades of experience making pliers, continuous development and Knipex’s commitment to high quality standards.

Suitable accesories

12 19 90
Length stop for 12 12 XX
KNIPEX-App installieren

All variations

12 12 02
Precision Insulation Stripper With adapted blades
181-250 mm
atramentised / lacquered / burnished
multi-component grips
0,03 – 2,08 mm²
Length: 195 mm
12 12 06
Precision Insulation Stripper With adapted blades
181-250 mm
atramentised / lacquered / burnished
multi-component grips
0,14 – 6,0 mm²
Length: 195 mm
12 12 11
Precision Insulation Stripper With adapted blades 1.5/2.5/4/6mm²
181-250 mm
atramentised / lacquered / burnished
multi-component grips
1,5 – 6,0 mm²
Length: 195 mm
12 12 12
Precision Insulation Stripper With adapted blades 4/6/10mm²
181-250 mm
atramentised / lacquered / burnished
multi-component grips
4,0 – 10,0 mm²
Length: 195 mm
12 12 13
Precision Insulation Stripper With adapted blades
181-250 mm
atramentised / lacquered / burnished
multi-component grips
Length: 195 mm
12 12 14
Precision Insulation Stripper With adapted blades
181-250 mm
atramentised / lacquered / burnished
multi-component grips
Length: 195 mm
Technical changes and errors reserved.
