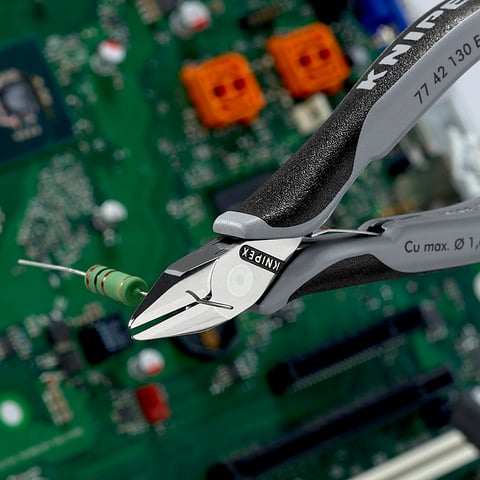

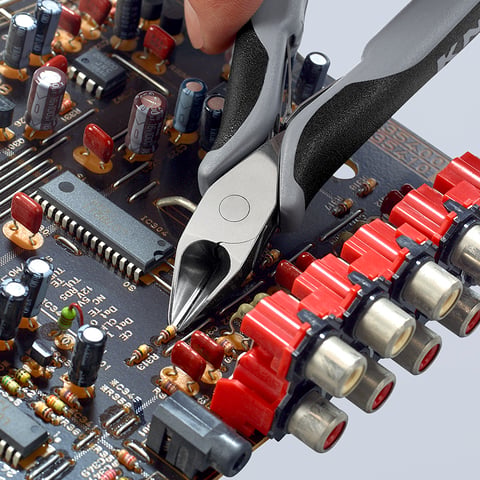

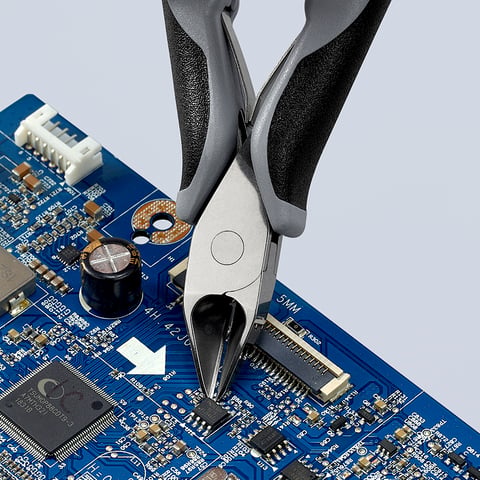

77 42 130 ESD
Electronics Diagonal Cutters ESD
With box joint
- Durable, load-optimised design with backlash-free box joint
- High, slim sleeves for fine and comfortable gripping between thumb and index finger
- Less physical effort due to very high transmission ratio
- Load-optimised for a more direct feel when working
- Low-friction double spring for smooth and even opening
- The mirror polish in combination with a fine oil film provides rust protection - no circuit faults caused by peeling chrome from plated tools
- Cutters additionally laser hardened, cutter hardness at least 62 HRC
- Pointed head, without bevel
Technical attributes
Article No.
77 42 130 ESD
EAN
4003773089216
head
mirror polished
handles
with multicomponent handles
Weight
80 g
Dimensions
130 x 69 x 17 mm
Standard
DIN ISO 9654 DIN EN 61 340-5
REACH compliant
does not contain SVHC
RoHS compliant
not applicable
Cutting capacities medium hard wire (diameter)
Ø 1.3 mm
Jaw length (B)
16.2 mm
Jaw thickness (joint) (D)
8.5 mm
Head width (A)
13 mm
Cutting edge length mm (C)
16.2 mm
ESD
yes
