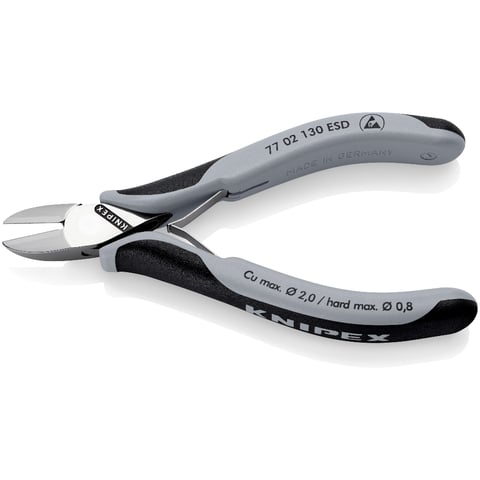

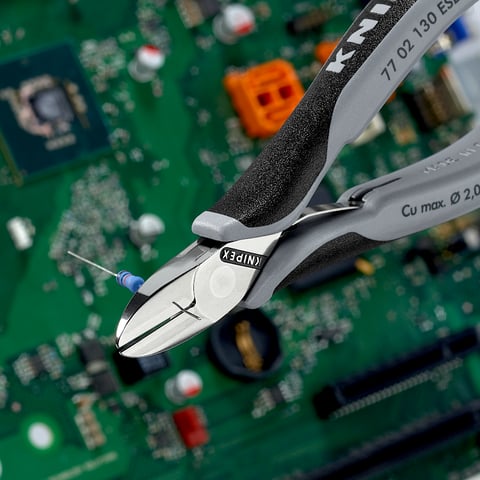

77 02 130 ESD
Electronics Diagonal Cutters ESD
With box joint

  • Durable, load-optimised design with backlash-free box joint
  • High, slim sleeves for fine and comfortable gripping between thumb and index finger
  • Electrically discharging handles - dissipative
  • Less physical effort due to very high transmission ratio
  • Load-optimised for a more direct feel when working
  • Low-friction double spring for smooth and even opening
  • The mirror polish in combination with a fine oil film provides rust protection - no circuit faults caused by peeling chrome from plated tools
  • Cutters additionally laser hardened, cutter hardness at least 62 HRC
  • Round head, with small bevel
Technical attributes
Article No.
77 02 130 ESD
EAN
4003773089209
head
mirror polished
handles
with multicomponent handles
Weight
81 g
Dimensions
130 x 50 x 18 mm
Standard
DIN ISO 9654 DIN EN 61 340-5
REACH compliant
does not contain SVHC
RoHS compliant
not applicable
Cutting capacities medium hard wire (diameter)
Ø 1.5 mm
Cutting capacities hard wire (diameter)
Ø 0.8 mm
Jaw length (B)
16.2 mm
Jaw thickness (joint) (D)
8.5 mm
Head width (A)
13 mm
Cutting edge length mm (C)
16.2 mm
ESD
yes
