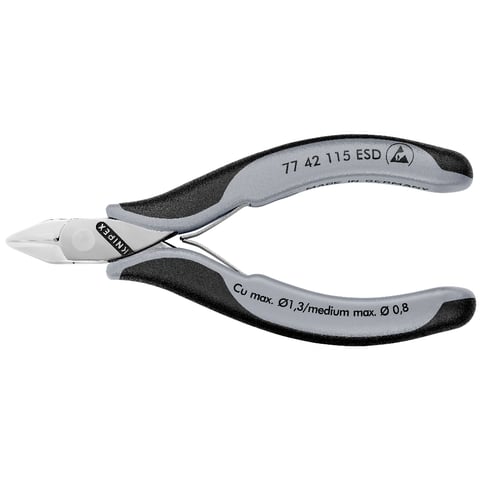

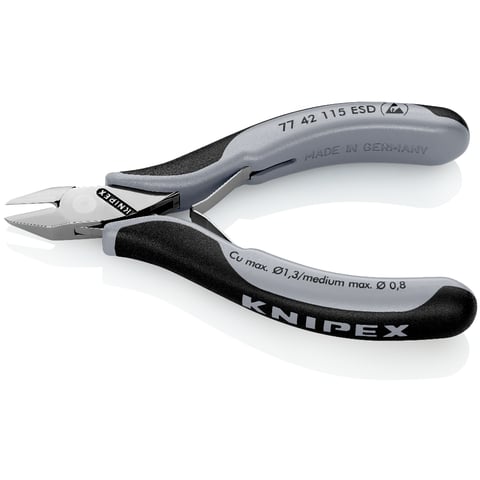

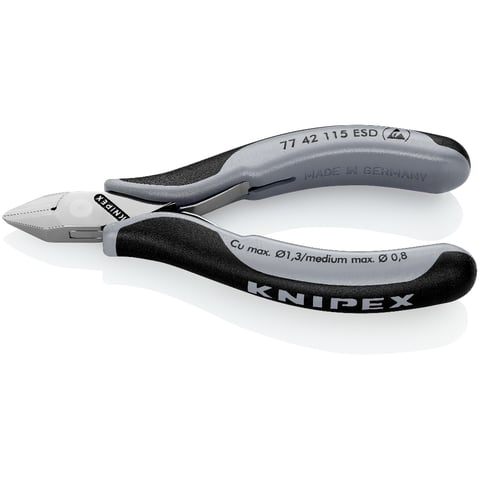

77 42 115 ESDElectronics Diagonal Cutters ESDWith box joint
- Durable, load-optimised design with backlash-free box joint
- High, slim sleeves for fine and comfortable gripping between thumb and index finger
- Less physical effort due to very high transmission ratio
- Load-optimised for a more direct feel when working
- Low-friction double spring for smooth and even opening
- The mirror polish in combination with a fine oil film provides rust protection - no circuit faults caused by peeling chrome from plated tools
- Cutters additionally laser hardened, cutter hardness at least 62 HRC

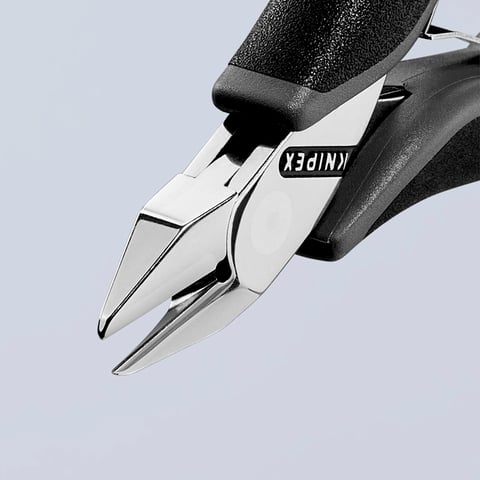

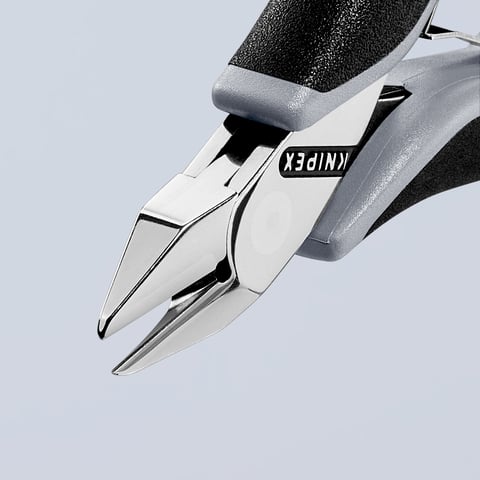

- Pointed head, without bevel
Cutting capacities medium hard wire (diameter)

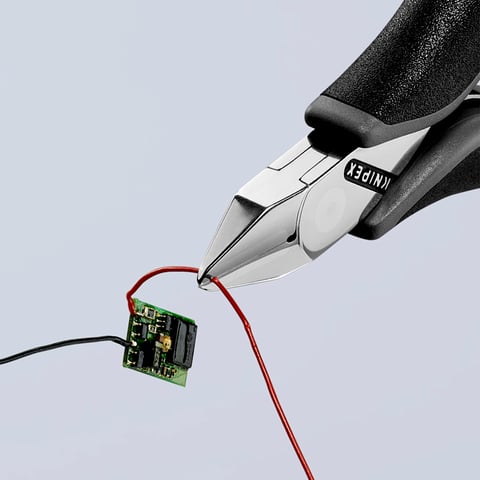

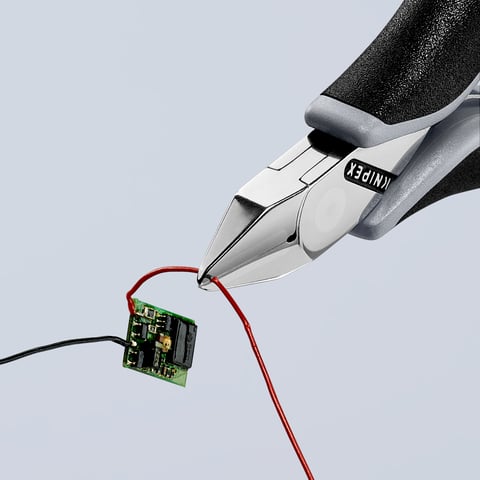

Precise cutting of fine wires and cables – even soft wires up to Ø1.3 mm
Delicate cutting; also suited for flush cutting
Unlike diagonal cutters for use in domestic installations, this electronics diagonal cutter from Knipex is a real precision tool. With a length of 115 mm and weighing 78 g, it is extremely compact and lightweight, making it ideal for confined spaces, e.g. for PCBs or precision equipment. Cutting edge hardness approx. 57 HRC it cuts soft wires up to Ø1.3 mm. The strong leverage and the relatively minimal effort required for cutting are thanks to the short pliers head. This makes it perfect for power delivery on the cutting edges and controlling manual force. Due to its design, the electronics diagonal cutter 77 42 115 ESD is unsuitable for hard wire but only for soft and medium-hard wires. As the cutting edges are not bevelled, flush cutting is possible.
Zero-backlash box joint. High cut quality and durability
The Knipex 77 42 115 ESD electronics diagonal cutter has a box joint. The inside of both pliers handles is guided. This prevents tilting. Rivets only undergo shearing stress. Result: higher-quality cutting operations, long service life. The tool is oil-hardened, while the cutting edges are induction-hardened to approx. 57 HRC.
ESD protection against electrostatic discharges; corrosion protection
Sudden discharges due to electrostatic charge differences are much feared in the electronics sector. Electronics diagonal cutter 77 42 115 H ESD discharges electrostatic charges via the handles. The corrosion protection is also safe for electronic components. Instead of chrome plating, the electronics diagonal cutter is mirror polished.
Comp. Diagonal cutters for fine cutting, e.g. in electronics/precision mechan.
Cutting values: medium-hard wire Ø0.8 mm, soft wire Ø0.3–1.3 mm
Box joint
Mirror polish plus fine oil film protect against rust
Forged, multistage oil-hardened with special quality tool steel
Cutting edges also induction-hardened, hardness approx. 57 HRC
Handles w/ ESD multi-component grips, electrostatic dissipation
Length 115mm: Net weight 78 g
Electronics diagonal cutters from Knipex – for electronics & precision equipment
Knipex offers a comprehensive range of box joint electronics diagonal cutters for applications in electronics and precision equipment. They are characterised by high precision and functionality – plus the proverbial Knipex durability.
Professionals who use tools a lot every day expect a quality that enables them to work easily and safely and that can withstand many years of tough service. Box joint Knipex electronics diagonal cutter are forged from special quality special tool steel and are carefully processed and gently heat-treated.
