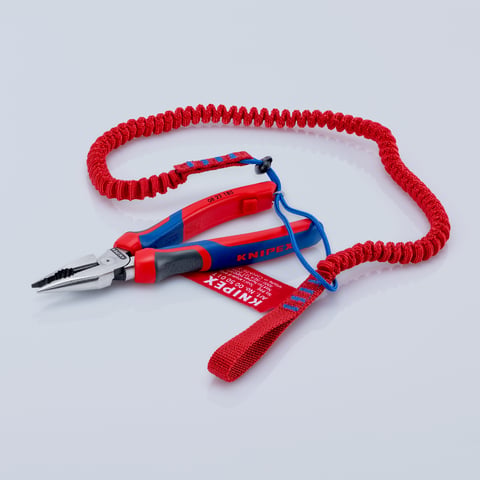

08 22 185Needle-Nose Combination Pliers
Carbon Footprint
These symbols indicate environmental performance indicators for each pair of pliers. The carbon footprint (PCF) indicates how much CO₂ is generated during the manufacture of the pliers. The PCF is calculated using the cradle-to-gate approach, which considers the life cycle of the pliers from raw material extraction to leaving our factory, with a focus on the manufacturing phase. This allows us to systematically evaluate the CO₂ emissions of a pair of pliers and identify opportunities for improvement in design, materials and production. A high recycling rate saves resources and supports the circular economy. Steel can be recycled indefinitely without any loss of quality. By using recycled steel, we improve the environmental performance of our pliers.
- Easy cutting thanks to the high leverage joint

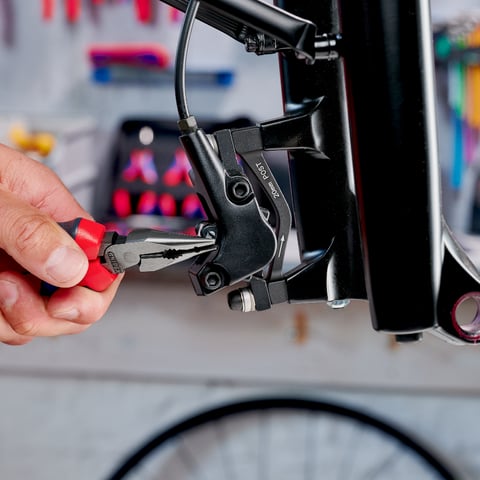

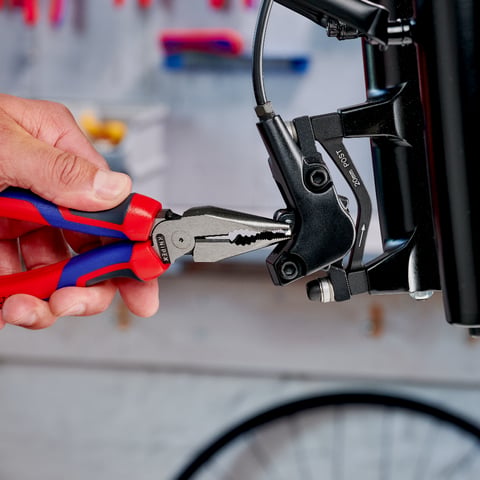

- Handy use when working in confined areas thanks to slim head design and pointed jaws (anti-twist)
- For all common installation and repair work

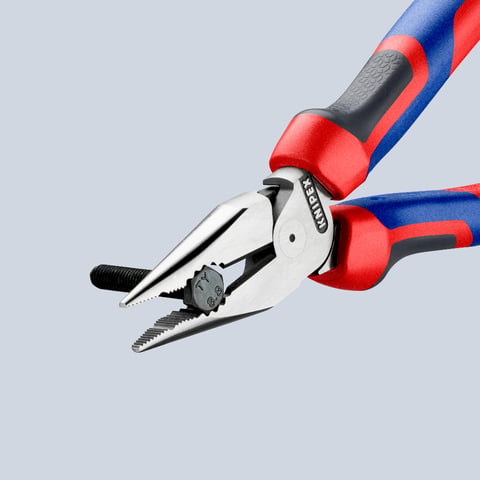

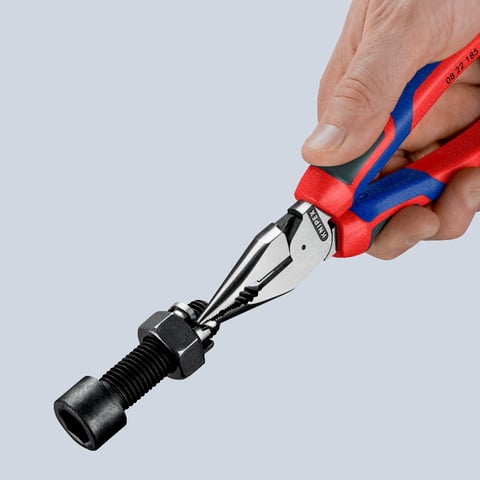

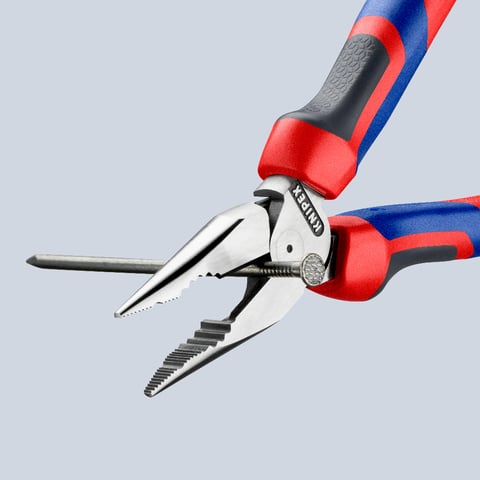

- Milled groove in the gripping area permits small parts such as nails, pins and bolts to be held and pulled
- The reliable and diverse combination pliers when out and about

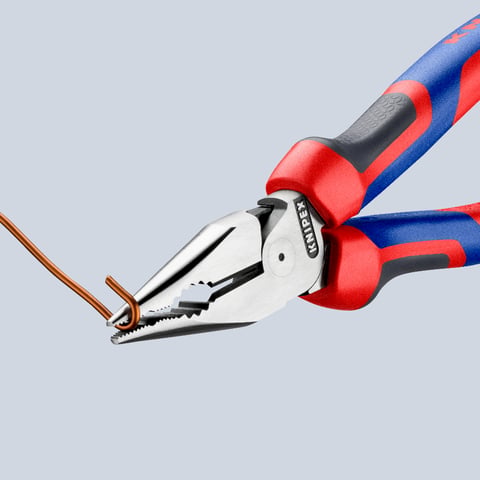

- With cutting edges for soft, medium-hard and hard wire
- Long service life and stable tips
- Cutting edges additionally induction-hardened, cutting edge hardness approx. 61 HRC

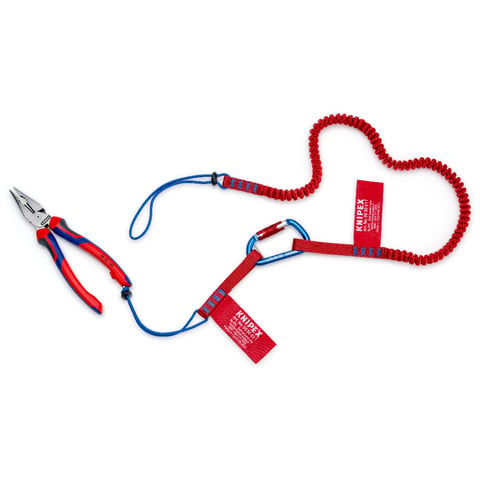

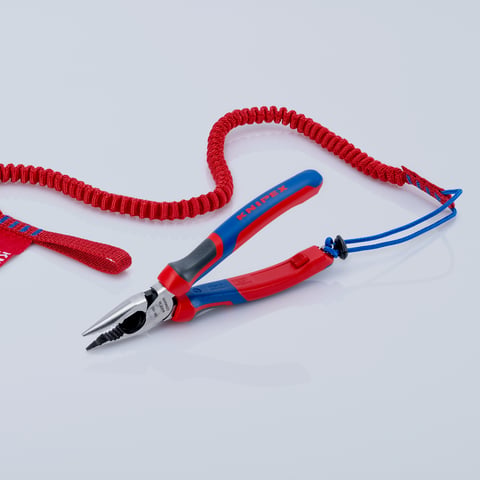

- With comfort handles made of three ergonomic components for optimised handling and with two KNIPEXtend interfaces for extensions
Technical attributes
Part No.
08 22 185
EAN
4003773088332
Pliers
black atramentized
Head
polished
Handles
with comfort handles
Weight
213 g
Dimensions
185 x 57 x 21 mm
Standard
DIN ISO 5746
REACH compliant
does not contain SVHC
RoHS compliant
not applicable
Cutting capacities medium hard wire (diameter)
Ø 3.8 mm
Cutting capacities hard wire (diameter)
Ø 3.0 mm
Cutting capacity copper cable, multiple-stranded
Ø 13.0 mm
Cutting capacity copper cable, multiple-stranded
25.0 mm²
