08 22 145

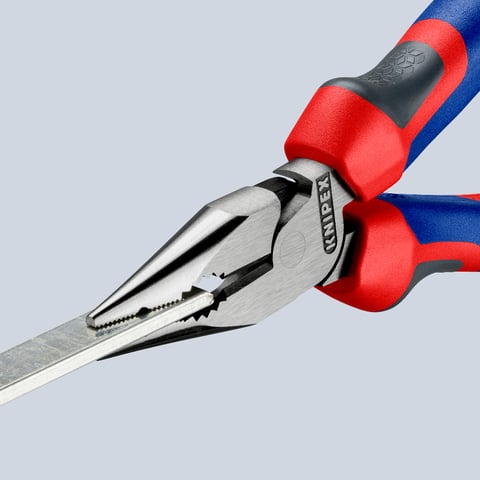

Needle-Nose Combination Pliers

cutting edges with bevel
knurled gripping surfaces
  • Small High Leverage Combination Pliers with pointed jaw
  • For all common installation and repair work.
  • Handy use when working in confined areas thanks to slim head design and pointed jaws (anti-twist)
  • Gripping surfaces with special convex contour on one side for secure gripping of flat parts
  • Milled groove in the gripping area permits small parts such as nails, pins and bolts to be held and pulled
  • The reliable and diverse combination pliers when out and about
  • Easy cutting thanks to the high leverage joint
  • With cutting edges for soft, medium-hard and hard wire
  • Cutting edges additionally induction-hardened, cutting edge hardness approx. 61 HRC
  • Long service life and stable tips
Technical attributes
Article No.
08 22 145
EAN
4003773078968
Pliers
black atramentized
Head
polished
Handles
with multi-component grips
Weight
145 g
Dimensions
145 x 58 x 18 mm
Standard
DIN ISO 5746
REACH compliant
does not contain SVHC
RoHS compliant
not applicable
Cutting capacities medium hard wire (diameter) Cutting capacities medium hard wire (diameter)
Ø 3.0 mm
Schneidwerte harter Draht (Durchmesser) Schneidwerte harter Draht (Durchmesser)
Ø 2.0 mm
Cutting capacity copper cable, multiple-stranded Cutting capacity copper cable, multiple-stranded
Ø 8.0 mm
Cutting capacity copper cable, multiple-stranded Cutting capacity copper cable, multiple-stranded
16.0 mm²
Brief overview

Cutting capacity of hard wire Ø 2.0 mm

Cutting capacity for medium-hard wire Ø 3.0 mm

Cutting capacity Cu cable, stranded: up to a diameter of 8.0 mm

Cutting capacity Cu cable, stranded: 16.0 mm²

Pliers black, phosphate-treated

Handles with multi-component grips

Net weight 145 g

All variations

08 21 145
Needle-Nose Combination Pliers
141-180 mm
atramentised / lacquered / burnished
plastic coated
Length: 145 mm
08 21 185
Needle-Nose Combination Pliers
atramentised / lacquered / burnished
plastic coated
Length: 185 mm
08 22 145 T
Needle-Nose Combination Pliers
141-180 mm
atramentised / lacquered / burnished
multi-component grips
Length: 145 mm
08 22 185
Needle-Nose Combination Pliers
atramentised / lacquered / burnished
multi-component grips
Length: 185 mm
08 25 145
Needle-Nose Combination Pliers
141-180 mm
chrome-plated / zinc-plated
multi-component grips
Length: 145 mm
08 25 185
Needle-Nose Combination Pliers
mirror polished
multi-component grips
Length: 188 mm
08 26 145
Needle-Nose Combination Pliers
141-180 mm
chrome-plated / zinc-plated
multi-component grips
Length: 145 mm
08 26 145 T
Needle-Nose Combination Pliers
141-180 mm
chrome-plated / zinc-plated
multi-component grips
Length: 145 mm
08 26 185
Needle-Nose Combination Pliers
chrome-plated / zinc-plated
multi-component grips
Length: 188 mm

Article 08 22 145 in Set

00 18 01 V01
Counter Display 10 parts
10 x 08 22 145
00 20 72 V06
Mini pliers set In belt tool pouch 1 x 08 22 145, 1 x 87 01 150
Technical changes and errors reserved.
