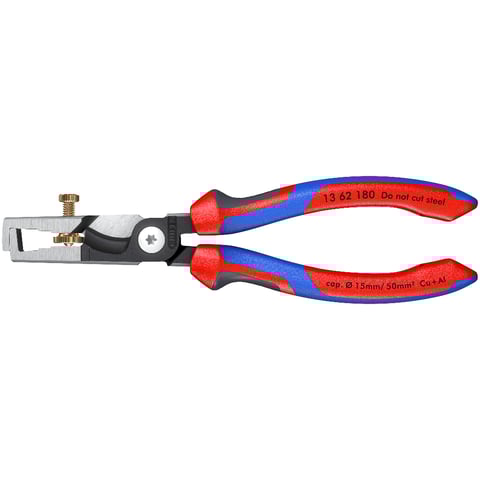

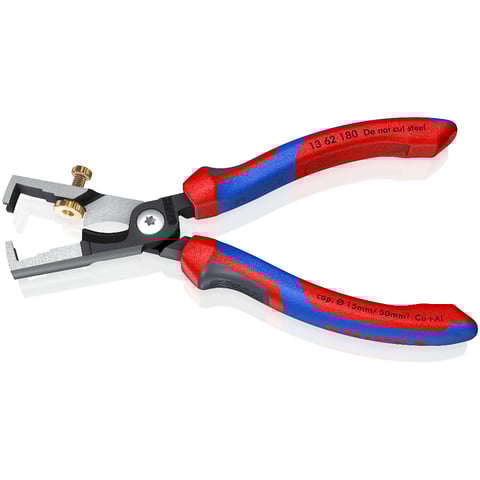

13 62 180
KNIPEX StriX®
Insulation strippers with cable shears

  • Wire stripper with cable shears – two essential electrical installation tools in one pair of pliers
  • Integrated cable shears for the clean cutting of Cu- and Al-cables without crushing up to Ø 15 mm (5 x 2,5 mm²)
  • Cutting edges additionally induction-hardened, cutting edge hardness approx. 57 HRC
  • Universal adjustment of the stripping blades by means of a knurled screw
  • Slim dimensions for easy access
  • Stripping of single-, multi- and fine stranded conductors with plastic or rubber insulation up to Ø 5 mm or 10 mm² cross-section
  • Graduated jaw provides a visual orientation aid when stripping wire in standard lengths (11 mm and 16 mm)
  • With comfort handles: consisting of three ergonomic components for optimized handling and equipped with two KNIPEXtend interfaces for extensions
Discover KNIPEXtend accessories
Technical attributes
Part No.
13 62 180
EAN
4003773081302
pliers
black atramentized
Head
polished
Handles
with comfort handles
Weight
200 g
Dimensions
180 x 51 x 20 mm
REACH compliant
does not contain SVHC
RoHS compliant
not applicable
Cutting capacity copper cable, multiple-stranded
50 mm²
Cutting capacity copper cable, multiple-stranded
Ø 15 mm
Stripping capacities in square millimetres
10.0 mm²
Stripping capacities (diametre)
Ø 5.0 mm
AWG
8
KNIPEX StriX® Insulation strippers with cable shears | 13 62 180

KNIPEX StriX® insulation stripper with cable cutter 13 62 180, black atramentised: two important tools in one

Cutting and stripping: KNIPEX StriX®, black atramentised – two indispensable tools for electrical installation in one pair of pliers

The KNIPEX StriX® is real all-rounder: It is both a conventional insulation stripper (with knurled screw and lock nut for manual and reliable adjustment of the conductor diameter), as well as a highly efficient cable cutter. As an insulation stripper, it is suitable for solid, multi-strand and fine-stranded conductors with plastic or rubber insulations up to a maximum diameter of 5 mm (approx. 10 mm² conductor cross section). The classic StriX® has undergone useful innovations: The stripping part features steps in the jaw that help when stripping constant lengths (11 mm or 16 mm). It also serves as a professional cable cutter: The cutting edge cuts copper and aluminium cables up to Ø 15 mm (5 x 2.5 mm² cable cross-section).

Long service life: faithful helper for many years

Typical KNIPEX: The StriX® insulation stripper with cable cutter is forged from special tool steel and is multi-stage oil hardened. The bolted joint ensures precise movement of the pliers without handle wobble. In other words: The KNIPEX StriX® makes work easier – for many years!

Brief overview

Versatile for single, multi-strand and fine-stranded conductors with plastic or rubber insulation

Reliably strips up to max. Ø 5 mm or 10 mm² conductor cross-section

Practical steps in the jaws as an orientation aid for stripping constant lengths

Easy adjustment to the wire or strand diameter using the knurled screw and lock nut

Non-slip shear blade for cutting copper and aluminium cables up to Ø 15 mm (5 x 2.5 mm²)

Slim design for easy access

Bolted joint: precise action with no handle wobble

High-grade special tool steel, forged, multistage oil-hardened

KNIPEX StriX® Insulation strippers with cable shears | 13 62 180

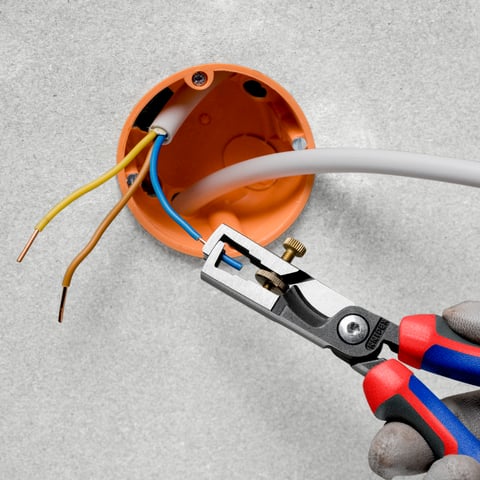

Insulation stripper with integrated cable cutter

The KNIPEX StriX® cuts cleanly without crushing and strips without damage – all in just one pair of pliers.

KNIPEX StriX® Insulation strippers with cable shears | 13 62 180

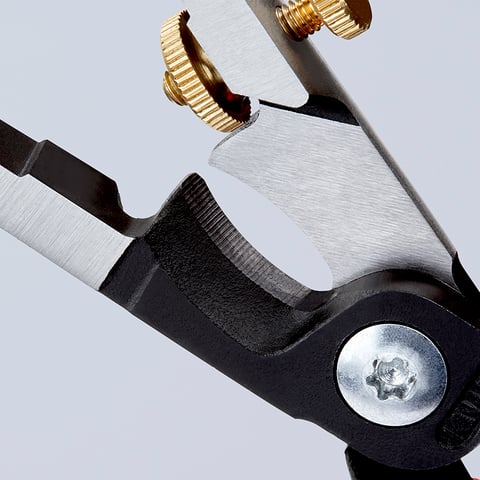

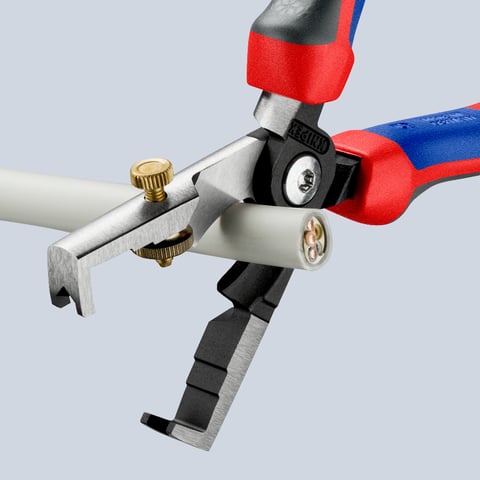

Precision cutting edges oil-hardened in several stages

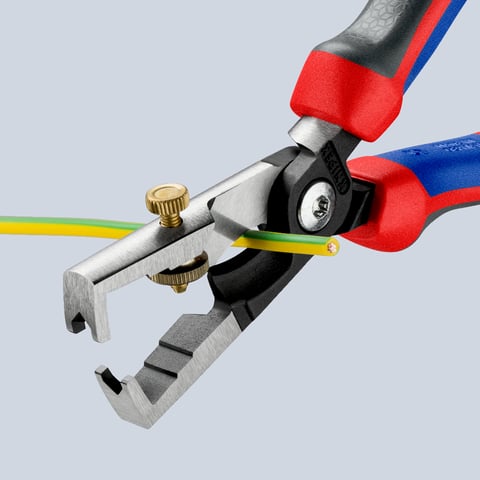

The KNIPEX StriX® shear cutter with precision edge cuts copper and aluminium cables up to Ø 15 mm (5 x 2.5mm²) without crushing and with little effort.

KNIPEX StriX® Insulation strippers with cable shears | 13 62 180

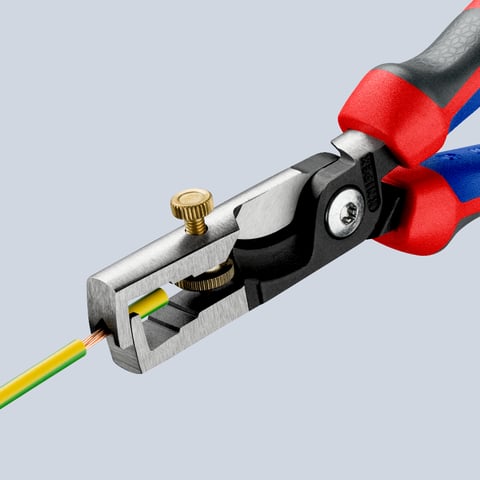

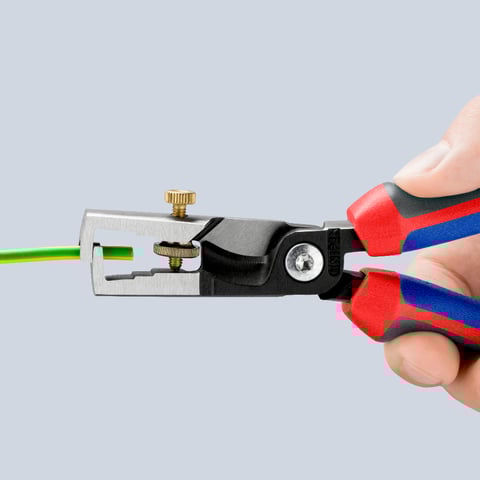

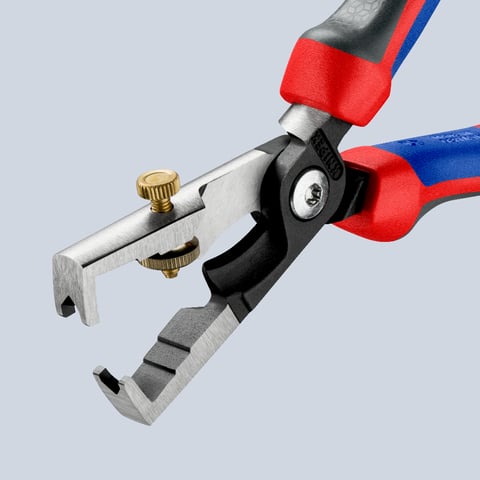

Optical orientation aid

The steps in the jaws serve as length markings and help with repeat stripping of common lengths (11 mm and 16 mm).

KNIPEX StriX® Insulation strippers with cable shears | 13 62 180

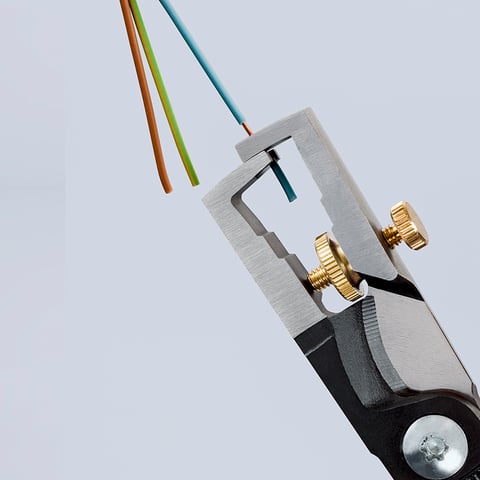

Knurled screw with lock nut

The stripping blades can be adjusted with the knurled screw (top). Locking via the lock nut (between the jaws) prevents unintentional shifting.

KNIPEX-App installieren

All variations

KNIPEX StriX® Insulation strippers with cable shears | 13 66 180
13 66 180
KNIPEX StriX® Insulation strippers with cable shears
141-180 mm
atramentised / lacquered / burnished
multi-component grips
Ø 15 mm / 50 mm²
Length: 180 mm
KNIPEX StriX® Insulation strippers with cable shears | 13 66 180 T
13 66 180 T
KNIPEX StriX® Insulation strippers with cable shears
141-180 mm
atramentised / lacquered / burnished
multi-component grips
Ø 15 mm / 50 mm²
Length: 180 mm
