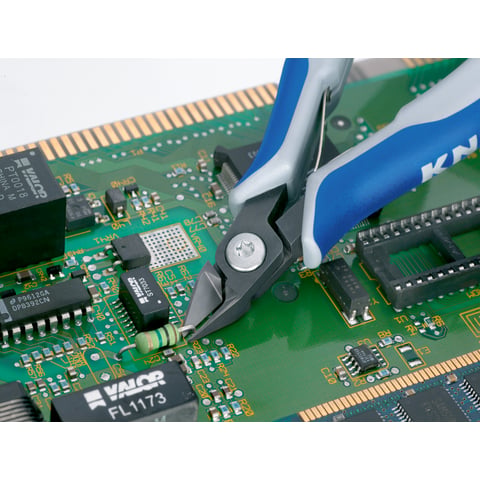

- Precision pliers for ultra fine cutting work, e. g. in electronics and fine mechanics
- Very precisely ground and sharp cutting edges with very small bevels for exact cutting on delicate electronic components; also available without bevel for flush cutting
- Cutting edges additionally induction-hardened, cutting edge hardness approx. 62 HRC
- Approx. 20% lighter than conventional electronics pliers
- Bolted joint with carefully manufactured joint surfaces for even, low-friction movement throughout the entire opening range
- Smooth-running double spring for a gentle and even opening
- Ergonomically optimised multi-component handles
- For an optimised flush cutting result of soft materials
- For installations with tight tolerances, for precise configuration of wire ends
Surgical precision
Compact dimensions and great precision

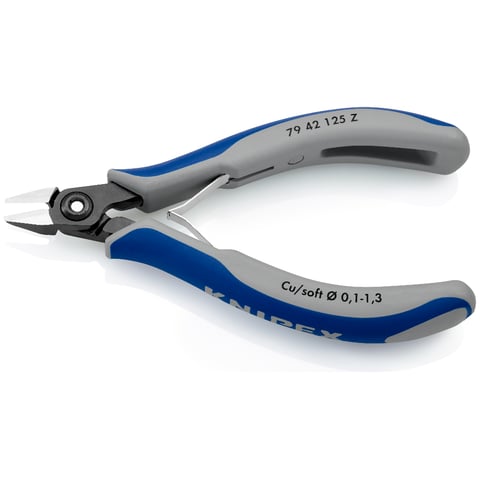

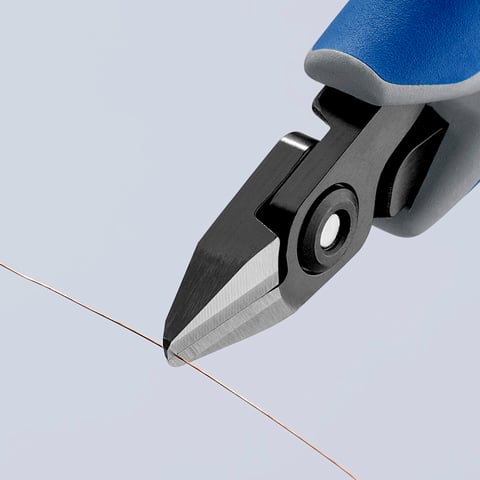

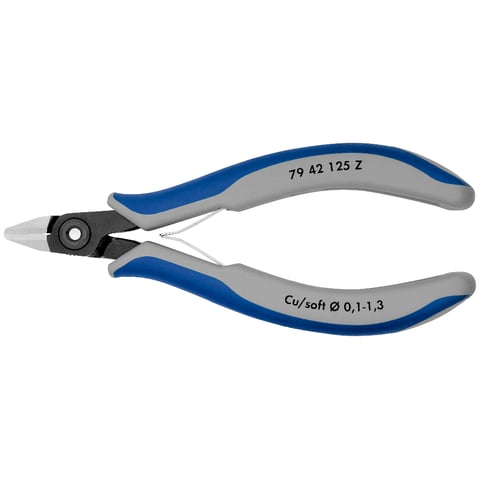

The Knipex precision electronics diagonal cutter 79 42 125 Z is a fine tool for cutting even the thinnest wires with surgical precision (from Ø0.1 mm). It was specially developed for use with narrow assembly tolerances and precise configuration of wire ends. The edge hardness of approx. 64 HRC enables it to cut soft wire up to Ø1.3 mm – thanks to the excellent workmanship with superior precision. Since the cutting edges without bevel are ground, particularly precise, even flush cutting results can be achieved (cut perpendicular to the wire). It is 125 mm long and weighs just 58 g, making it very compact and 20% lighter than other electronics diagonal cutters. The ratio of handle length to pliers head size yields strong leverage. This allows cutting operations with minimal force. Due to its design, the Knipex 79 42 125 Z is only suitable for soft wire.

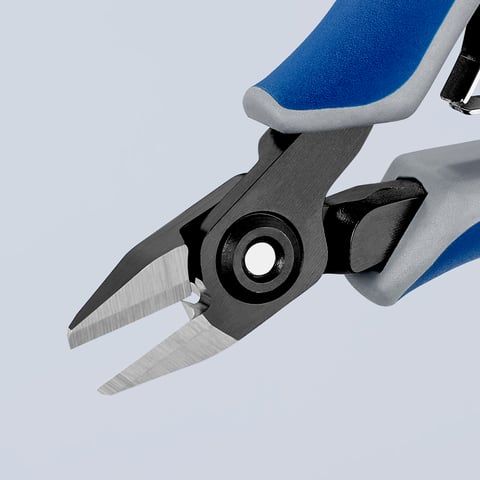

Bolted joint. High cut quality and durability
The bolted joint of the Knipex 79 42 125 Z precision electronics diagonal cutter enables high-quality cutting operations, as the cutting edges lock up and engage perfectly. The joint surfaces are carefully machined for easy operation. This leads to smooth and gentle opening after the cutting process, supported by a low-friction double spring.
High Knipex quality standards
This high-grade workmanship meets the requirements for electronics/micromechanics. Precise guidance of the lever, low-friction and extremely sharp cutting edges ensure optimum results with Knipex precision electronics diagonal cutter 79 42 125 Z. Forged from ball bearing steel with a black finish, the cutting surfaces are finely ground.
Precision electronics diagonal cutters for fine cutting
Very precisely ground, sharp cutting edges for flush cutting
Cutting values: soft wire Ø0.1–1.3 mm
Bolted precision joint.
Forged from ball-bearing steel
Cut edges induction-hardened, hardness approx. 64 HRC
Handles, multi-component grips
Length 125mm; Net weight 58 g
Precision electronics diagonal cutters – electronics, precision mechan.
Knipex offers a comprehensive range of precision electronics diagonal cutters for applications in electronics and precision equipment. They are characterised by extreme precision, smooth operation and functionality – plus the proverbial Knipex durability.
Professionals who use tools a lot every day expect a quality that enables them to work easily and safely and that can withstand many years of tough service. Precision electronics diagonal cutters from Knipex are forged from ball-bearing steel and crafted with the customary care by Knipex.
