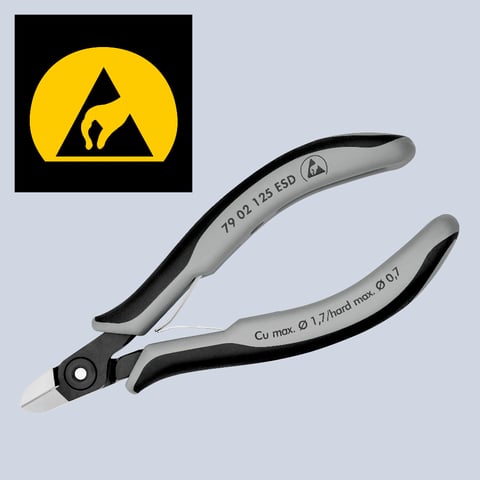

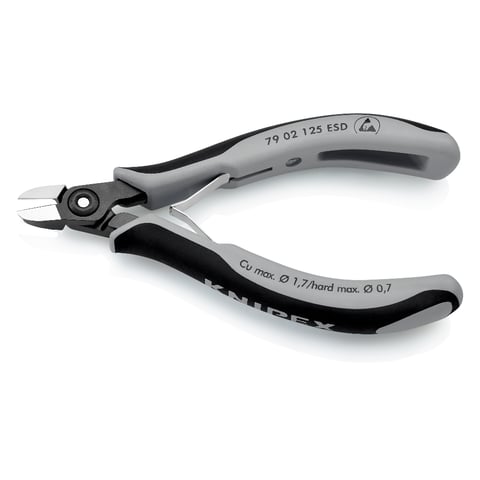

79 02 125 ESD
Precision Electronics Side Cutter ESD

  • Precision pliers for ultra fine cutting work, e. g. in electronics and fine mechanics
  • Electrically discharging handles - dissipative
  • Very precisely ground and sharp cutting edges with very small bevels for exact cutting on delicate electronic components; also available without bevel for flush cutting
  • Precision cutting edges additionally induction-hardened, cutting edge hardness approx. 64 HRC
  • Approx. 20% lighter than conventional electronics pliers
  • Bolted joint with carefully manufactured joint surfaces for even, low-friction movement throughout the entire opening range
  • Smooth-running double spring for a gentle and even opening
  • Ergonomically optimised multi-component handles
  • Round head
Technical attributes
Article No.
79 02 125 ESD
EAN
4003773061519
pliers
burnished
head
polished
handles
with multicomponent handles
Weight
61 g
Dimensions
125 x 60 x 20 mm
Standard
DIN ISO 9654 DIN EN 61 340-5
REACH compliant
does not contain SVHC
RoHS compliant
not applicable
Cutting capacities medium hard wire (diameter)
Ø 1.3 mm
Cutting capacities hard wire (diameter)
Ø 0.7 mm
Jaw length (B)
10 mm
Jaw thickness (joint) (D)
6.5 mm
Head width (A)
11 mm
ESD
yes

Precise cutting of finest wires – soft wires up to Ø1.7 mm

Compact dimensions – long-lasting large cutting capacity

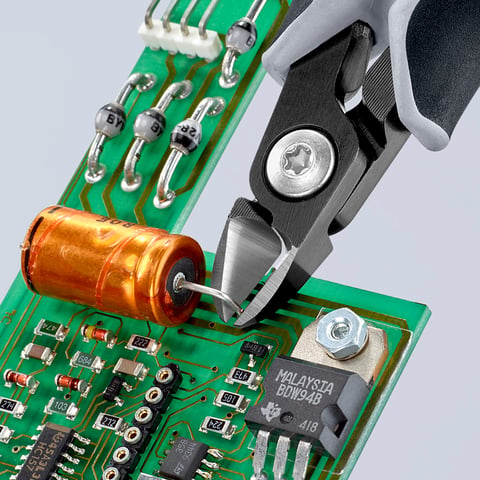

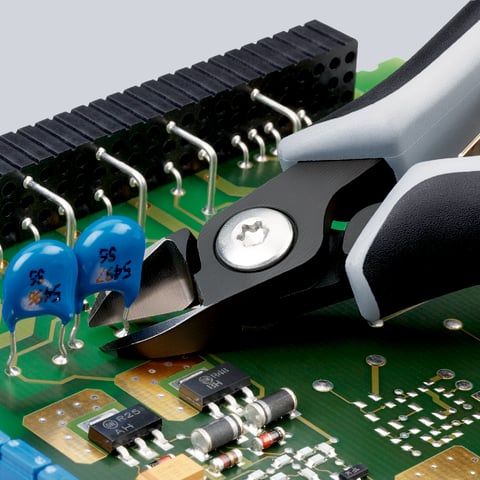

The precision electronics diagonal cutters from Knipex stand out from other electronics diagonal cutters because of their outstanding quality. They are precision tools for cutting even the finest wires with surgical precision. The Knipex 79 02 120 ESD is 125 mm long and weighs just 61 g, making it very compact and 20% lighter than other electronics diagonal cutters. These characteristics make it ideal for being carried around and for delicate work, e.g. solder contacts of electronic components. The edge hardness of approx. 64 HRC lets the Knipex 79 02 125 ESD cut soft wire up to Ø1.7 mm and hard wire up to Ø0.7 mm. Impressive figures for such compact pliers. The ratio of handle length to pliers head size yields strong leverage. The very small bevel ensures a long service life for the cutting edges and corresponding durability of the diagonal cutter.

Bolted joint. High cut quality and durability

The bolted joint of the Knipex 79 02 125 ESD precision electronics diagonal cutter enables high-quality cutting operations, as the cutting edges lock up and engage perfectly. The joint surfaces are carefully machined for easy operation. This leads to smooth and gentle opening after the cutting process, supported by a low-friction double spring.

High Knipex quality standards, ESD protection

Precise guidance of the lever, low-friction and extremely sharp cutting edges ensure optimum results in precision electronics diagonal cutter 79 02 125 ESD from Knipex. Forged from ball bearing steel, black finish, finely ground cutting surfaces. Electrostatic energy is discharged evenly via the handles. ESD protection as per current standards.

Brief overview

Precision electronics diagonal cutters with ESD protection for fine cutting

Precisely ground, sharp cutting-edges with small bevel for precise cut

Wire cutting values: medium-hard Ø1.3 mm, hard Ø0.7 mm, soft Ø0.2-1.7 mm

Bolted precision joint.

Forged from ball-bearing steel

Cut edges induction-hardened, hardness approx. 64 HRC

Handles w/ ESD multi-component grips, electrostatic dissipation

Length 125mm; Net weight 60 g

Precision electronics diagonal cutters – electronics, precision mechan.

Knipex offers a comprehensive range of precision electronics diagonal cutters for applications in electronics and precision equipment. They are characterised by extreme precision, smooth operation and functionality – plus the proverbial Knipex durability.

Professionals who use tools a lot every day expect a quality that enables them to work easily and safely and that can withstand many years of tough service. Precision electronics diagonal cutters from Knipex are forged from ball-bearing steel and crafted with the customary care by Knipex.
