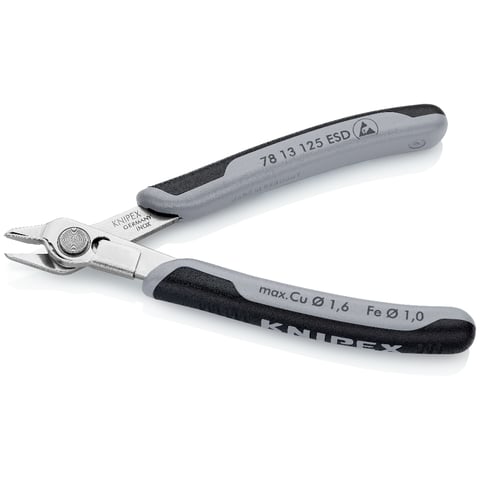

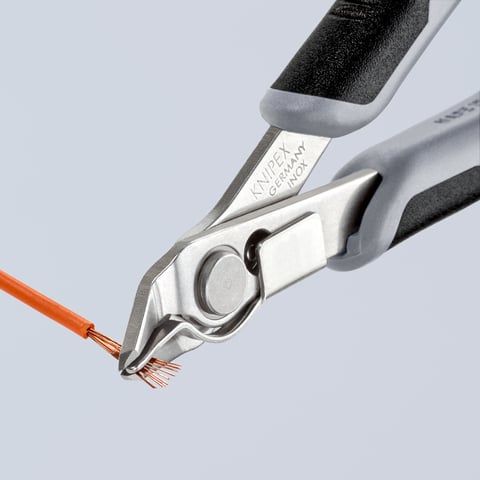

78 13 125 ESD Electronic Super Knips® ESD
- With lead catcher - no uncontrolled loss of cut wire ends
- Cutting edge hardness approx. 54 HRC
- INOX tool steel
- Precision pliers for ultra fine cutting work, e. g. in electronics and fine mechanics
- Electrically discharging handles - dissipative

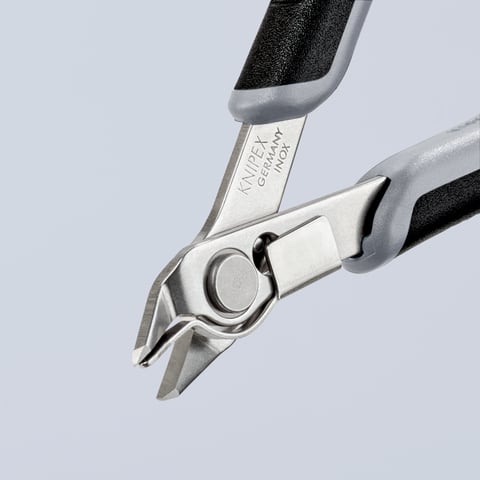

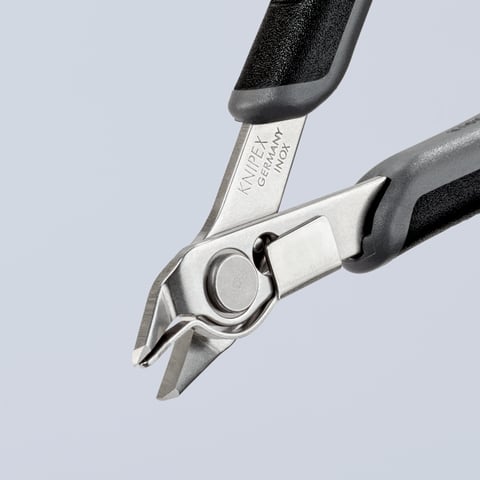

- Ground, very sharp cutting edges without bevel
- Shear cut with controlled micro cutting edge misalignment for the most precise cutting of even the thinnest of wires and for a long service life
- Precisely shaped tips cut wires close to a surface from Ø 0.2 mm
- Joint with stainless steel rivet
- Extremely smooth movement for minimum operator fatigue
- With opening spring and opening limiter
Cut abutting, fine wire accurately – ESD protection for electronics
Extremely sharp cutting edges made of stainless, air-hardened INOX steel
The Knipex Electronic Super Knips is made from surgical steel (INOX steel). The cutting edges are ground without bevel for flush cutting, creating accurate cuts with a smooth cut edge at the end of the cut material.
Thanks to the precision tips, it is also possible to cut fine wire accurately, e.g. wire touching enclosures and components.
Work involving dexterity: low weight and smooth operation
Great dexterity is needed when working on electronic components and in precision engineering. Due to its frictionless handle spring, the Knipex Electronic Super Knips 78 13 125 ESD is so smooth-running that energy can be dispensed very precisely – with dexterity. Opening spring and opening restrictor simplify work further. The integrated wire clamp prevents wire sections from springing back in an uncontrolled manner: a safety aspect, particularly when cutting wires in enclosures containing electronic assemblies.
ESD protection to prevent uncontrolled electrostatic discharge
Sudden discharge resulting from electrostatic charging differences is a concern especially in electronics. Conductive handles, which are therefore not insulating, permit a slow charge equalisation. With the Knipex 78 13 125 ESD, electrostatic energy is discharged in a constant, controlled manner via the handles. With the ESD protection through dissipative discharge, the Knipex 78 13 125 ESD Electronic Super Knips satisfies the strict standards IEC TR 61 340-5, DIN EN 61 340-5 and SP Method 2472.
Precision pliers for the finest cutting work in electronics and precision engineering: shear cut with controlled micro cutting edge misalignment

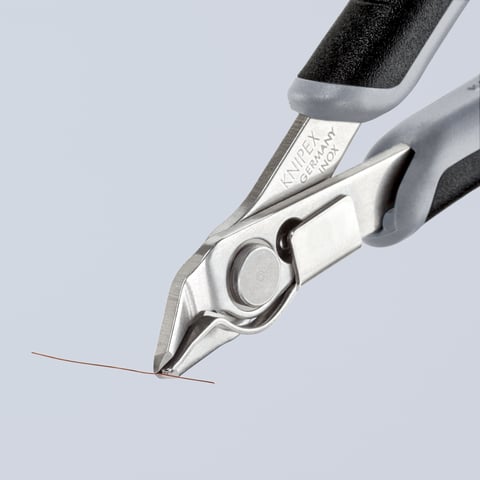

Thanks to precisely shaped tips, also cut abutting wires accurately as from Ø 0.2 mm

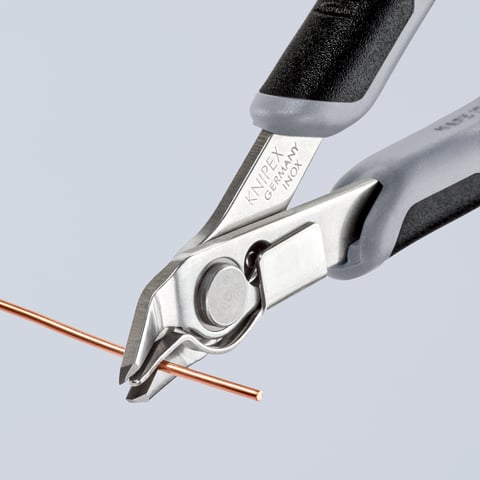

Cutting capacity of soft wire Ø 0.2 -1.6 mm
Cutting capacity for medium-hard wire Ø 1.0 mm
ESD protection of electronics through conductive multi-component grips, there is a slow, controlled discharge of electrostatic energy
Very smooth operating thanks to frictionless handle spring
Manufactured according to Knipex standards for ideal work results and a long tool life
Manufactured from stainless, air-hardened surgical steel (INOX)

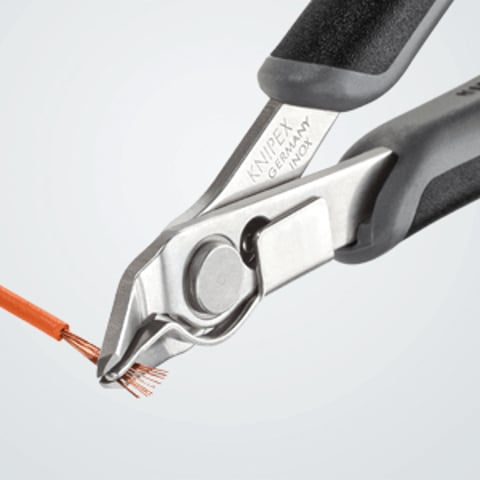

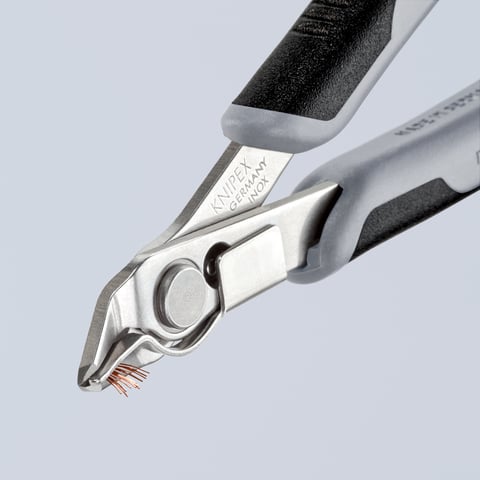

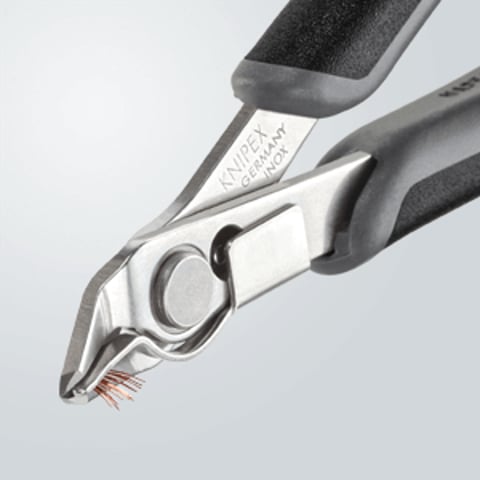

Wire clamp holds wire sections on the pliers and thereby prevents them springing back
Cutting edge hardness approx. 54 HRC
Length 125 mm
Weight 57 g
Knipex 78 13 125 ESD Electronic Super Knips: safety and quality
The Knipex Electronic Super Knips provides ESD protection conforming to standards for work on sensitive electronics, and is highly valued by radio technicians, industrial electricians, mechatronics engineers and electronics engineers.
Further arguments speak in favour of these electronics pliers: the particularly smooth operation, low weight, outstanding cutting precision and long tool life.
These advantages are the visible results of decades of toolmaking experience, continuous development and Knipex’s commitment to high quality standards: from selection of materials and machining, through to finishing.
