97 52 38
KNIPEX PreciForce
Crimping Pliers

  • Consistently high crimping quality due to precision dies and ratchet mechanism (unlockable)
  • Precise, factory calibrated crimping pressure
  • High crimping force due to efficient lever action
  • Good handling due to favourable handle position, low weight, short design and ergonomically shaped handles
  • Crimping die is not exchangeable
Technical attributes
Part No.
97 52 38
EAN
4003773051909
pliers
burnished
Handles
with multi-component handles
Weight
493 g
Dimensions
220 x 58 x 21 mm
REACH compliant
contains SVHC
RoHS compliant
not applicable
Application
insulated and non-insulated wire ferrules
Capacity in square millimetres
0.25 — 6.0 mm²
Number of crimp profiles
5
AWG
24 — 10
KNIPEX PreciForce Crimping Pliers | 97 52 38

Crimping pliers for insulated and non-insulated end sleeves 0.25 - 6.00 mm²

Precise crimping – which is why they are called Knipex PreciForce

Crimping is high-precision work. Crimp profile and crimping pressure must be precisely matched to the end sleeves (ferrules) to be crimped and the corresponding conductor to create a connection that is permanently mechanically and electrically safe and secure. All pliers in the Knipex PreciForce range impress due to their light, compact design with toggle lever reinforcement of manual force and precision crimp profile. The result: the ideal, hand-friendly amount of pressure is exerted with precision on the end sleeves being connected to the cable.

Integral lock for accurately repeated crimping

With the Knipex PreciForce, the user can work freely because the pliers do the job of measuring manual force for him. The crimping pressure of the Knipex 97 52 38 is ideally set (calibrated) in the factory to end sleeves (ferrules) with a capacity of between 0.25 and 6.0 mm². The integral lock blocks premature opening of the pliers before the set upper limit has been achieved using hand pressure. The pliers can only be opened once the optimal crimping pressure has been reached, enabling the user to concentrate completely on crimping. The integral lock can be released manually where necessary, and the user can adjust the pressure of the pliers if need be.

Accurately machined, durable crimp profiles

With the Knipex PreciForce series, every crimp application has its own version with specially machined crimp profile. One specialist pair of pliers, one application. The Knipex PreciForce is manufactured from special high-grade chrome vanadium electric steel and is oil-hardened. The Knipex PreciForce 97 52 38 is therefore a purchase that will last for a long time and for a special field of application: the crimping of non-insulated and insulated end sleeves (ferrules).

Brief overview

Crimping pliers for crimping insulated and non-insulated end sleeves (ferrules)

Capacity 0.25 – 6.0 mm²

Five crimping dies

220 mm long

Net weight 493 g

Crimping pressure accurately calibrated in the factory, and adjustable where necessary

With integral lock, release mechanism

Manufactured from high-grade chrome vanadium electric steel, oil-hardened

With multi-component grips

KNIPEX PreciForce Crimping Pliers | 97 52 38

Crimping pliers from Knipex: quality from universal through to special pliers

Knipex offers an extensive range of quality universal and special pliers for crimping. Those who use tools a lot and professionally every day expect a quality that permits simple and safe work and which lasts for many years of hard use.

We produce our tools from quality materials, machine them with great precision on up-to-date machinery, and harden them carefully using repeated heat treatment.

Every pair of Knipex pliers represents more than 130 years of specialist know-how.

KNIPEX PreciForce Crimping Pliers | 97 52 38

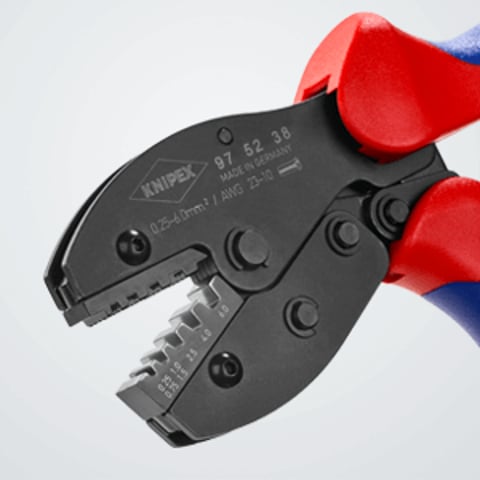

Crimping pressure accurately set (calibrated) in the factory, and adjustable.

KNIPEX PreciForce Crimping Pliers | 97 52 38

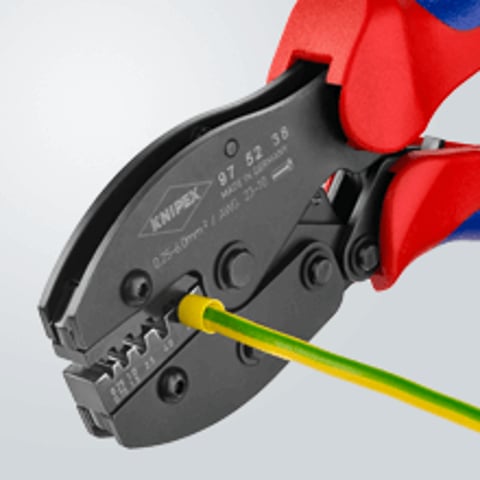

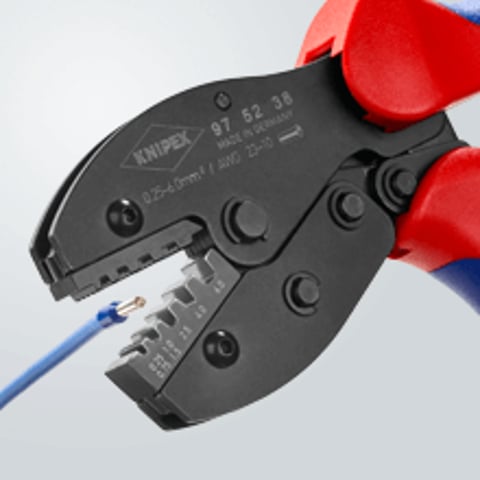

For insulated + non-insulated end sleeves (ferrules).

KNIPEX PreciForce Crimping Pliers | 97 52 38

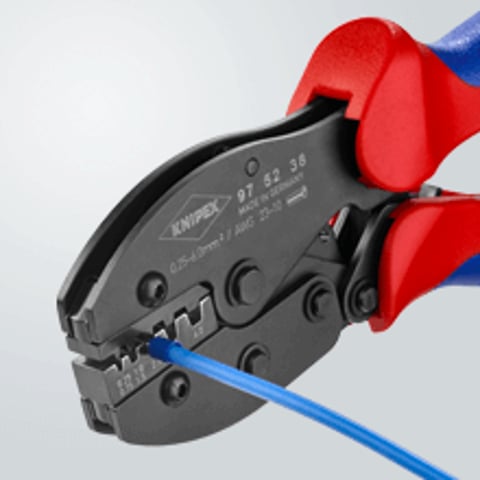

Consistently high crimp quality and integral lock with release mechanism
