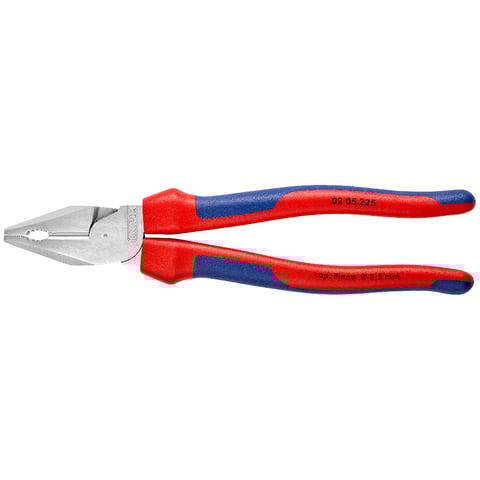

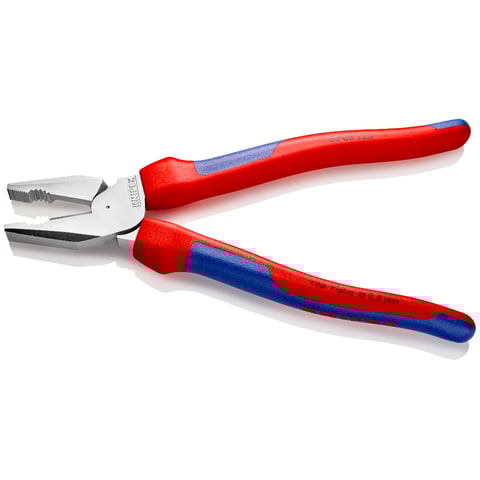

02 05 225 High Leverage Combination Pliers

  • 35 % less effort required than with conventional combination pliers
  • With cutting edges (hardness approx. 63 HRC) for heavy duty
  • Easier work due to optimised leverage

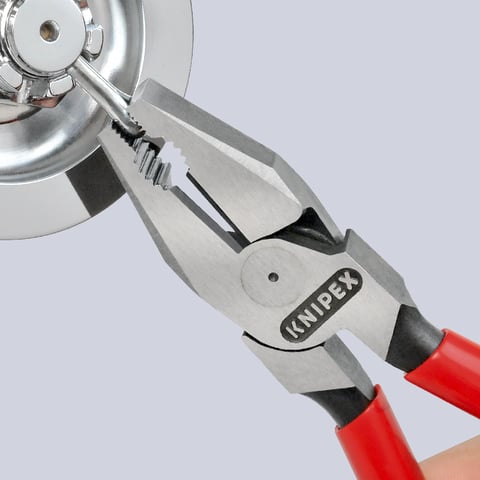

  • Easier cutting, powerful gripping, bending and pulling
  • Long cutting edges for thicker cables
  • With gripping zones for flat and round material, suitable for versatile use
  • Precise, minimal light gap between the gripping jaws to ensure optimal function of the cutting edges
  • Cutting edges additionally induction-hardened, cutting edge hardness approx. 63 HRC
  • High-grade special tool steel, forged, multi stage oil-hardened
Technical attributes
Article No.
02 05 225
EAN
4003773010005
Pliers
chrome-plated
Head
chrome-plated
Handles
with multi-component grips
Weight
410 g
Dimensions
225 x 53 x 24 mm
Standard
DIN ISO 5746
REACH compliant
no
RohS compliant
no
Cutting capacities hard wire (diameter)
Ø 3.0 mm
Cutting capacities piano wire (diameter)
Ø 2.5 mm
Cutting capacity copper cable, multiple-stranded
Ø 14.0 mm
Cutting capacity copper cable, multiple-stranded
25.0 mm²

All variations

141-180 mm
atramentized / lacquered / burnished
plastic coated
181-250 mm
atramentized / lacquered / burnished
plastic coated
181-250 mm
atramentized / lacquered / burnished
plastic coated
141-180 mm
atramentized / lacquered / burnished
Multi-component grips
181-250 mm
atramentized / lacquered / burnished
Multi-component grips
181-250 mm
atramentized / lacquered / burnished
Multi-component grips
181-250 mm
atramentized / lacquered / burnished
Multi-component grips
141-180 mm
chrome-plated / galvanized / nickel-plated
Multi-component grips
181-250 mm
chrome-plated / galvanized / nickel-plated
Multi-component grips
141-180 mm
chrome-plated / galvanized / nickel-plated
Multi-component grips
181-250 mm
chrome-plated / galvanized / nickel-plated
Multi-component grips
181-250 mm
chrome-plated / galvanized / nickel-plated
Multi-component grips
181-250 mm
chrome-plated / galvanized / nickel-plated
dip insulated
181-250 mm
chrome-plated / galvanized / nickel-plated
dip insulated
Technical changes and errors reserved.
