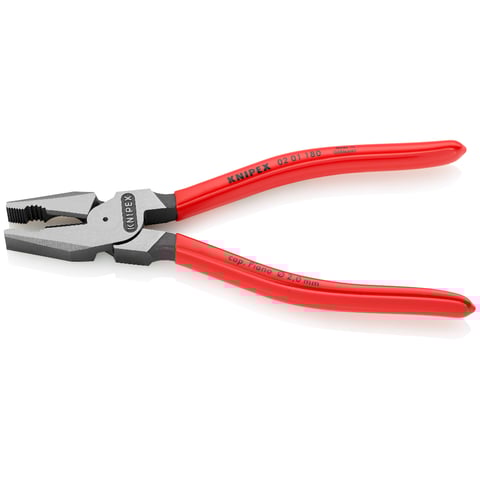

02 01 180
High Leverage Combination Pliers

  • 35% less effort required than with conventional combination pliers
  • Easier work due to optimised leverage
  • Easier cutting, powerful gripping, bending and pulling
  • Long cutting edges for thicker cables
  • With gripping zones for flat and round material, suitable for versatile use
  • Precise, minimal light gap between the gripping jaws to ensure optimal function of the cutting edges
  • Cutting edges additionally induction-hardened, cutting edge hardness approx. 63 HRC
Technical attributes
Part No.
02 01 180
EAN
4003773033134
pliers
black atramentized
Head
polished
Handles
with plastic coating
Weight
202 g
Dimensions
180 x 48 x 14 mm
Standard
DIN ISO 5746
REACH compliant
does not contain SVHC
RoHS compliant
not applicable
Cutting capacities hard wire (diameter)
Ø 2.5 mm
Cutting capacities piano wire (diameter)
Ø 2.0 mm
Cutting capacity copper cable, multiple-stranded
Ø 11.5 mm
Cutting capacity copper cable, multiple-stranded
16.0 mm²
KNIPEX-App installieren

All variations

High Leverage Combination Pliers | 02 01 200
02 01 200
High Leverage Combination Pliers
181-250 mm
atramentised / lacquered / burnished
with plastic coating
Length: 200 mm
High Leverage Combination Pliers | 02 01 225
02 01 225
High Leverage Combination Pliers
181-250 mm
atramentised / lacquered / burnished
with plastic coating
Length: 225 mm
High Leverage Combination Pliers | 02 02 180
02 02 180
High Leverage Combination Pliers
141-180 mm
atramentised / lacquered / burnished
with comfort handles
Length: 180 mm
High Leverage Combination Pliers | 02 02 200
02 02 200
High Leverage Combination Pliers
181-250 mm
atramentised / lacquered / burnished
with comfort handles
Length: 200 mm
High Leverage Combination Pliers | 02 02 225
02 02 225
High Leverage Combination Pliers
181-250 mm
atramentised / lacquered / burnished
with comfort handles
Length: 225 mm
High Leverage Combination Pliers | 02 05 180
02 05 180
High Leverage Combination Pliers
141-180 mm
chrome-plated / zinc-plated
with comfort handles
Length: 184 mm
High Leverage Combination Pliers | 02 05 200
02 05 200
High Leverage Combination Pliers
181-250 mm
chrome-plated / zinc-plated
with comfort handles
Length: 200 mm
High Leverage Combination Pliers | 02 05 225
02 05 225
High Leverage Combination Pliers
181-250 mm
chrome-plated / zinc-plated
multi-component grips
Length: 225 mm
High Leverage Combination Pliers | 02 06 180
02 06 180
High Leverage Combination Pliers
141-180 mm
chrome-plated / zinc-plated
multi-component grips
Length: 180 mm
High Leverage Combination Pliers | 02 06 200
02 06 200
High Leverage Combination Pliers
181-250 mm
chrome-plated / zinc-plated
multi-component grips
Length: 200 mm
High Leverage Combination Pliers | 02 06 225
02 06 225
High Leverage Combination Pliers
181-250 mm
chrome-plated / zinc-plated
multi-component grips
Length: 225 mm
High Leverage Combination Pliers | 02 07 225
02 07 225
High Leverage Combination Pliers
181-250 mm
chrome-plated / zinc-plated
with dipped insulation
Length: 225 mm

Article 02 01 180 in Set

Power Set 1x 02 01 180, 1x 87 01 250, 1x 74 01 160 | 00 20 10
00 20 10
Power Set 1x 02 01 180, 1x 87 01 250, 1x 74 01 160
