Knipex
Quality — Made in Germany
KNIPEX 03 01 140 Kombizange
KNIPEX 03 01 140 Kombizange
KNIPEX 03 01 140 Kombizange
KNIPEX 03 01 140 Kombizange
KNIPEX 03 01 140 Kombizange
KNIPEX 03 01 140 Kombizange

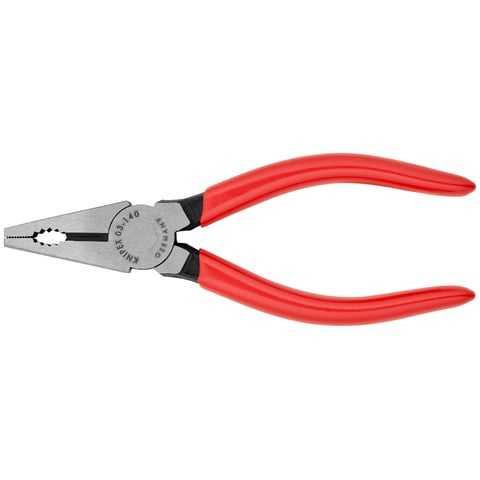

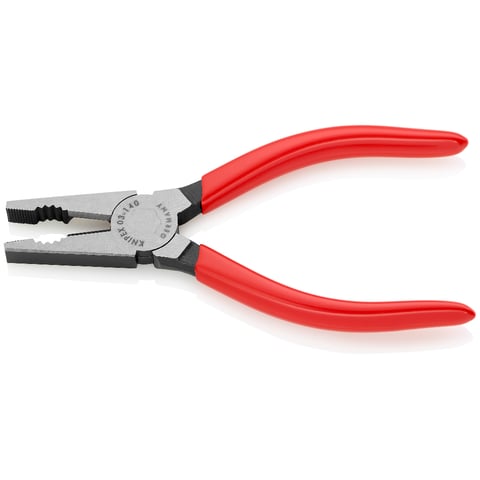

03 01 140
Combination Pliers

  • With gripping zones for flat and round material, suitable for versatile use
  • With cutting edges for soft and hard wire
  • Long cutting edges for thicker cables
  • Cutting edges additionally induction-hardened, cutting edge hardness approx. 60 HRC
  • Special tool steel, forged, multi stage oil-hardened
Technical attributes
Article No.
03 01 140
EAN
4003773015192
Pliers
black atramentized
Head
polished
Handles
plastic coated
Weight
106 g
Dimensions
140 x 50 x 12 mm
Standard
DIN ISO 5746
REACH compliant
does not contain SVHC
RoHS compliant
not applicable
Cutting capacities medium hard wire (diameter)
Ø 2.8 mm
Cutting capacities hard wire (diameter)
Ø 1.8 mm
Cutting capacity copper cable, multiple-stranded
Ø 9.0 mm
Cutting capacity copper cable, multiple-stranded
10.0 mm²

All variations

03 01 160
Combination Pliers
141-180 mm
plastic coated
Length: 160 mm
03 01 180
Combination Pliers
141-180 mm
plastic coated
Length: 180 mm
03 01 200
Combination Pliers
plastic coated
Length: 200 mm
03 01 250
Combination Pliers
plastic coated
Length: 250 mm
03 02 160
Combination Pliers
141-180 mm
Length: 160 mm
03 02 180
Combination Pliers
141-180 mm
Length: 180 mm
03 02 200
Combination Pliers
Length: 200 mm
03 05 140
Combination Pliers
100-140 mm
chrome-plated / zinc-plated / nickel-plated
Length: 140 mm
03 05 160
Combination Pliers
141-180 mm
chrome-plated / zinc-plated / nickel-plated
Length: 160 mm
03 05 180
Combination Pliers
141-180 mm
chrome-plated / zinc-plated / nickel-plated
Length: 180 mm
03 05 200
Combination Pliers
chrome-plated / zinc-plated / nickel-plated
Length: 200 mm
03 06 160
Combination Pliers
141-180 mm
chrome-plated / zinc-plated / nickel-plated
Length: 160 mm
03 06 180
Combination Pliers
141-180 mm
chrome-plated / zinc-plated / nickel-plated
Length: 180 mm
03 06 180 T
Combination Pliers
141-180 mm
chrome-plated / zinc-plated / nickel-plated
Length: 180 mm
03 06 200
Combination Pliers
chrome-plated / zinc-plated / nickel-plated
Length: 200 mm
03 07 160
Combination Pliers
141-180 mm
chrome-plated / zinc-plated / nickel-plated
with dipped insulation
Length: 160 mm
03 07 180
Combination Pliers
141-180 mm
chrome-plated / zinc-plated / nickel-plated
with dipped insulation
Length: 180 mm
03 07 200
Combination Pliers
chrome-plated / zinc-plated / nickel-plated
with dipped insulation
Length: 200 mm
03 07 250
Combination Pliers
chrome-plated / zinc-plated / nickel-plated
with dipped insulation
Length: 250 mm
Technical changes and errors reserved.
