Quality — Made in Germany

87 01 400

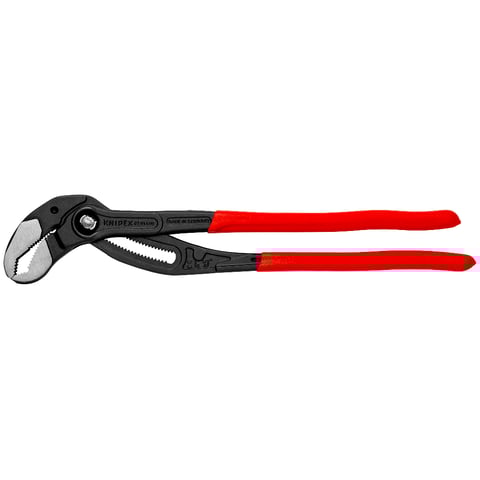

Pipe Wrench and Water Pump Pliers

knurled gripping surfaces
  • Greater gripping capacity but much lower weight than comparable pipe wrenches

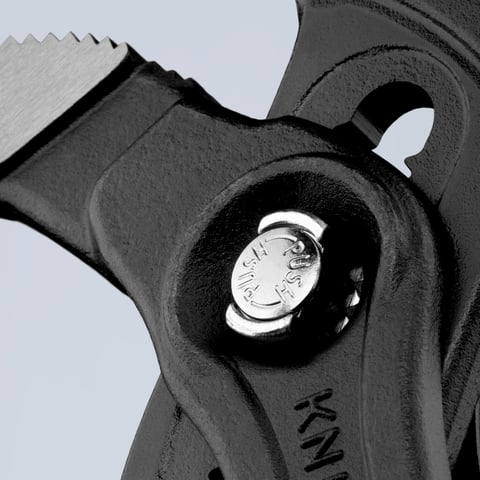

  • Fast push-button adjustment directly on the workpiece, no unintentional slipping of the joint
  • Fine adjustment for optimum adaptation to different sizes of workpieces and a comfortable handle width

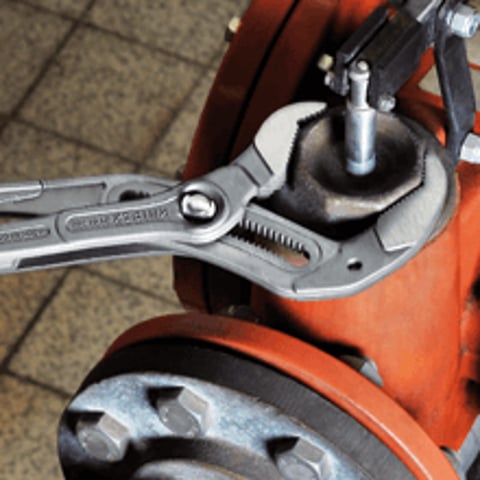

  • Self-locking on pipes and nuts: no slipping on the workpiece and low handforce required
  • Gripping surfaces with special hardened teeth, teeth hardness approx. 61 HRC: high wear resistance and stable gripping
  • Box-joint design for high stability due to double guide
  • Pinch guard prevents operators' fingers being pinched
Technical attributes
Article No.
87 01 400
grey atramentized
plastic coated
1,190 g
400 x 75 x 22 mm
DIN ISO 8976
REACH compliant
does not contain SVHC
RoHS compliant
not applicable
Adjustment positions
Kapazität für Rohre (Zoll)
Ø 3 1/2 Inch
Capacities for nuts
95 mm
Capacities for pipes (diameter)
Ø 90 mm
Brief overview

High-tech water pump pliers in XL format

Has self-locking grip on pipes and nuts

Much lower weight than other water pump pliers with this grip width (1214 g)

Grip width for pipes up to a diameter of 3 ½ inches or 90 mm and wrench opening 95 mm

27-fold fine adjustment for fast adjustment to different sizes of component

For turning, pulling, gripping, holding and screwing

Gripping teeth induction hardened to approx. 61 HRC for secure hold and long service life

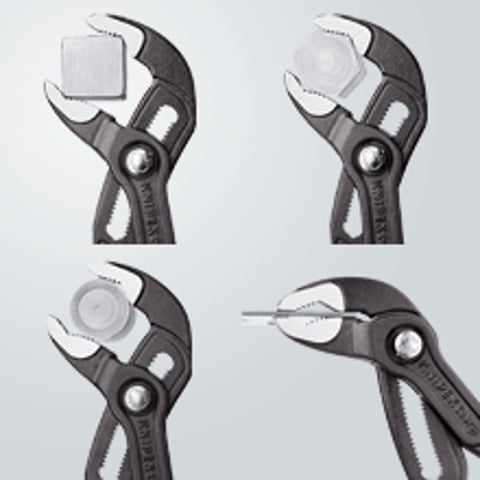

Grips pipes, nuts and flat, round and angular components

High level of user comfort due to constant hand-friendly gripping position resulting from fine adjustment

Production in accordance with the highest standards for optimal work results and a long service life

Sits firmly in the hand thanks to non-slip handles

Chrome vanadium electric steel, forged, oil hardened

All variations

87 01 560
KNIPEX Cobra® XXL Pipe Wrench and Water Pump Pliers
> 400 mm
atramentised / lacquered / burnished
plastic coated
Length: 560 mm

Article 87 01 400 in Set

00 21 19 LB S
KNIPEX L-BOXX® Plumbing 52 parts
00 21 21 HK S
Tool Case "Vision27" Plumbing 24 parts
Technical changes and errors reserved.
