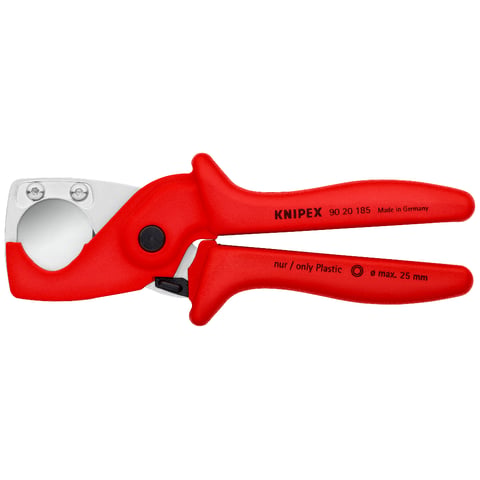

90 20 185KNIPEX PlastiCut®Schlauch- und Schutzrohrschneider
- For cutting thin-walled plastic pipe (such as plastic protective outer pipe) and plastic and rubber hose, including fabric-reinforced, up to 25 mm outer diameter
- Exchangeable blade
- With opening spring and locking device
- Ergonomically shaped handles made of glass fibre reinforced plastic
- Not suitable for cutting cables
For plastic pipes, plastic armoured pipes and hoses (also fabric reinforced)

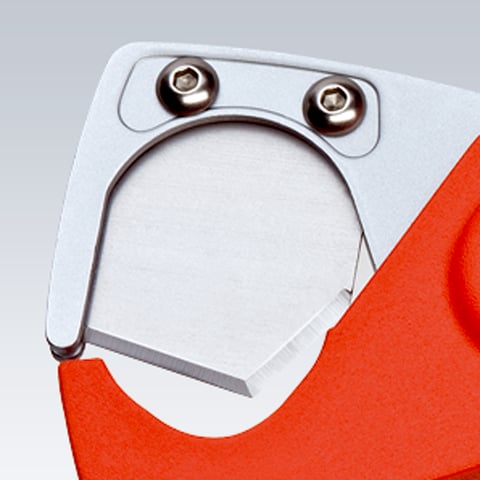

Trapezoidal blade cuts two cut edges simultaneously
Thanks to the trapezoidal shape, the blade firstly cuts wedge-shaped into the material. The manual force initially acts on the tip of the blade and, during the cutting process, follows the shape of the material in a circular (radial) way from the inside out and onto the material. This prevents distortions as can arise when cutting using a conventional shearing action with two straight cutting edges. The trapezoidal shape has other benefits:
Right-angled, clean cuts – with little physical effort

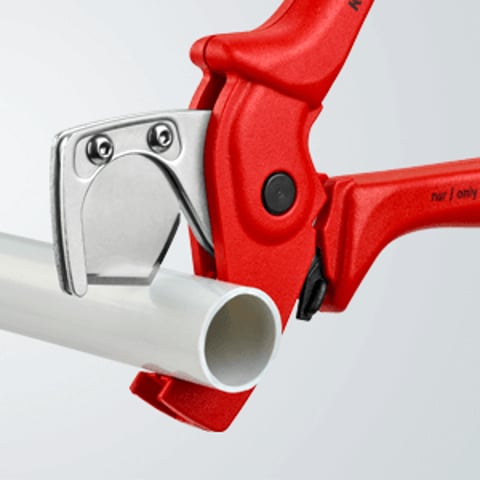

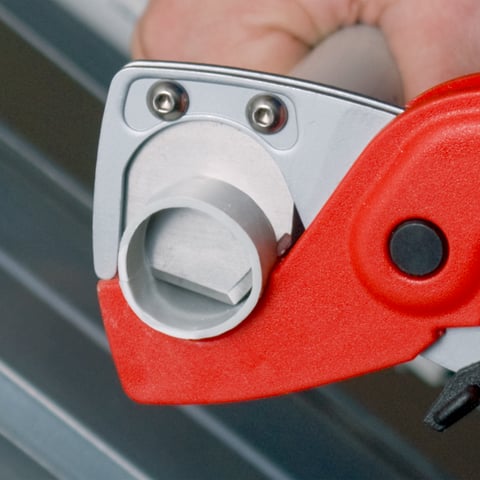

Due to the exact positioning of the material in the hose and protective pipe cutter and the wedge-shaped blade, the Knipex 90 20 185 pipe cutter automatically produces right-angled cuts. After cutting, no finishing (e.g. deburring) is required on the cut edges. Whether cutting plastic armoured pipes or fabric-reinforced hoses – e.g. for compressed air: the effort required is low due to the favourable angle of entry of the blade. Little effort is needed because the material has already been cut into.

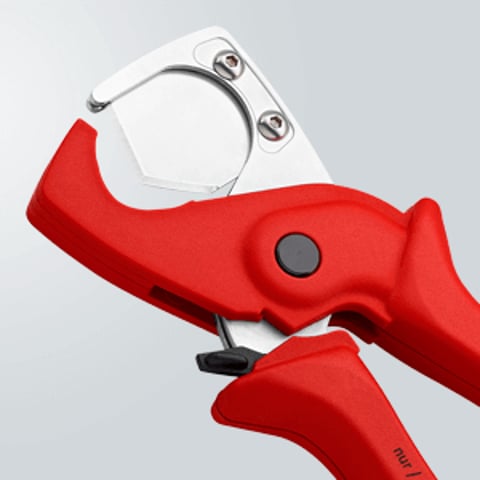

Fast, convenient work thanks to opening spring, positioning and fastening
The opening spring assumes the work of opening for the user during each cutting operation. The spring presses the handles apart and opens the shears while reducing manual force. This is a great advantage, especially during large projects with several work processes. A pawl is integrated for transport. The material to be cut is positioned and secured in the wide, half round support. The pipe cutter for hoses and protective pipes ensure the right-angled position of the material to the blade. This enables cuts to be made in quick sequence using the pipe cutter for hoses and protective pipes.
Pipe cutter for cutting thin walled plastic pipes (armoured pipes) and hoses made of soft plastics and rubber (also fabric reinforced) up to an outer diameter of 25 mm
Cutting capacity up to Ø 25.0 mm
Trapezoidal blade penetrates the centre of the material and cuts two cut edges
Little physical effort
Precise, technically perfect and cut edges free of burrs
Body of the tool made from shock-resistant, glass reinforced plastic
Replaceable blade made from special tool steel, oil-hardened
Knipex quality – pipe cutter for hoses and protective pipes
The pipe cutter from Knipex is a tool for various industries where compressed air hoses are used. Professional users expect a quality that permits simple and safe work as well as a tool that lasts for many years of hard use.
We forge our tools from quality materials, machine them with high precision on modern machinery and harden them with careful multiple stage heat treatment
Every pair of Knipex pliers represents more than 130 years of specialist know-how.
