- Optimised for pipe cutting in the tightest spaces
- QuickLock one-hand locking mechanism: independent holding and clamping on the pipe
- Fits in your pocket and cuts stainless steel
- Cuts pipes with Ø 3 – 30 mm (1/8 – 1 1/8") with wall thicknesses up to 2 mm
- Very small cutting circle: minimum space required for cutting
- Pipe diameter can be preset with the scale and clipped on to the pipe by spring-loaded cutting wheel
- Quick and precise positioning of the spring-loaded cutting wheel
- Cutting wheel and guide rollers with high-quality needle bearings

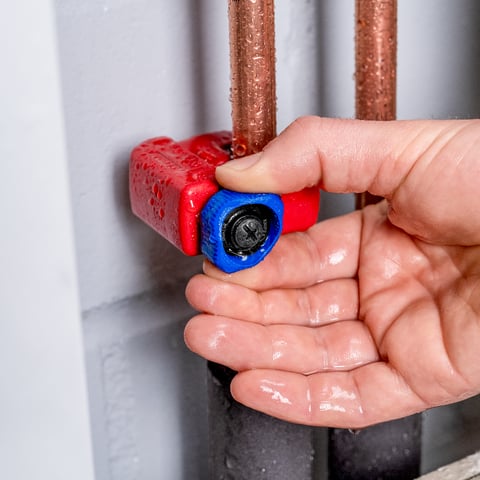

- Optimised turning knob with textured thumb recess provides 20 % higher torque and prevents slipping, even in wet conditions
- Easy to change cutting wheel, with spare wheel in the turning knob
- Cutting wheel made of high-quality ball bearing steel
The KNIPEX TubiX S for metal pipes - even stainless steel - specialises in tricky repairs in the tightest of spaces!
The Mini, measuring just 77 x 55 x 26 mm, also works in chiselled open walls or narrow shafts.
It is easy to use: the pipe diameter can be set in advance using an embossed scale. The Quicklock quick fastening system then allows accurate positioning with just one hand. The specially shaped turning knob improves transmission of force by around 20 % when adjusting, even with pointed fingers.

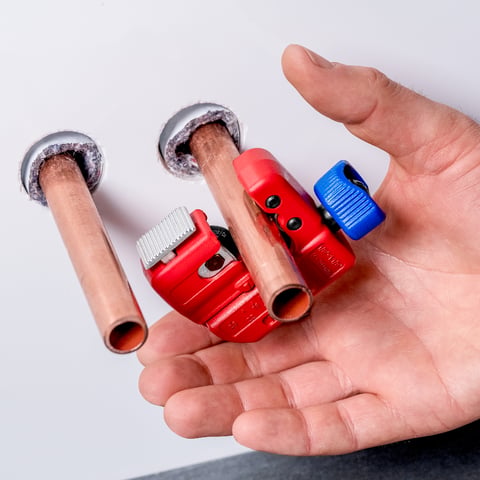

The smallest tube cutter TubiX S fits easily into your trouser pocket and is therefore always quickly at hand!

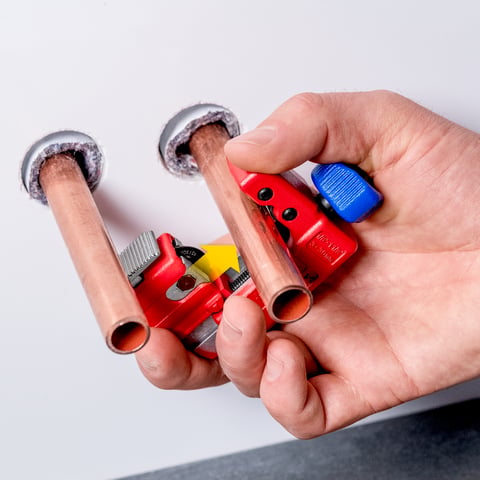

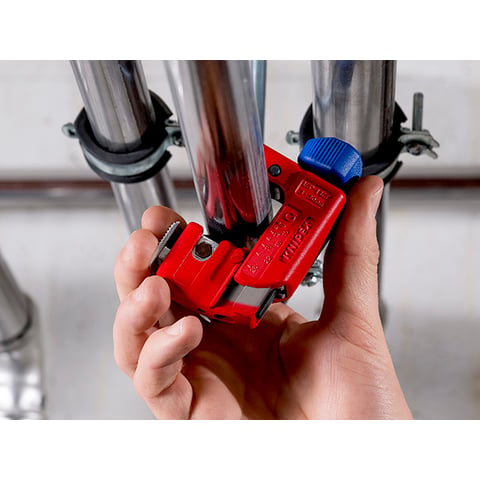

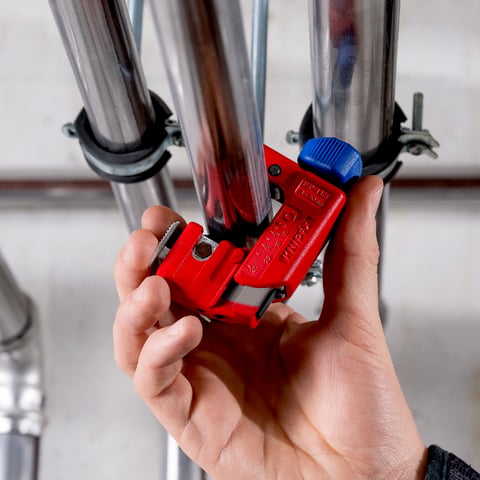

There is often not enough space to use a large pipe cutter, especially when repairing sanitary installations. This is where the small TubiX S with its very small cutting circle comes in handy. Its QuickLock locking mechanism enables holding and clamping on the pipe to be performed on one's own. Firstly, the pipe diameter can be set in advance using the scale between Ø 3 - 30 mm. The TubiX S can then be clipped onto the pipe easily and accurately thanks to its cushioned cutting wheel. Secondly, the pipe cutter can alternatively be attached to any pipe within its size range when open and simply pushed shut until the QuickLock quick fastener engages. In both cases, the TubiX S now clamps firmly to the pipe thanks to its cushioned cutting wheel and holds its position even when the cutting pressure is adjusted.

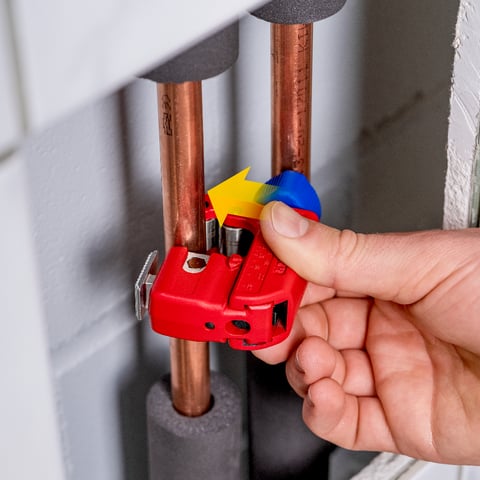

The strength of the KNIPEX TubiX S is also evident when cutting: It is shaped in such a way that it only needs a minimal distance from the wall or neighbouring pipes to be able to rotate freely. The shape-optimised rotary knob enables particularly effective adjustment and offers an approx. 20 per cent improved power transmission. The textured thumb recess prevents slipping even in wet conditions. The TubiX S for your pocket is always to hand and is suitable for tricky repairs or even small new installations.
Spare cutting wheel in the turning knob

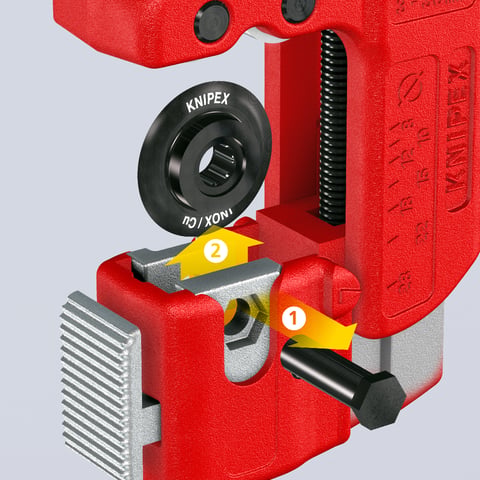

If worn, the cutting wheel can be replaced on site with the replacement in the rotary knob.

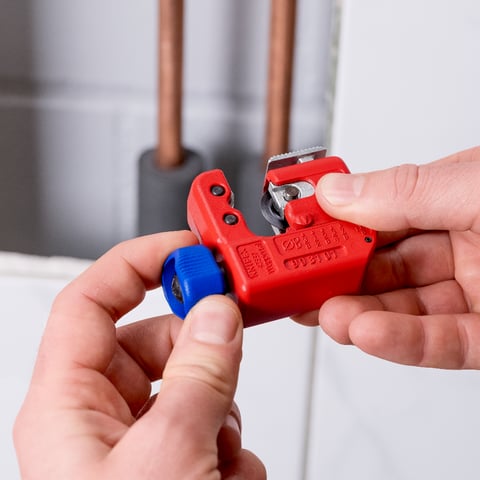

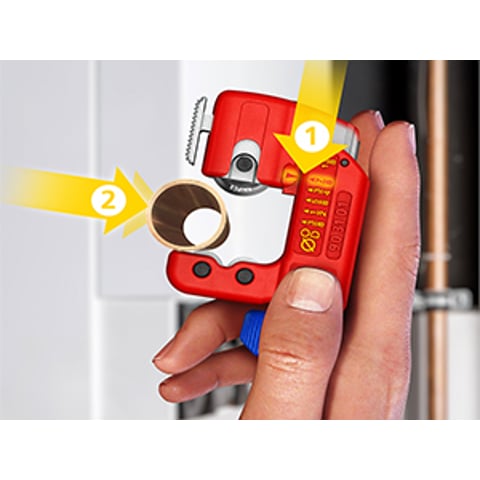

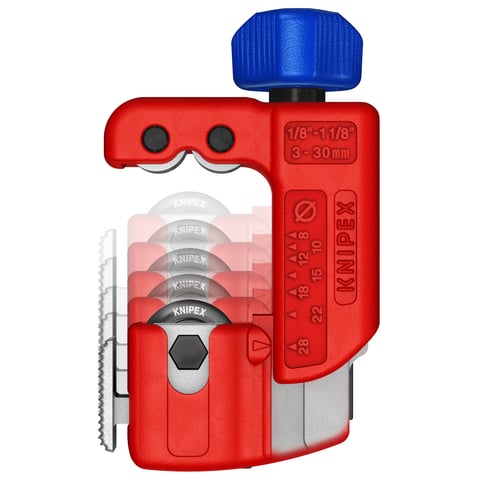

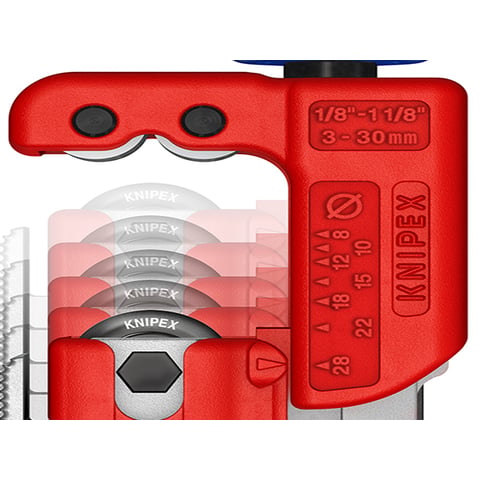

Pipe diameter can be preset
with the scale for easy clipping of the TubiX® S to avoid dropping within enclosed spaces

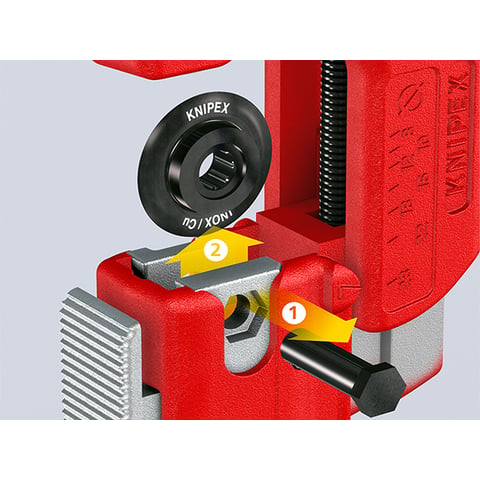

Cutting wheel

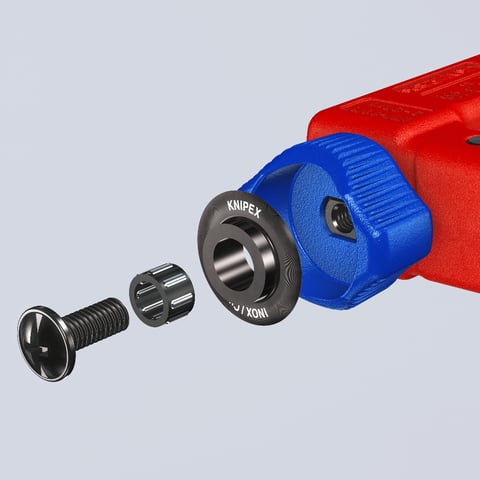

The needle-bearing cutting disc is easy to change without additional tools

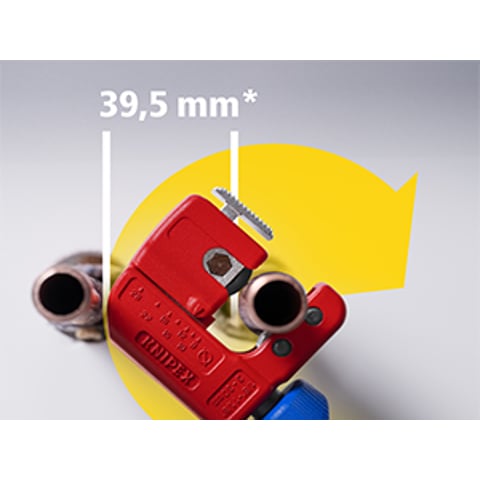

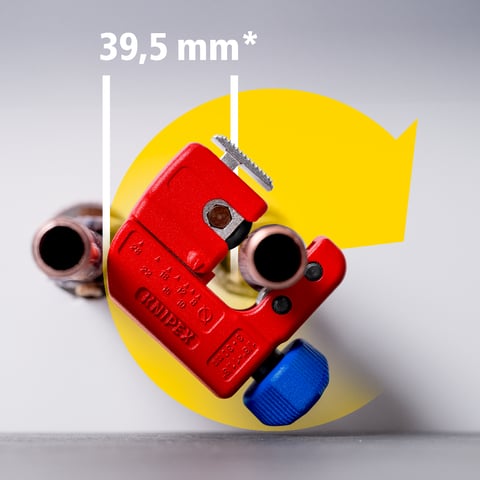

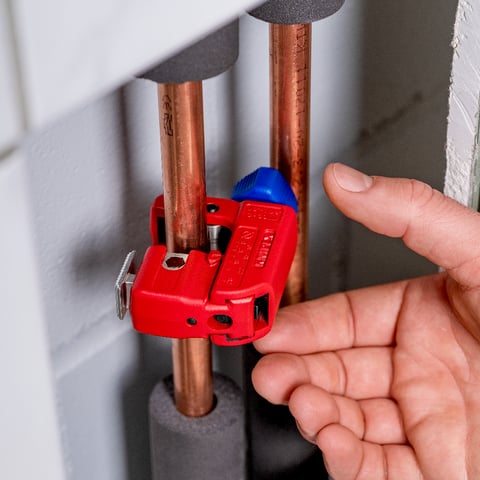

Minimised cutting circle for cutting pipes in the tightest of spaces

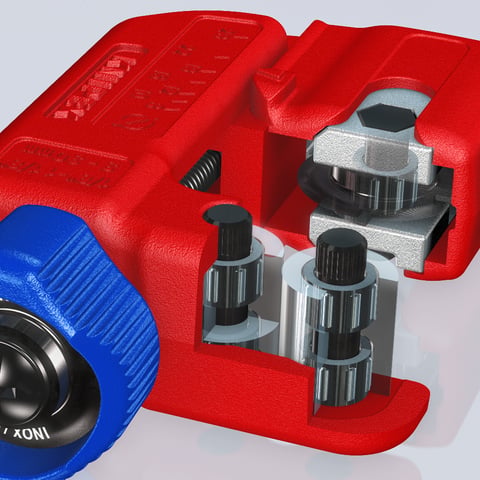

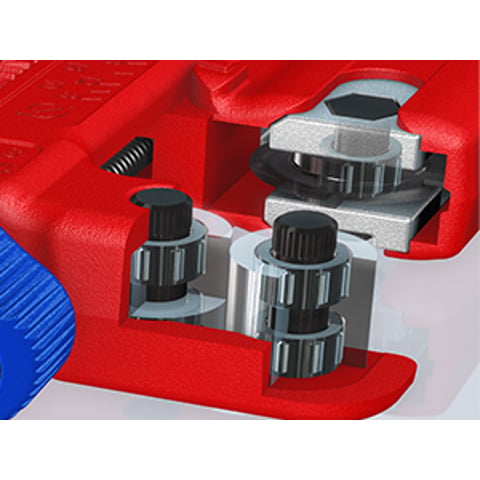

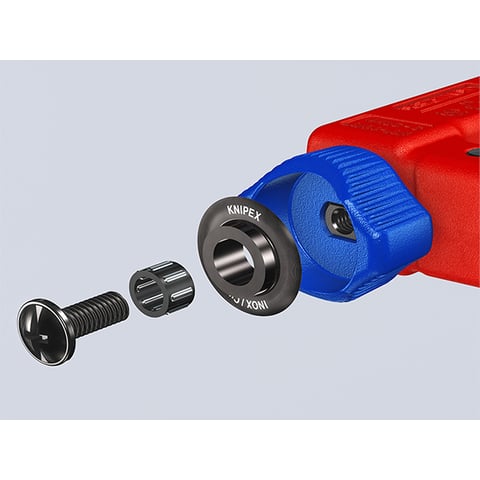

Five needle bearings for particularly light, less strenuous cutting

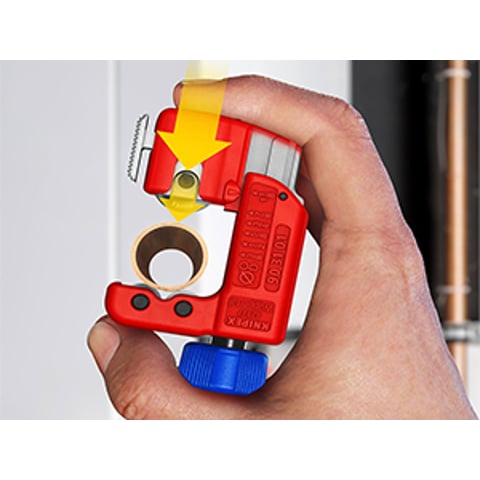

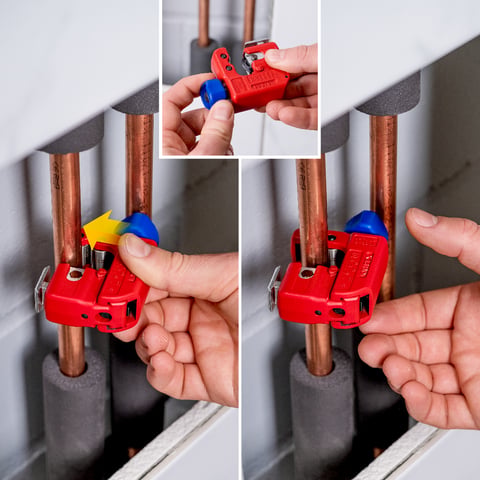

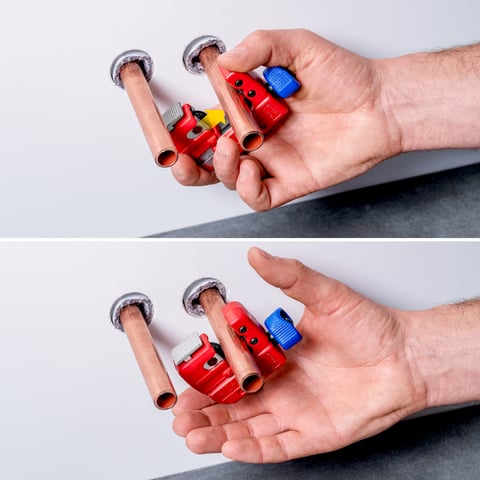

QuickLock: one-handed, quick and precise fixing to the pipe. Either by simply pushing it ...
... or presetting using the scale and clipping on with a firm hold on the pipe thanks to the spring-loaded cutting disc
