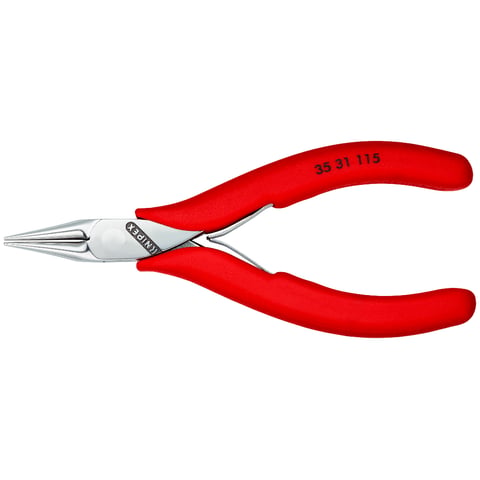

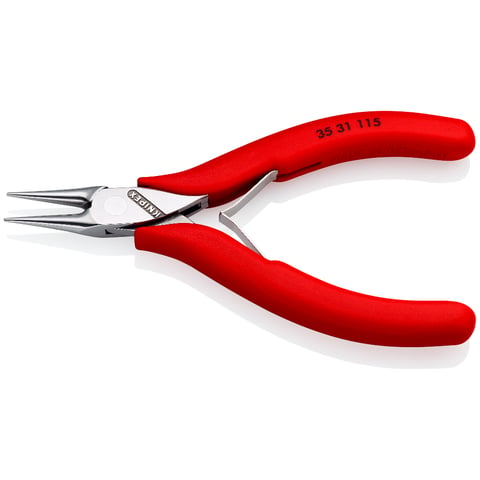

35 31 115Electronics Pliers
- Precision pliers for fine assembly work, e. g. in electronics and fine mechanics
- For gripping, holding and bending
- Sturdy, zero backlash box joint
- Smooth ground gripping surfaces
- Edges carefully deburred
- Low-friction double spring for gentle and even opening
- The polish or mirror polish together with a fine film of oil offer effective rust protection - no circuit faults caused by peeling chrome from plated tools
Small and fine: electronics pliers for fine installation work
Short, smooth and good: 115 mm long for plenty of freedom of movement even where space is restricted
Space is usually tight when working on electronic equipment, printed circuit boards and precision constructions such as measuring equipment or delicate apparatus. A compact tool which can also be used to work well even in poorly accessible areas is therefore helpful.
With a length of just 115 mm and their slim, flat head, these 35 31 115 electronics pliers from Knipex are the ideal tool for the delicate gripping, holding and bending of sensitive components.
The gripping surfaces, which are rounded at the front, are smooth ground to protect sensitive surfaces.
With box joint design and double spring – smooth operating and accurate
The smaller and more sensitive the component being worked on, the greater the challenges placed on pliers. The accurate, well-measured transmission of manual force to the component is vital. The mechanics of the Knipex 35 31 115 are very finely adjusted. The box joint is solid and smooth operating, because the inner handle is guided on both sides by the outer handle. This ensures precise running without any tilting effect. The low friction double spring supports the gentle opening of the pliers.
High Knipex quality standards and safety rust protection
The handles of the Knipex 35 31 115 electronics pliers are forged from special tool steel, oil-hardened, carefully deburred, mirror-polished and completed with opening spring and rivet to produce gripping pliers. Quality and safety are paramount – also regarding rust protection. There is no chrome-plating on the Knipex 35 31 115, so that no pieces of chrome can peel off and fall onto printed circuit boards. The mirror polish in conjunction with a fine oil film provides perfectly adequate corrosion protection for the pliers during workshop use. The pliers are always protected if the oil film is replaced occasionally.
Slender gripping pliers for delicate installation work in precision engineering and electronics
Ideal for electronics and precision engineering
For gripping, holding and bending

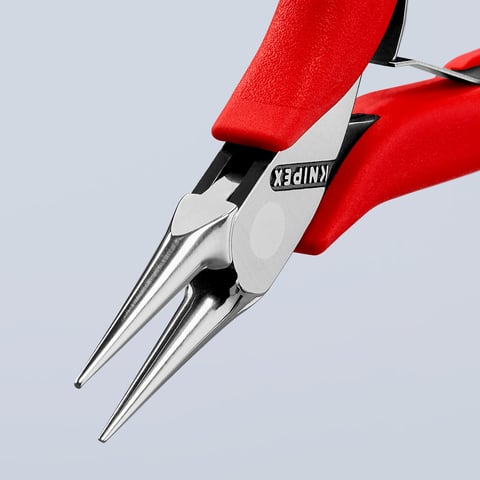

Rounded tips
Stable thanks to box joint with zero backlash
Low friction double spring for gentle and steady opening
Smooth ground gripping surfaces
Pliers mirror-polished and with a fine oil film as rust protection
Handles coated with non-slip plastic
Length 115 mm
Net weight 58 g
Hohe Knipex-Qualitätsstandards und Sicherheitsrostschutz
Die Zangenschenkel der neuen Elektronik-Greifzange Knipex 35 31 115 werden aus Spezial-Werkzeugstahl geschmiedet, ölgehärtet, sorgfältig entgratet, spiegelpoliert und mit Öffnungsfeder sowie Niet zur Greifzange komplettiert. Der Rostschutz der Zange ist für Schaltkreise unbedenklich, weil es keine Verchromung gibt. Vor Korrosion ist die Zange dank Spiegelpolitur und feinem Ölfilm gut geschützt.
Mit den präzise gearbeiteten Spitzen lassen sich kleine Federn sicher halten, spannen und zuführen.
Zudem ist die Handkraft ist feinfühlig dosierbar – ideal bei empfindlichen mechanischen Bauteilen wie kleinen Zahnrädern. Mit der Knipex 35 31 115 werden Drahtenden an Bauteilen feinfühlig gebogen.
Gentle grip and firm hold

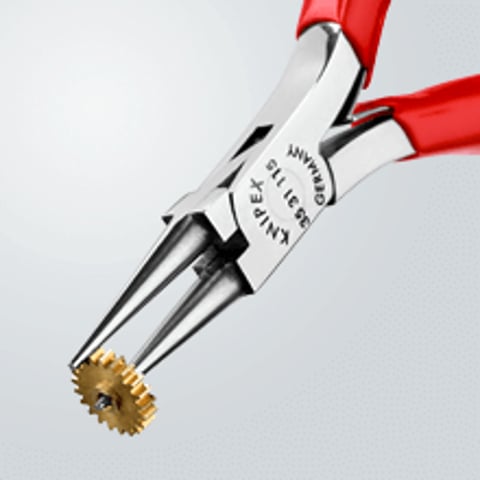

Manual force can be carefully measured – ideal for sensitive components such as small toothed wheels.
For delicate bending and cutting

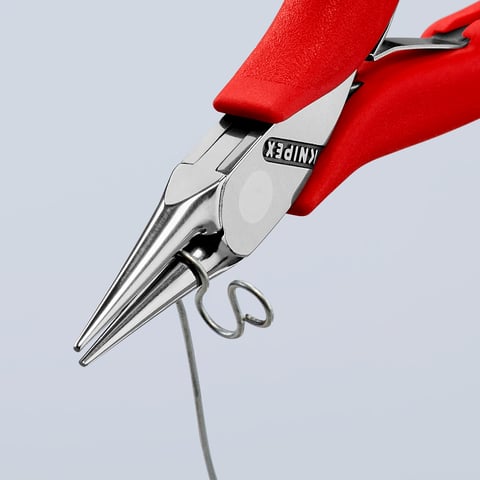

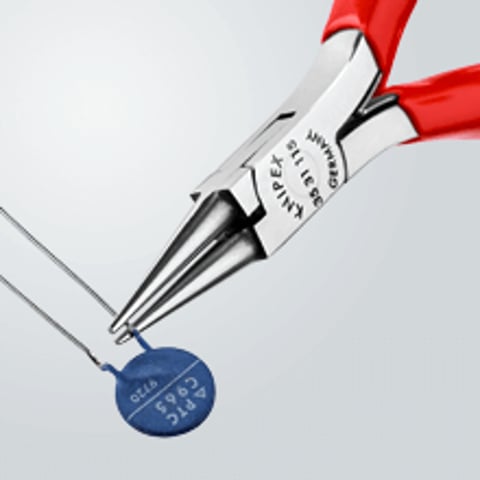

With the Knipex 35 31 115 ESD, the wire ends on components are delicately bent.
