75 52 125

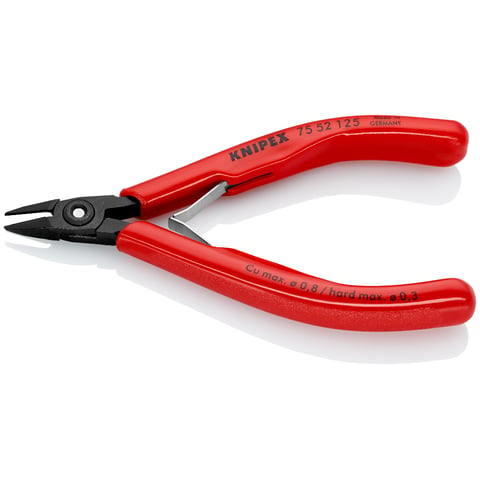

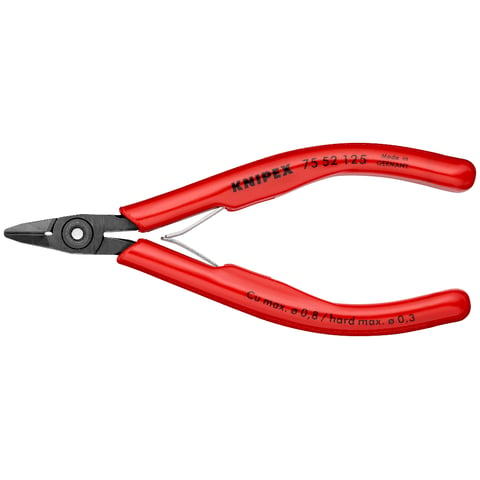

Electronics Diagonal Cutter

cutting edges with bevel
  • For ultra fine cutting work, e.g. in electronics and fine mechanics
  • With sharp, ground cutting edges for soft and hard wire and piano wire
  • Cutting edges additionally induction-hardened, cutting edge hardness approx. 62 HRC
  • Low-friction double spring for gentle and even opening
Technical attributes
Article No.
75 52 125
EAN
4003773043737
Pliers
burnished
Handles
with plastic handles
Weight
75 g
Dimensions
125 x 74 x 17 mm
Standard
DIN ISO 9654
REACH compliant
does not contain SVHC
RoHS compliant
not applicable
Cutting capacities medium hard wire (diameter) Cutting capacities medium hard wire (diameter)
Ø 0.5 mm
Schneidwerte harter Draht (Durchmesser)
Ø 0.3 mm

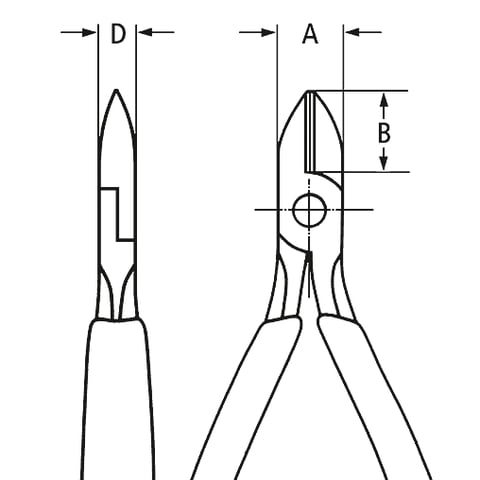

Jaw length (B)
14 mm
Jaw thickness (joint) (D)
6.5 mm
Head width (A)
10.5 mm

All variations

75 02 125
Electronics Diagonal Cutter
100-140 mm
atramentised / lacquered / burnished
One-component sleeves
Length: 125 mm
75 12 125
Electronics Diagonal Cutter
100-140 mm
atramentised / lacquered / burnished
One-component sleeves
Length: 125 mm
75 22 125
Electronics Diagonal Cutter
100-140 mm
atramentised / lacquered / burnished
One-component sleeves
Length: 125 mm
