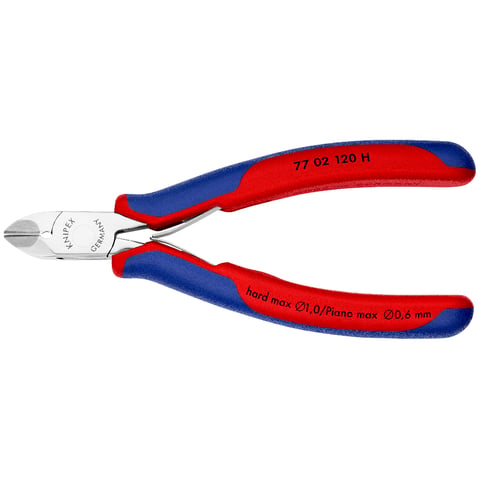

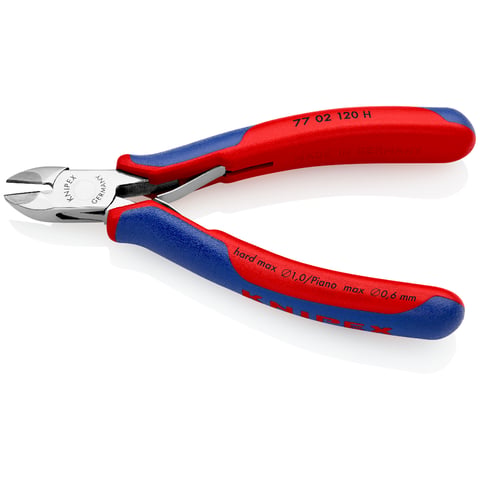

77 02 120 HElectronics Diagonal Cutter with carbide cutting edges
- For extreme demands on cutting pliers caused by hard or tough materials, e.g. piano, nickel, tungsten and diode wire, such as those used more frequently in the electronics and aerospace industries
- Always the right cutting tool, even with the hardest material
- Precision carbide metal cutting edges soldered into forged blanks
- Sturdy, zero-backlash box joint
- Hardness of the carbide cutting edges 80 – 83 HRC
- Pliers with carbide metal cutting edges have a substantially longer service life than such with conventional cutting edges
- Constantly reliable cutting results due to the avoidance of cutter deformations caused by overloading
- High cost saving due to longer service life of the pliers
Cutting capacities medium hard wire (diameter)
Cutting capacities piano wire (diameter)

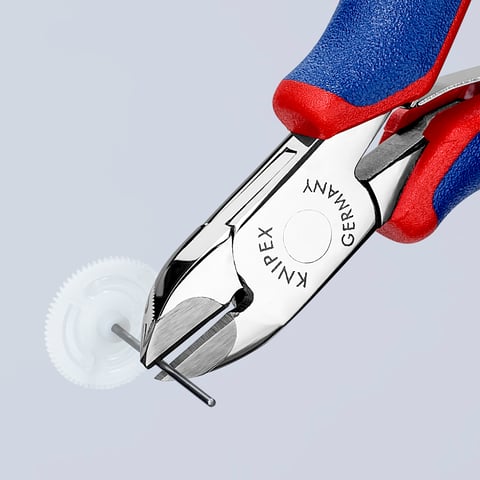

Precise cutting of hard wires – piano, nickel, tungsten or diode wires
Compact dimensions – extraordinary cutting capacity

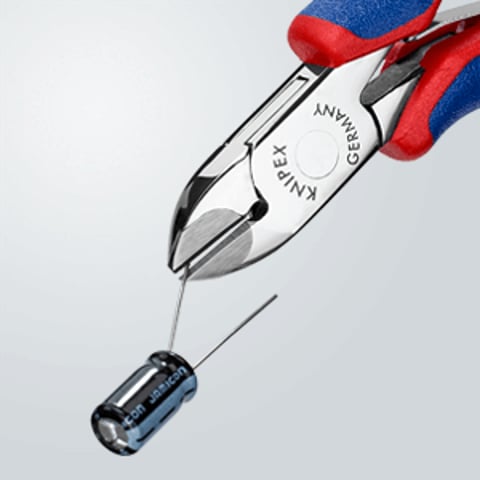

Unlike other diagonal cutters used in electronics, this electronics diagonal cutter from Knipex is a combination of a precision tool and high-performance pliers. Its precision carbide cutting edges are also suitable for particularly hard and tough types of wire. With a length of 120 mm and weighing 85 g, electronics diagonal cutter 77 02 120 H is compact and lightweight, ideal for confined spaces, e.g. for PCBs or safety casings. The short pliers head offers strong leverage. This makes it perfect for power delivery on the cutting edges and controlling manual force. An impressive cutting edge hardness of 80–83 HRC means it cuts soft wire up to Ø2.0 mm, hard wire up to Ø1.0 mm and spring steel wire (e.g. piano, nickel, tungsten and diode wire) up to Ø0.6 mm.

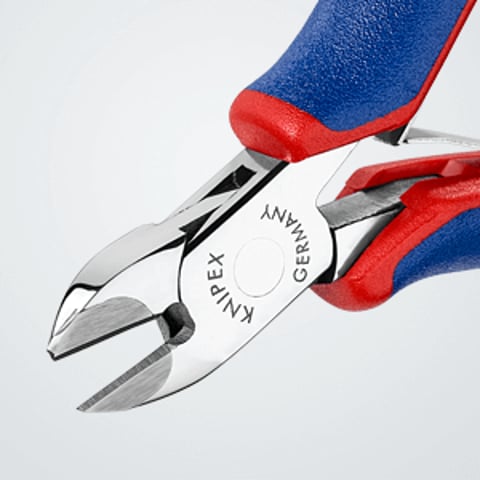

Zero-backlash box joint. High cut quality and durability
The Knipex 77 02 120 H electronics diagonal cutter has a box joint. The inside of both pliers handles is guided. This prevents tilting and rivets only undergo shearing stress. Result: higher-quality cutting operations, long service life. The carbide cutting edges exceed the hardness values typical of conventional pliers with 80–83 HRC.
High Knipex quality standards and corrosion protection

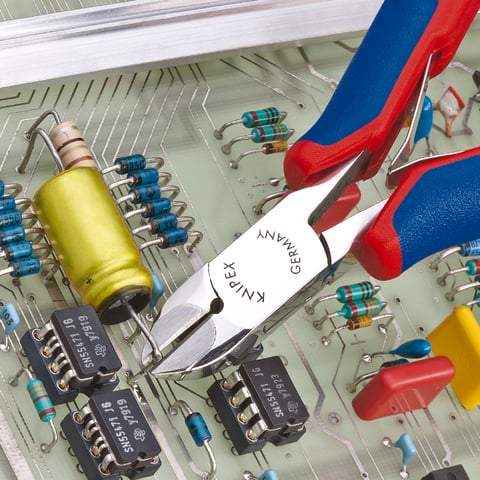

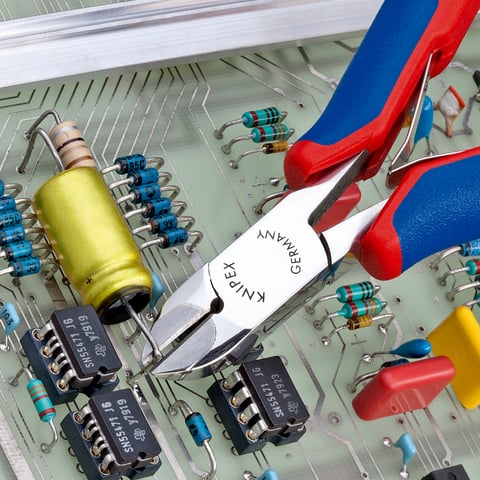

The high-grade workmanship of Knipex electronics diagonal cutter 77 02 120 H meets the requirements for electronics and precision equipment. Precision, functionality and reliability are paramount. It is ideally suited to sensitive environments, e.g. for work on PCBs. Instead of a chrome finish it is mirror polished to prevent corrosion.
Compact diagonal cutters with ESD protection e.g. in the aerospace industry.
Inset carbide cutting edges with a hardness of 80–83 HRC
Cutting values: soft Ø2.0, medium-hard Ø1.4 mm, hard Ø1.0 mm, piano Ø0.6 mm
Box joint
Mirror polish plus fine oil film protect against rust
Forged, oil-hardened with special quality special tool steel
Handles, multi-component grips
Length 120mm; Net weight 85 g
Electronics diagonal cutter "H" for high performance, e.g. aerospace industry
Knipex offers a wide range of box joint electronics diagonal cutters for applications in electronics and precision equipment and – with models using precision carbide cutting edges – also for applications such as the aerospace industry. These cutters are characterised by high precision and functionality – plus the proverbial Knipex durability.
Professionals who use tools a lot every day expect a quality that enables them to work easily and safely and that can withstand many years of tough service.
Great cutting, long service life

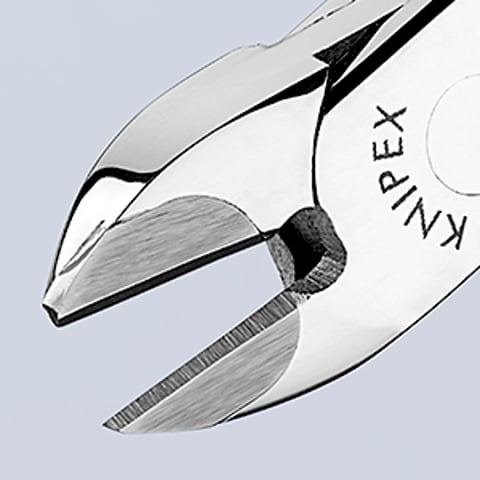

Precision carbide cutting edges (80–83 HRC) are soldered into the forged blanks.
For high industrial requirements
The Knipex 77 02 120 H electronics diagonal cutter cuts hard wire up to Ø1.0 mm – including piano, nickel, tungsten and diode wire.
