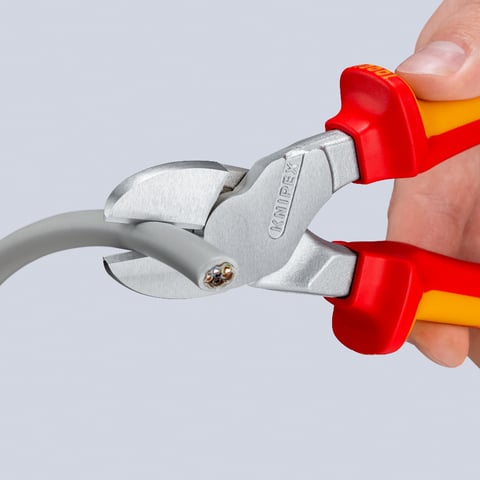

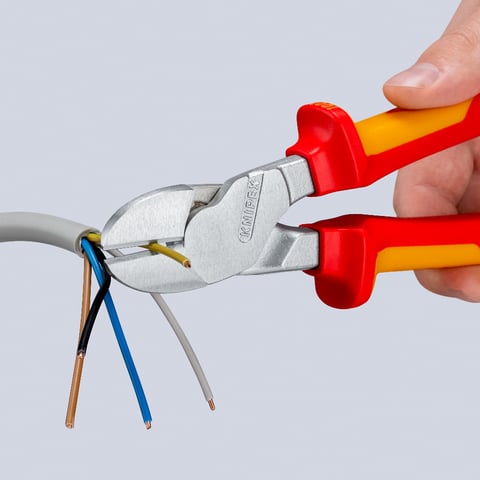

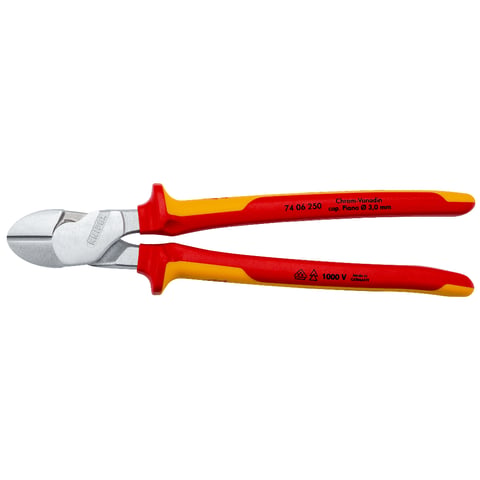

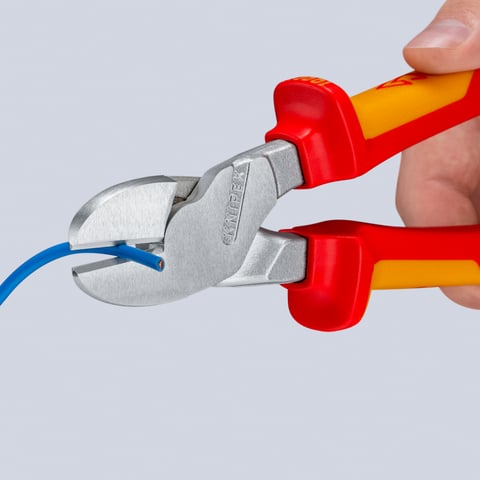

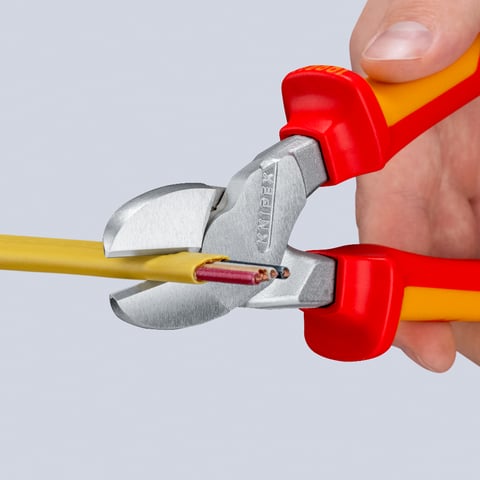

74 06 250 High Leverage Diagonal Cutter

  • For very tough, continuous use
  • High cutting performance with minimum effort due to optimum coordination of the cutting edge angle and transmission ratio
  • Precision cutting edges additionally induction-hardened (cutting edge hardness approx. 64 HRC), for all sorts of wire including piano wire
  • Chrome vanadium heavy-duty steel, forged, multi stage oil-hardened
Technical attributes
Article No.
74 06 250
EAN
4003773041955
Pliers
chrome-plated
Head
chrome-plated
Handles
insulated with multi-component grips, VDE-tested
Weight
453 g
Dimensions
250 x 63 x 22 mm
Standard
DIN ISO 5749 DIN EN 60900 IEC 60900
Reach
no
RohS
no
Cutting capacities medium hard wire (diameter)
Ø 4.6 mm
Cutting capacities hard wire (diameter)
Ø 3.5 mm
Cutting capacities piano wire (diameter)
Ø 3.0 mm
VDE tested
yes

Large high leverage diagonal cutters for hard constant use

Reliable tool for the professional user: tough and strong, insulated

Thanks to their high cutting capacity and indestructible strength, the Knipex 74 06 250 high leverage diagonal cutters are highly valued especially by craftsmen and industrial mechanics.

In the insulated version with a length of 250 mm, they are frequently used on building sites, in manufacturing and in electrical installation.

Hard materials such as piano wire up to 3.0 Ø mm and Cu conductors up to 16 mm² and Al conductors up to 35 mm² can also be cut effortlessly.

The chrome plating contributes to the durability of these high leverage diagonal cutters: as effective rust protection and as dirt-repellent layer (makes it easier to clean the tool).

Comparatively low weight, optimum geometry and a 20 % energy saving

Compared to conventional diagonal cutters of the same size, the Knipex 74 06 250 offers a much better ratio between the force required and cutting capacity.

The geometry of the cutting edges, joint and the handles have been designed for efficiency. During hard constant use, e.g. in industry, this tool is also the first choice because its ergonomic design makes work much easier for the user.

Thanks to the hand-friendly shape of the handle, the benefits of using these high leverage diagonal cutters are plain to feel and see. The insulating multi-component grips ensure added comfort.

The Knipex 74 06 250 is extremely stable due to its robust design with forged joint axle, but its weight in relation to the high cutting capacity is low at 453 g.

Brief overview

Large high leverage diagonal cutters (250 mm long) with forged joint axle

Cuts piano wire (spring steel wire) up to Ø 3.0 mm, Cu conductors up to 16 mm² and Al conductors up to 35 mm²

In relation to the cutting capacity, comparatively low weight at 453 g

Cutting edge hardness approx. 64 HRC

Production according to higher standards for optimal work results and a long service life

Sit firmly in the hand thanks to ergonomic handle design and multi-component grips

Insulated in accordance with the insulation standard IEC 60900 / DIN EN 60900

Chrome vanadium electric steel, forged, oil hardened in multiple stages and chrome-plated

Precise cutting of medium-hard and hard wire as well as piano wire

One can see how good diagonal cutters are by the cut. Knipex high leverage diagonal cutters deliver better performance. In addition to the quality forged metal parts made of high performance chrome vanadium tool steel, the most important quality criteria at Knipex include their precise machining. The sharpness and angle of the cutting edges on the Knipex 74 06 250 are designed for top performance. The excellent machining of these high leverage diagonal cutters makes sure that the material to be cut is always cut cleanly. The high quality of the tool steel produced in Germany, the hardness of the cutting edges and the forged joint axle guarantee exceptional stability and a long service life.

VDE tested, suitable for work on electrical installations (as long as the relevant safety rules have been complied with).

The precision cutting edges are additionally induction hardened.

With forged joint axle for the toughest, continuous demands.

The 250 mm long diagonal cutters can be used for Cu conductors up to 16 mm² and Al conductors up to 35 mm².
