64 12 115Electronics End Cutting Nipper
64 12 115

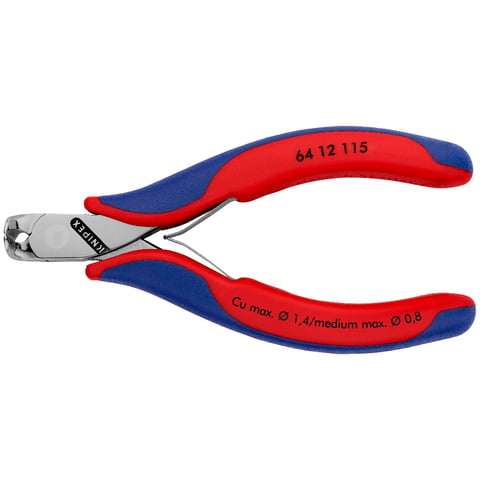

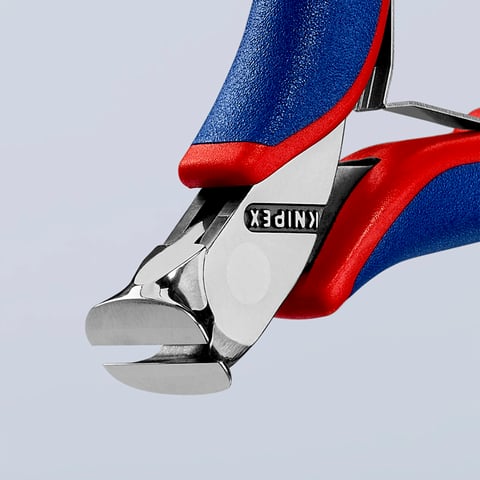

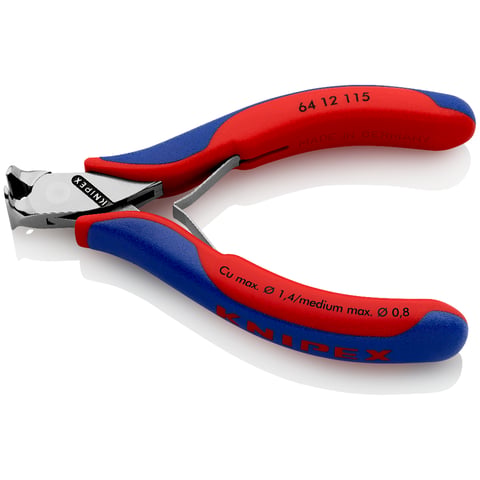

Electronics End Cutting Nipper
- End Cutter, with small bevel

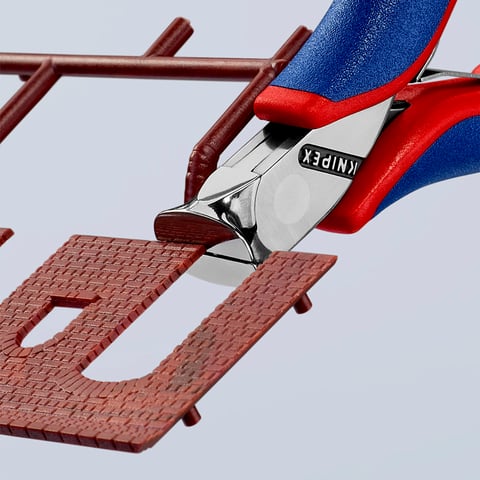

- Precision pliers for ultra fine cutting work, e. g. in electronics and fine mechanics
- Sturdy, zero backlash box joint
- Low-friction double spring for gentle and even opening
- The polish or mirror polish together with a fine film of oil offer effective rust protection - no circuit faults caused by peeling chrome from plated tools
- Cutters additionally laser hardened, cutter hardness at least 56 HRC
Technical attributes
Article No.
64 12 115
EAN
4003773040743
Head
mirror polished
Handles
with multi-component grips
Weight
70 g
Dimensions
115 x 70 x 17 mm
Standard
DIN ISO 9654
REACH compliant
does not contain SVHC
RoHS compliant
not applicable
Cutting capacities soft wire (diameter)
Ø 1.4 mm
Cutting capacities medium hard wire (diameter)
Ø 0.8 mm
Head width (A)
11 mm
Jaw length (B)
6 mm
Jaw thickness (joint) (D)
7 mm
Cutting edge length mm (C)
16 mm
Brief overview
Electronics pliers for the finest cutting work e.g. in electronics and precision engineering
Precision box joint
High-grade special tool steel, forged, oil-hardened
Cutting edges additionally induction hardened, cutting edge hardness at least 60 HRC
Handles with multi-component grips
Net weight 91 g
