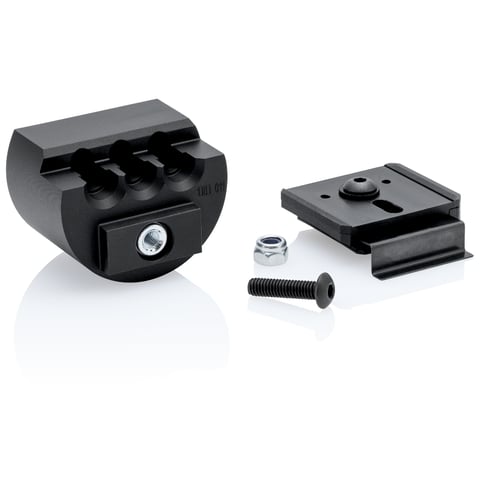

97 49 58 1
Locator for crimping system pliers
For stamped PV plug types Amphenol® S&F H4+™

  • Faster to the perfect crimp: automatic, precise contact alignment
  • Locator for 97 49 58
Technical attributes
Part No.
97 49 58 1
EAN
4003773093121
Dimensions
40 x 40 mm
REACH compliant
does not contain SVHC
RoHS compliant
not applicable
Documents
Download product data sheet
