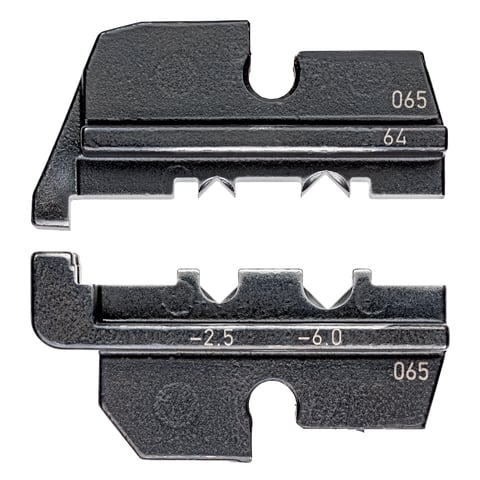

KNIPEX 97 49 64 Crimpeinsatz für ABS-Stecker
KNIPEX 97 49 64 Crimpeinsatz für ABS-Stecker

97 49 64
Die set
For ABS connectors

Square crimp
  • Application: modular plugs 1.0 - 6.0 mm²
Technical attributes
Article No.
97 49 64
EAN
4003773044055
Weight
73 g
Dimensions
50 x 17 mm
REACH compliant
does not contain SVHC
RoHS compliant
not applicable
Application
Turned connectors of the ABS serios from Tyco Electronics. Suitable for connector series HTS
Capacity in square millimetres
2.5 / 6 mm²
Number of crimp profiles
2
AWG
14 / 10

All variations

97 49 04
Die set For non-insulated, open plug type connectors (2.8 + 4.8 mm width)
0,1 – 2,5 mm²
97 49 05
Die set For non-insulated open plug type connectors (plug width 4.8 + 6.3 mm)
0,5 – 6,0 mm²
97 49 06
Die set For insulated terminals + plug connectors
0,5 – 6,0 mm²
97 49 06 PI
Die set For insulated PIDG connectors
0,5 – 6,0 mm²
97 49 07
Die set For heat shrinkable sleeve connectors
0,5 – 6,0 mm²
97 49 08
Die set For insulated and non-insulated wire ferrules
0,25 – 6,0 mm²
97 49 09
Die set For wire ferrules
10 / 16 / 25 mm²
97 49 10
Die set For non-insulated tube and crimp cable lugs and non-insulated butt and crimp connectors in accordance with DIN 46341
0,25 – 0,75 / 1,0 – 1,5 / 2,5 mm²
97 49 11
Die set For non-insulated crimp
4 / 6 / 10 mm²
97 49 14
Die set For non-insulated crimp
0,5 – 10 mm²
97 49 15
Die set For plug connectors and non-insulated open plug-type connectors
1,0 – 2,5 + 1,0 – 6,0
97 49 16
Die set For insulated cable lugs and cable connectors
10 / 16 mm²
97 49 18
Die set For twin wire ferrules
2 x 6 / 2 x 10 / 2 x 16 mm²
97 49 19
Die set For wire ferrules
35 / 50 mm²
97 49 20
Die set For F-connectors for TV and satellite connections
Ø 9,6 / SW 8,4 + 8,1 mm
97 49 21
Die set For insulated and non-insulated connectors
0,1 - 0,5 mm²
97 49 23
Die set For non-insulated crimp
16 / 25 mm²
97 49 24
Die set For D-Sub-plugs
0,03 – 0,56 mm²
97 49 25
Die set For connectors in the Micro-Fit 3.0 series from Molex LLC
97 49 26
Die set For connectors in the Mini-Fit™ series from Molex LLC
97 49 27
Die set For MQS connectors without single wire seal
0,25 / 0,35 / 0,5 mm²
97 49 28
Die set For connectors of the AMP Superseal 1.5 series from Tyco Electronics
0,35 - 1,5 mm²
97 49 28 1
Wire Feed Stopper for 97 49 28
97 49 30
Die set For non-insulated butt connectors
1,5 – 4,0 mm²
97 49 35
Die set For spark plug connectors and distributors
1,0 mm²
97 49 40
Die set For coax connectors
RG 58 / 59 / 62 / 71 / 223
97 49 44
Die set Phoenix contact module connector
0,14 – 1,5 mm²
97 49 50
Die set For coax connectors / car phone
RG 58 / 174 / 188 / 316
97 49 54
Die set For Junior Power Timer
0,5 – 2,5 mm²
97 49 59
Die set For solar cable connectors Helios H4 (Amphenol)
97 49 60
Die set For turned contacts (HTS + Harting)
0,14 – 4,0 mm²
97 49 61
Die set For turned contacts (Harting)
1,5 / 2,5 / 4 / 6 mm²
97 49 62
Die set For solar cable connectors (Huber + Suhner)
2,5 + 4,0 mm²
97 49 63
Die set For solar cable connectors (Huber + Suhner)
4,0 + 6,0 mm²
97 49 65
Die set For solar cable connectors MC3 (Multi-Contact)
2,5 – 6,0 mm²
97 49 66
Die set For solar cable connectors MC4 (Multi-Contact) 2,5/4/6 mm²
2,5 – 6,0 mm²
97 49 66 4
Die set For solar cable connectors MC4 (Multi-Contact) cutting - stripping - crimping
4,0 mm²
97 49 66 6
Die set For solar cable connectors MC4 (Multi-Contact) cutting - stripping - crimping
6,0 mm²
97 49 67
Die set For solar cable connectors SunCon (Hirschmann)
2,5 – 6,0 mm²
97 49 68
Die set Solar cable connectors (Tyco)
1,5 – 6,0 mm²
97 49 69 2
Die set For solar cable connectors gesis® solar PST 40 (Wieland)
4,0 – 10,0 mm²
97 49 70
Die set For Western plugs
RJ 10 / 11 / 12 / 45
97 49 71
Die set For solar cable connectors MC4 (Multi-Contact)
4,0 – 10,0 mm²
97 49 72
Die set For solar cable connectors MC3 (Multi-Contact)
4 / 6 / 10 mm²
97 49 74
Die set For unshielded Molex plugs
RJ 12 / 45
97 49 76
Die set For shielded Stewart plugs
RJ 45
97 49 81
Die set For Harting connectors for fibre optics
SW 3,0 / Ø 3,5 mm
97 49 82
Die set For Telegärtner connectors for fibre optics
SW 3,25 / Ø 3,6 mm
97 49 83
Die set For FSMA, ST, SC, STSC/K connectors
SW 3,65 / Ø 4,3 mm
97 49 84
Die set For Huber/Suhner connectors for fibre optics
SW 3,8 / Ø 4,5 mm
97 49 87
Die set For FSMA, ST and MIC connectors for fibre optics
SW 8,7 / Ø 9,5 mm
Technical changes and errors reserved.
