Pliers for Electrical Installation
- 6 functions in one pair of pliers
- Multifunctional pliers for the electrical installation; to grip flat and round material, for bending, deburring, cutting cable, stripping and crimping wire ferrules
- In case of models with opening spring integrated in the joint, the activated locking lever keeps the cutting edges closed while other functions remain active
- The intelligent latching mechanism enables you to "grip" without opening the pliers. The cutting edge remains closed and protected.

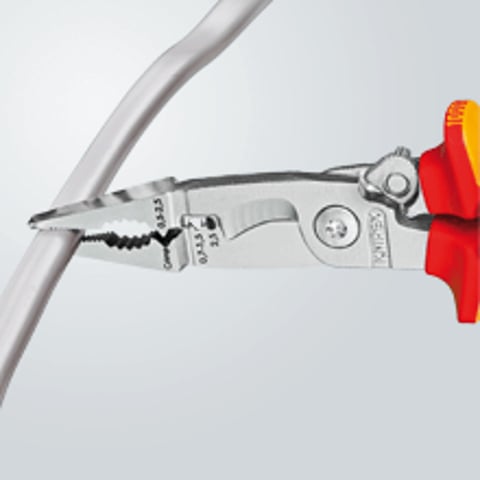

- Smooth surfaces near the tips grip single cores without damaging them; serrated gripping surfaces and pipe grip for gripping flat and round material

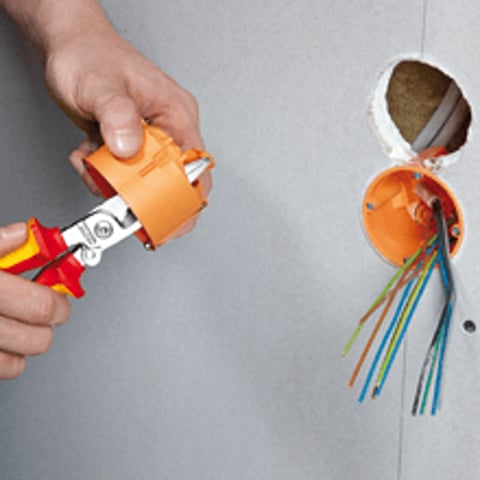

- Clear-cut outside edge on the gripping surfaces for working on flush-mounted junction boxes and deburring feed-through holes

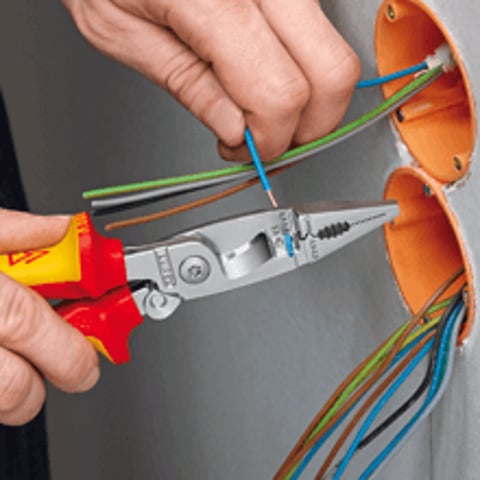

- Stripping holes for conductors of 0.75 - 1.5 mm² and 2.5 mm²

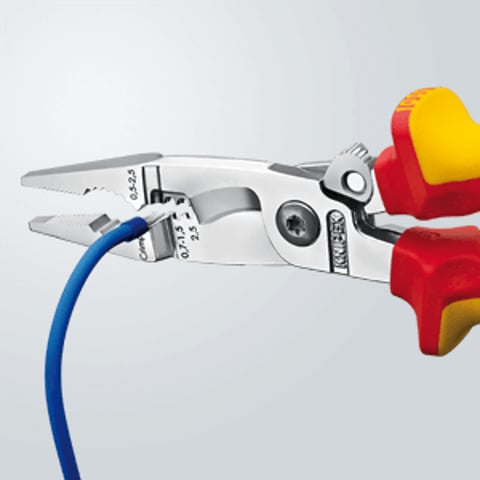

- Crimping die for wire ferrules 0.5 - 2.5 mm²
- Cable shears with (induction-hardened) precision cutting edges for copper and aluminium cables up to 5 x 2.5 mm² / Ø 15 mm
- Slim dimensions for easy access
- Bolted joint: precise, zero backlash operation of pliers
Technical attributes
Article No.
13 96 200
EAN
4003773075110
Pliers
chrome-plated
Head
chrome-plated
Handles
insulated with multi-component grips, VDE-tested
Weight
280 g
Dimensions
200 x 85 x 20 mm
Standard
DIN EN 60900 IEC 60900
REACH compliant
does not contain SVHC
RoHS compliant
not applicable
Cutting capacity copper cable, multiple-stranded
Ø 15 mm
Cutting capacity copper cable, multiple-stranded
50 mm²
Stripping capacity for cross-sections
0.75 — 1.5 mm² / 2.5 mm²
Capacity in square millimetres
0.5 — 2.5 mm²
AWG
1 / 0
VDE tested
yes
Brief overview
Compact multifunctional tool
Six functions combined in one tool
Cuts cable up to Ø 15 mm
Wire stripping capacities for single conductors: 0.75 – 1.5 mm² and 2.5 mm²
Crimp die for end sleeves (ferrules) 0.5 – 2.5 mm²
Low weight (280 g)
Handles with insulating multi-component grips, VDE tested
With pawl for gentle gripping
Forged from high grade special tool steel, oil hardened in multiple stages and chrome-plated
