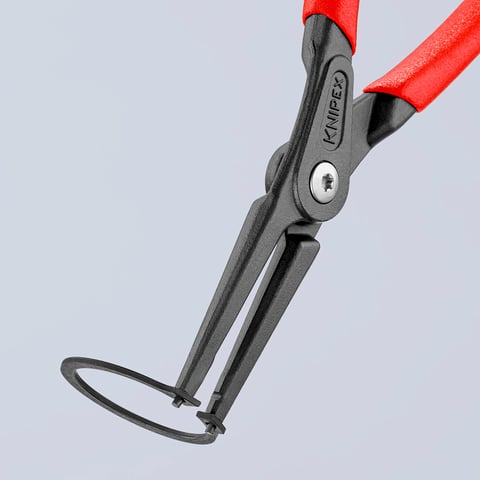

49 11 A3
Precision Circlip Pliers

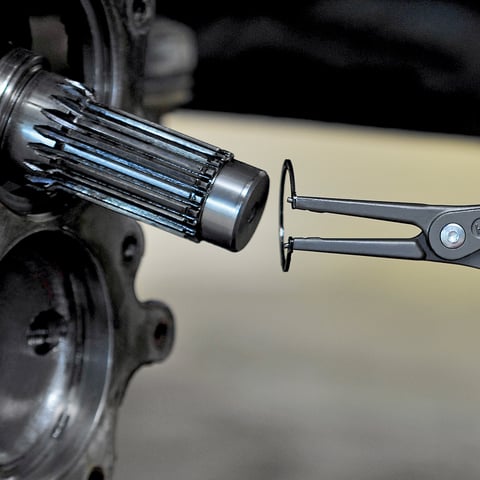

For external circlips on shafts

  • Heavy duty in continuous operation: up to 10 times longer service life compared to turned tips

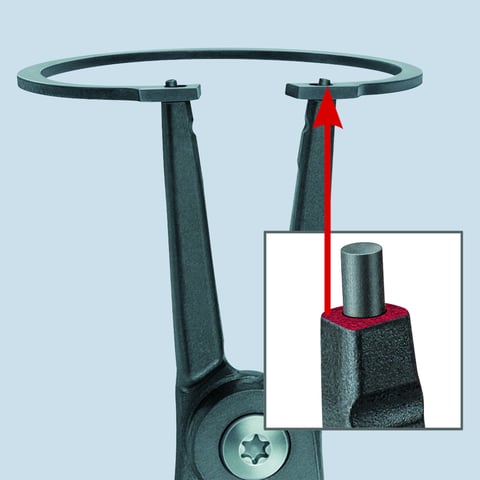

  • With inserted tips for reliable work

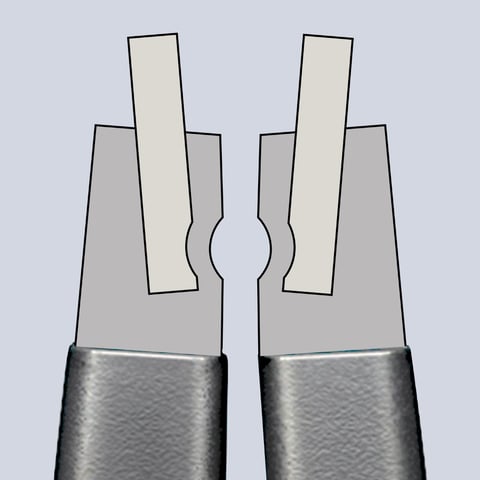

  • Large contact faces on the tips: no distortion of circlips, easy fitting

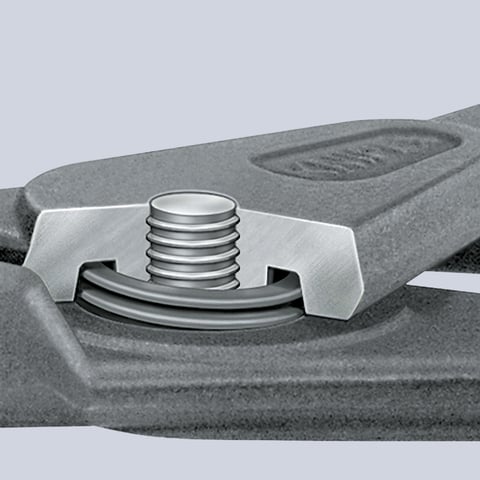

  • Bolted joint: precise, zero backlash operation of pliers
  • Internal opening spring, protected and captive
  • Non-slip plastic coating on the handles
  • Straight tips

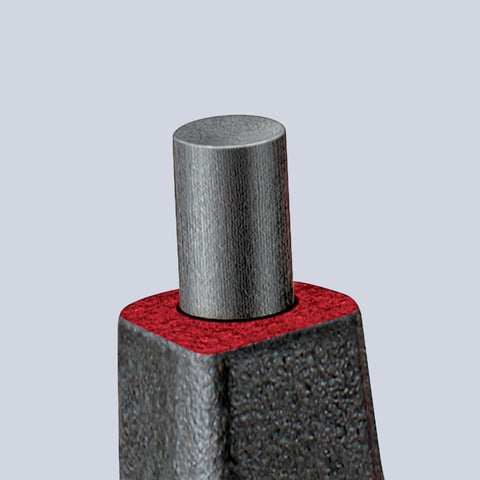

  • Inserted tips: spring steel wire, drawn
  • Pliers body: chrome vanadium electric steel, forged, oil-hardened
Technical attributes
Article No.
49 11 A3
EAN
4003773048749
Pliers
grey atramentized
Handles
with non-slip plastic coating
Weight
270 g
Dimensions
225 x 49 x 14 mm
Standard
DIN 5254 A
REACH compliant
does not contain SVHC
RoHS compliant
not applicable
Size of shaft
Ø 40 – 100 mm
Tips (diameter)
2.3 mm
Brief overview

Handles coated with non-slip plastic

Length 225 mm

All variations

49 11 A0
Precision Circlip Pliers For external circlips on shafts
100-140 mm
plastic coated
Ø 3 – 10 mm
Length: 140 mm
49 11 A1
Precision Circlip Pliers For external circlips on shafts
100-140 mm
plastic coated
Ø 10 – 25 mm
Length: 140 mm
49 11 A2
Precision Circlip Pliers For external circlips on shafts
141-180 mm
plastic coated
Ø 19 – 60 mm
Length: 180 mm
49 11 A4
Precision Circlip Pliers For external circlips on shafts
301-400 mm
plastic coated
Ø 85 – 140 mm
Length: 320 mm
49 21 A01
Precision Circlip Pliers For external circlips on shafts
100-140 mm
plastic coated
Ø 3 – 10 mm
Length: 130 mm
49 21 A11
Precision Circlip Pliers For external circlips on shafts
100-140 mm
plastic coated
Ø 10 – 25 mm
Length: 130 mm
49 21 A21
Precision Circlip Pliers For external circlips on shafts
141-180 mm
plastic coated
Ø 19 – 60 mm
Length: 165 mm
49 21 A31
Precision Circlip Pliers For external circlips on shafts
plastic coated
Ø 40 – 100 mm
Length: 210 mm
49 21 A41
Precision Circlip Pliers For external circlips on shafts
301-400 mm
plastic coated
Ø 85 – 140 mm
Length: 305 mm
49 31 A0
Precision Circlip Pliers For external circlips on shafts With overstretching limiter
100-140 mm
plastic coated
Ø 3 – 10 mm
Length: 140 mm
49 31 A1
Precision Circlip Pliers For external circlips on shafts With overstretching limiter
100-140 mm
plastic coated
Ø 10 – 25 mm
Length: 140 mm
49 31 A2
Precision Circlip Pliers For external circlips on shafts With overstretching limiter
141-180 mm
plastic coated
Ø 19 – 60 mm
Length: 180 mm
49 31 A3
Precision Circlip Pliers For external circlips on shafts With overstretching limiter
plastic coated
Ø 40 – 100 mm
Length: 225 mm
49 41 A01
Precision Circlip Pliers For external circlips on shafts
100-140 mm
plastic coated
Length: 130 mm
49 41 A11
Precision Circlip Pliers For external circlips on shafts
100-140 mm
plastic coated
Length: 130 mm
49 41 A21
Precision Circlip Pliers For external circlips on shafts
141-180 mm
plastic coated
Length: 165 mm
49 41 A31
Precision Circlip Pliers For external circlips on shafts
plastic coated
Length: 210 mm
