Quality — Made in Germany

46 10 100

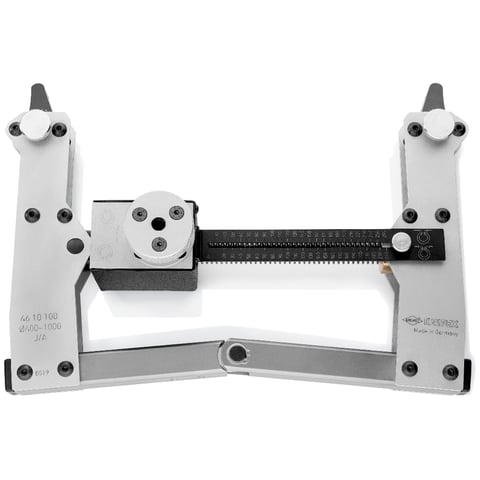

Circlip Tool
For internal and external circlips up to 1,000 mm nominal size

  • Universally usable for large circlips with diameters of 400 - 1000 mm
  • Reliable opening and closing of the circlips and holding by self-locking precision spindle drive
  • For fitting and removing circlips
  • Circlips are reliably catched thanks to short, direct attachment

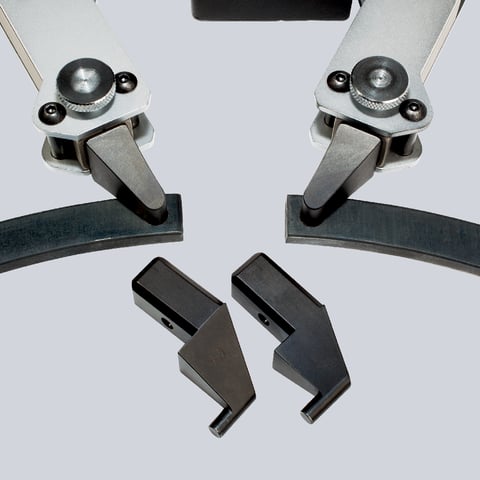

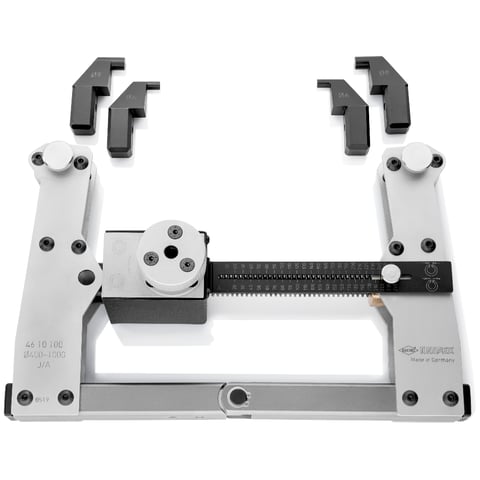

  • Replaceable tips having working ends with diameters of 6 and 9 mm, for perfect adaption to the handling bores in the circlips

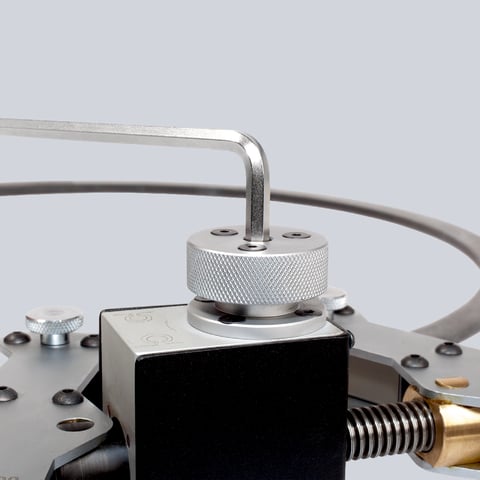

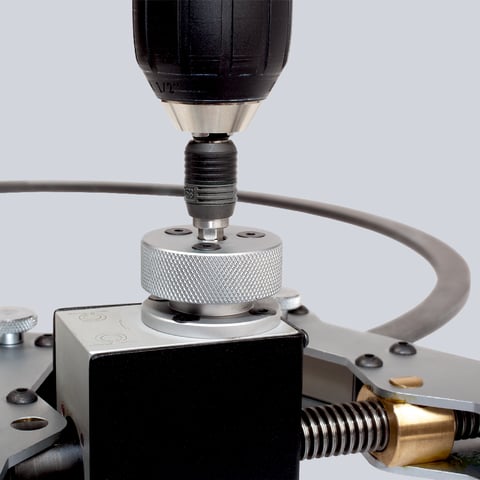

  • Optional operation by hand, with Allen key, ratchet wrench or cordless screwdriver
  • Areas of application are heavy engines where very high forces and torques are transmitted with large shafts and bearings , e.g. wind turbines, tidal power stations, generator construction, hydropower stations, large machine construction (rolling mills, presses), shipbuilding, aerospace

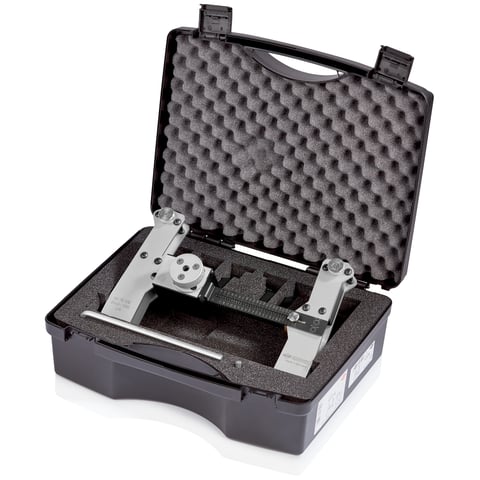

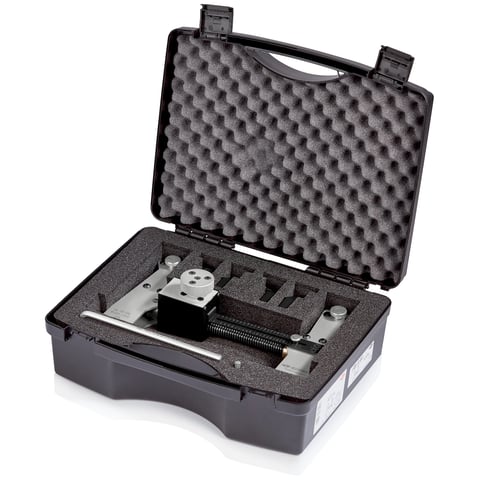

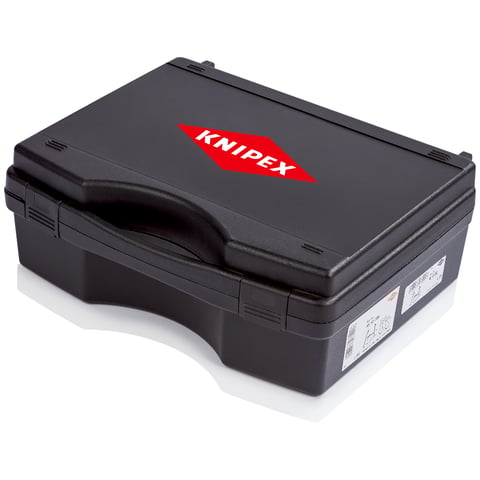

  • Tool in a plastic case with foam insert
Technical attributes
Article No.
46 10 100
2,200 g
175 x 70 mm
REACH compliant
contains SVHC
RoHS compliant
not applicable
Size of shaft
Ø 400 – 1,000 mm
Size of bore
Ø 400 – 1,000 mm
Technical changes and errors reserved.
