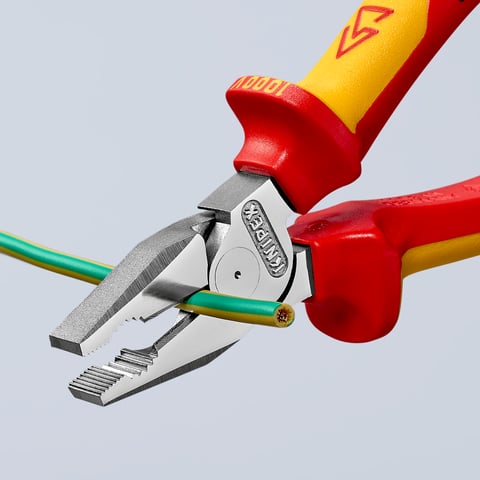

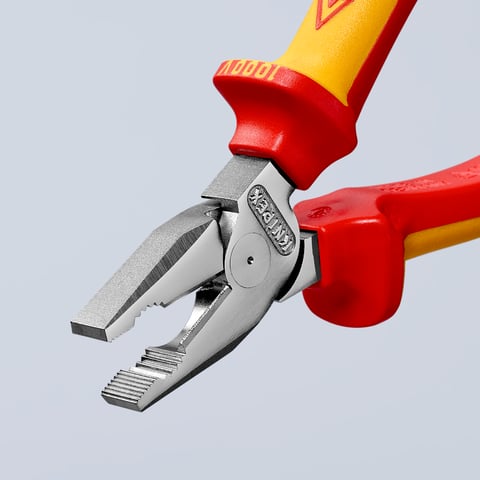

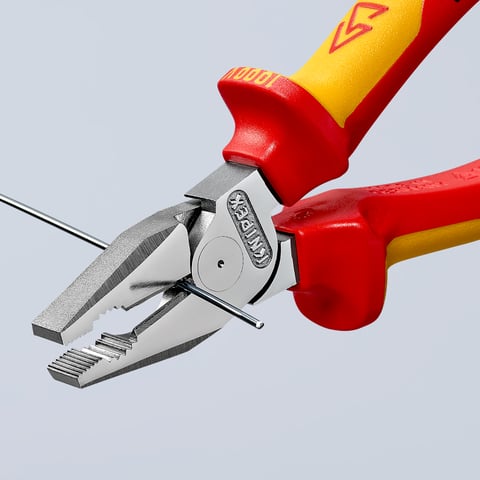

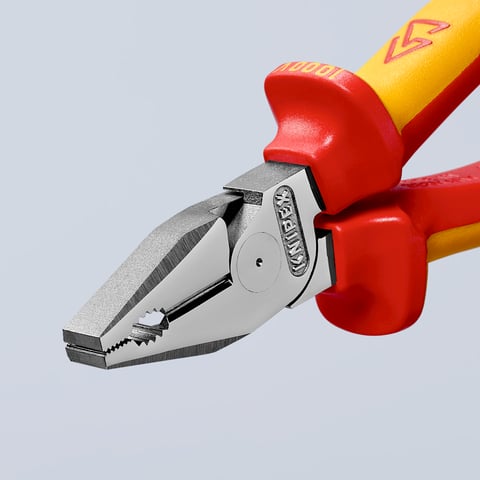

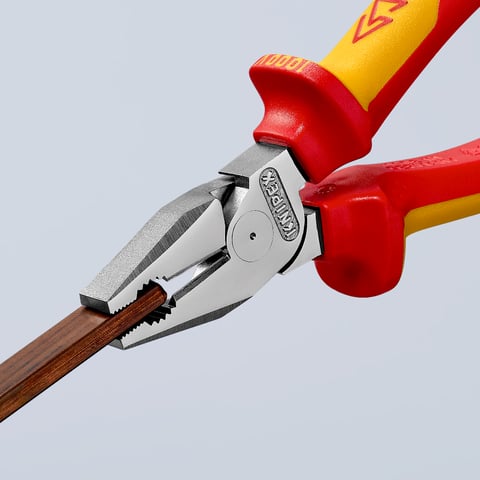

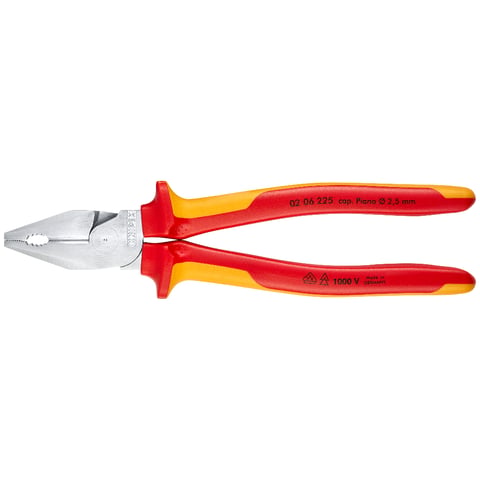

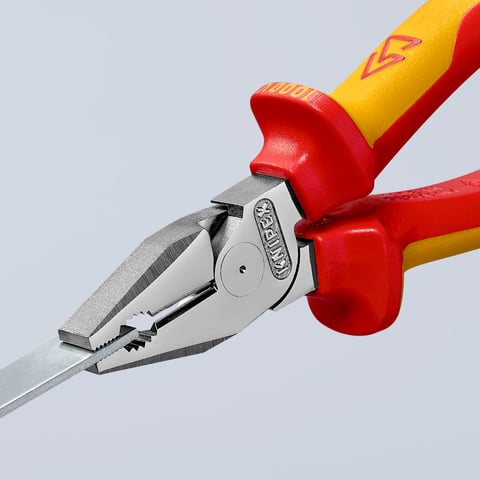

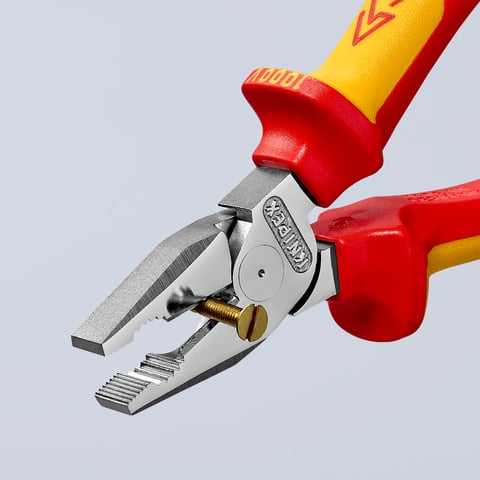

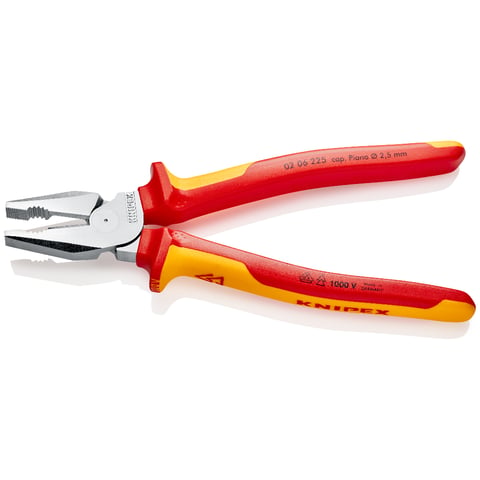

02 06 225High Leverage Combination Pliers
Carbon Footprint
These symbols indicate environmental performance indicators for each pair of pliers. The carbon footprint (PCF) indicates how much CO₂ is generated during the manufacture of the pliers. The PCF is calculated using the cradle-to-gate approach, which considers the life cycle of the pliers from raw material extraction to leaving our factory, with a focus on the manufacturing phase. This allows us to systematically evaluate the CO₂ emissions of a pair of pliers and identify opportunities for improvement in design, materials and production. A high recycling rate saves resources and supports the circular economy. Steel can be recycled indefinitely without any loss of quality. By using recycled steel, we improve the environmental performance of our pliers.
- 35% less effort required than with conventional combination pliers
- With cutting edges (hardness approx. 63 HRC) for heavy duty
- Easier work due to optimised leverage
- Easier cutting, powerful gripping, bending and pulling
- Long cutting edges for thicker cables
- With gripping zones for flat and round material, suitable for versatile use
- Precise, minimal light gap between the gripping jaws to ensure optimal function of the cutting edges
- Cutting edges additionally induction-hardened, cutting edge hardness approx. 63 HRC
Technical attributes
Part No.
02 06 225
EAN
4003773010036
Pliers
chrome-plated
Head
chrome-plated
Handles
insulated with multi-component grips, VDE-tested
Weight
425 g
Dimensions
225 x 58.2 x 29.4 mm
Standard
DIN ISO 5746 DIN EN 60900 IEC 60900
REACH compliant
does not contain SVHC
RoHS compliant
not applicable
Cutting capacities hard wire (diameter)
Ø 3.0 mm
Cutting capacities piano wire (diameter)
Ø 2.5 mm
Cutting capacity copper cable, multiple-stranded
Ø 14.0 mm
Cutting capacity copper cable, multiple-stranded
25.0 mm²
VDE tested
yes
