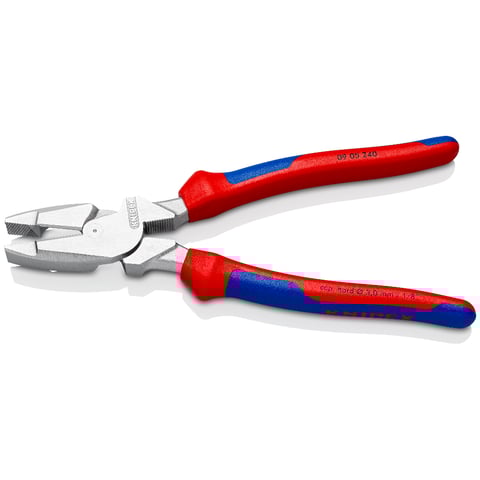

09 05 240Lineman's PliersAmerican style
09 05 240
Lineman's Pliers
American style
- High transmission ratio for easy cutting
- Requires 50 % less effort compared with conventional combination pliers thanks to optimised transmission ratio
- Solid construction for heaviest strain; universally applicable
- Ergonomically optimised handle shape for firm contact to the hand and fatigue reducing operation
- Particularly effective cross-hatched knurled gripping zone in the jaws - for strong gripping and pulling
- Additional gripping zone below the joint for powerful leverage and pressing performance
- With cutting edges for soft and hard wire
- Cutting edges additionally induction-hardened, cutting edge hardness approx. 62 HRC
Technical attributes
Article No.
09 05 240
EAN
4003773087380
Pliers
chrome-plated
Head
chrome-plated
Handles
with multi-component grips
Weight
460 g
Dimensions
240 x 56 x 22 mm
Standard
DIN ISO 5746 ASME B107.20
REACH compliant
does not contain SVHC
RoHS compliant
not applicable
Cutting capacities medium hard wire (diameter)
Ø 4.6 mm
Schneidwerte harter Draht (Durchmesser)
Ø 3.0 mm
