74 02 250

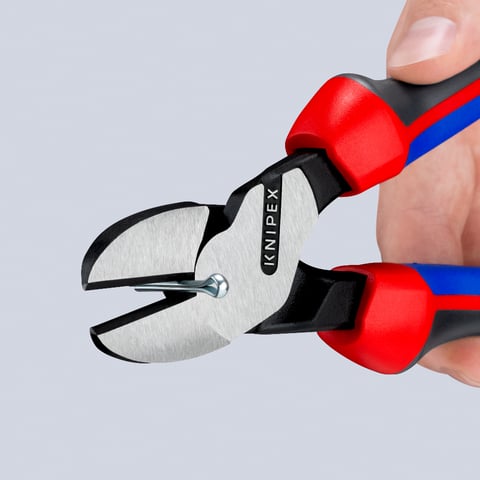

High Leverage Diagonal Cutter

cutting edges with bevel
  • For very tough, continuous use

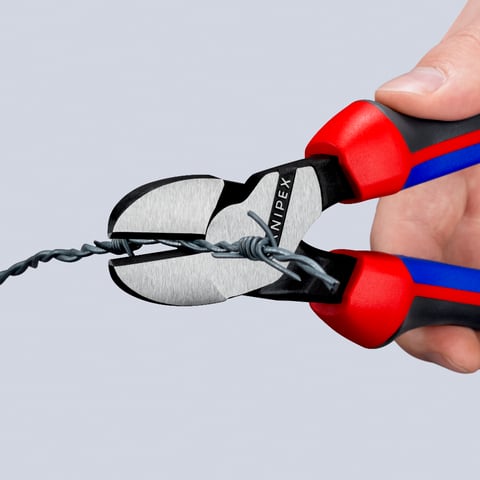

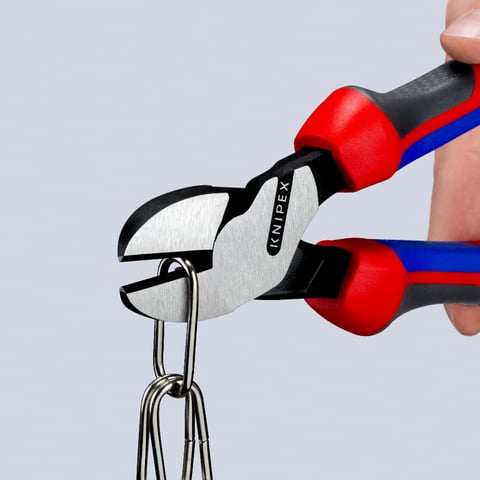

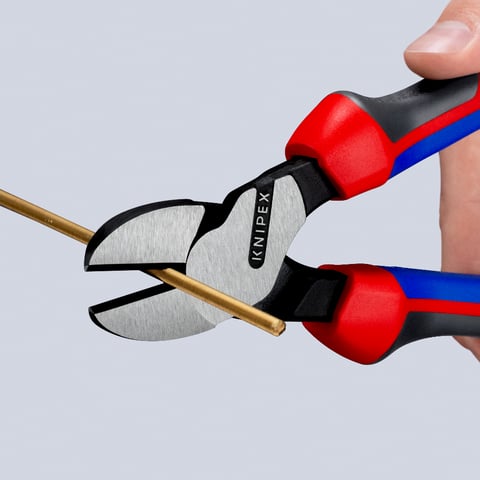

  • High cutting performance with minimum effort due to optimum coordination of the cutting edge angle and transmission ratio

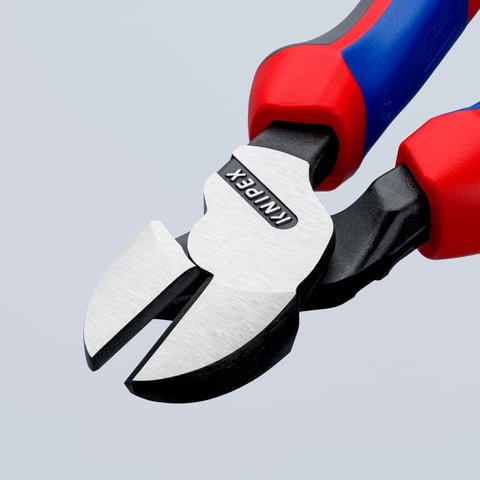

  • Precision cutting edges additionally induction-hardened (cutting edge hardness approx. 64 HRC), for all sorts of wire including piano wire
Technical attributes
Article No.
74 02 250
EAN
4003773042402
Pliers
black atramentized
Head
polished
Handles
with multi-component grips
Weight
437 g
Dimensions
250 x 55 x 24 mm
Standard
DIN ISO 5749
REACH compliant
does not contain SVHC
RoHS compliant
not applicable
Cutting capacities medium hard wire (diameter) Cutting capacities medium hard wire (diameter)
Ø 4.6 mm
Schneidwerte harter Draht (Durchmesser) Schneidwerte harter Draht (Durchmesser)
Ø 3.5 mm
Cutting capacities piano wire (diameter) Cutting capacities piano wire (diameter)
Ø 3.0 mm
Brief overview

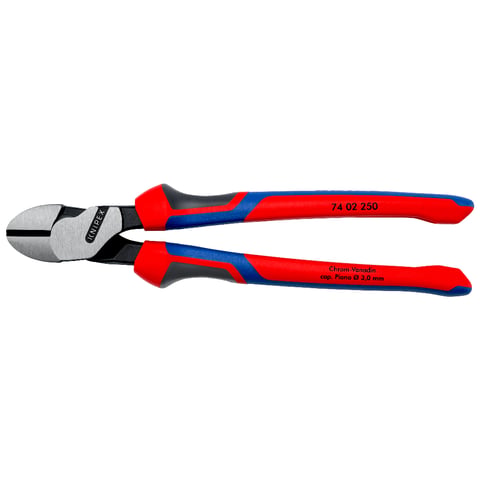

Large high leverage diagonal cutters (250 mm long) with forged joint axle

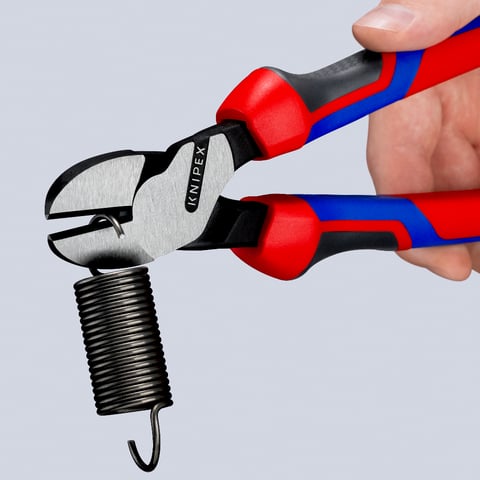

Cut piano wire (spring steel wire) up to Ø 3.0 mm

In relation to the cutting capacity, comparatively low weight at 437 g

Cutting edge hardness approx. 64 HRC

Production according to high standards for best work results and a long service life

Sit firmly in the hand thanks to ergonomic handle design and multi-component grips

Chrome vanadium electric steel, forged, oil hardened in multiple stages

All variations

74 01 140
High Leverage Diagonal Cutter
100-140 mm
atramentised / lacquered / burnished
plastic coated
Length: 140 mm
74 01 160
High Leverage Diagonal Cutter
141-180 mm
atramentised / lacquered / burnished
plastic coated
Length: 160 mm
74 01 180
High Leverage Diagonal Cutter
141-180 mm
atramentised / lacquered / burnished
plastic coated
Length: 180 mm
74 01 200
High Leverage Diagonal Cutter
181-250 mm
atramentised / lacquered / burnished
plastic coated
Length: 200 mm
74 01 250
High Leverage Diagonal Cutter
181-250 mm
atramentised / lacquered / burnished
plastic coated
Length: 250 mm
74 02 140
High Leverage Diagonal Cutter
100-140 mm
atramentised / lacquered / burnished
multi-component grips
Length: 140 mm
74 02 160
High Leverage Diagonal Cutter
141-180 mm
atramentised / lacquered / burnished
multi-component grips
Length: 160 mm
74 02 180
High Leverage Diagonal Cutter
141-180 mm
atramentised / lacquered / burnished
multi-component grips
Length: 180 mm
74 02 200
High Leverage Diagonal Cutter
181-250 mm
atramentised / lacquered / burnished
multi-component grips
Length: 200 mm
74 02 200 T
High Leverage Diagonal Cutter
181-250 mm
atramentised / lacquered / burnished
multi-component grips
Length: 200 mm
74 02 250 T
High Leverage Diagonal Cutter
181-250 mm
atramentised / lacquered / burnished
multi-component grips
Length: 250 mm
74 05 140
High Leverage Diagonal Cutter
100-140 mm
chrome-plated / zinc-plated
multi-component grips
Length: 140 mm
74 05 160
High Leverage Diagonal Cutter
141-180 mm
chrome-plated / zinc-plated
multi-component grips
Length: 160 mm
74 05 180
High Leverage Diagonal Cutter
141-180 mm
chrome-plated / zinc-plated
multi-component grips
Length: 180 mm
74 05 200
High Leverage Diagonal Cutter
181-250 mm
chrome-plated / zinc-plated
multi-component grips
Length: 200 mm
74 05 250
High Leverage Diagonal Cutter
181-250 mm
chrome-plated / zinc-plated
multi-component grips
Length: 250 mm
74 06 160
High Leverage Diagonal Cutter
141-180 mm
chrome-plated / zinc-plated
multi-component grips
Length: 160 mm
74 06 180
High Leverage Diagonal Cutter
141-180 mm
chrome-plated / zinc-plated
multi-component grips
Length: 180 mm
74 06 200
High Leverage Diagonal Cutter
181-250 mm
chrome-plated / zinc-plated
multi-component grips
Length: 200 mm
74 06 200 T
High Leverage Diagonal Cutter
181-250 mm
chrome-plated / zinc-plated
multi-component grips
Length: 200 mm
74 06 250
High Leverage Diagonal Cutter
181-250 mm
chrome-plated / zinc-plated
multi-component grips
Length: 250 mm
74 06 250 T
High Leverage Diagonal Cutter
181-250 mm
chrome-plated / zinc-plated
multi-component grips
Length: 250 mm
74 07 200
High Leverage Diagonal Cutter
181-250 mm
chrome-plated / zinc-plated
with dipped insulation
Length: 200 mm
74 07 250
High Leverage Diagonal Cutter
181-250 mm
chrome-plated / zinc-plated
with dipped insulation
Length: 250 mm
74 12 160
High Leverage Diagonal Cutter
141-180 mm
atramentised / lacquered / burnished
multi-component grips
Length: 160 mm
74 12 180
High Leverage Diagonal Cutter
141-180 mm
atramentised / lacquered / burnished
multi-component grips
Length: 180 mm
74 21 200
High Leverage Diagonal Cutter
181-250 mm
atramentised / lacquered / burnished
plastic coated
Length: 200 mm
74 21 250
High Leverage Diagonal Cutter
181-250 mm
atramentised / lacquered / burnished
plastic coated
Length: 250 mm
74 22 200
High Leverage Diagonal Cutter
181-250 mm
atramentised / lacquered / burnished
multi-component grips
Length: 200 mm
74 22 200 T
High Leverage Diagonal Cutter
181-250 mm
atramentised / lacquered / burnished
multi-component grips
Length: 200 mm
74 22 250
High Leverage Diagonal Cutter
181-250 mm
atramentised / lacquered / burnished
multi-component grips
Length: 250 mm
74 22 250 T
High Leverage Diagonal Cutter
181-250 mm
atramentised / lacquered / burnished
multi-component grips
Length: 250 mm
Technical changes and errors reserved.
