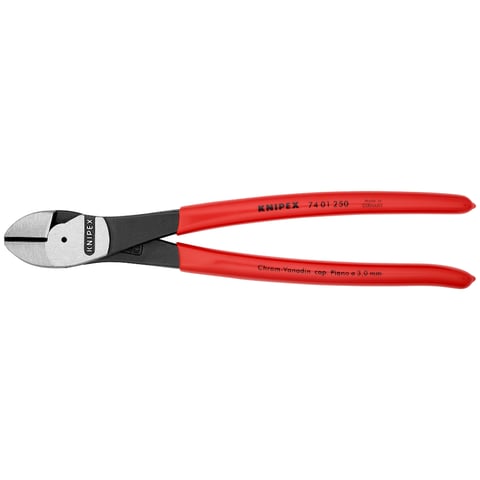

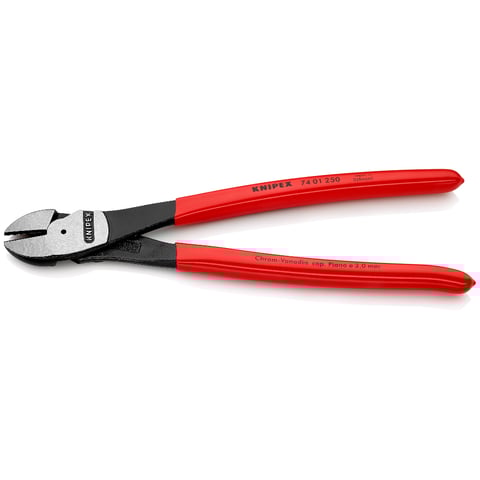

74 01 250High Leverage Diagonal Cutter
- For very tough, continuous use
- High cutting performance with minimum effort due to optimum coordination of the cutting edge angle and transmission ratio
- Precision cutting edges additionally induction-hardened (cutting edge hardness approx. 64 HRC), for all sorts of wire including piano wire
Cutting capacities medium hard wire (diameter)
Cutting capacities piano wire (diameter)
Large high leverage diagonal cutters for hard constant use
Reliable tool for professional users: tough and strong
Thanks to their high cutting capacity and indestructible strength, the Knipex 74 01 250 high leverage diagonal cutters are highly valued especially by craftsmen and industrial mechanics.
The version with a length of 250 mm is frequently used on building sites and in manufacturing because it can cut hard materials such as piano wire up to 3.0 Ø mm effortlessly.
Comparatively low weight, optimum geometry and a 20 % energy saving
Compared to conventional diagonal cutters of the same size, the Knipex 74 01 250 offers a much better ratio between the force required and cutting capacity.
The geometry of the cutting edges, joint and the handles has been designed for efficiency.
This tool is also the first choice for hard constant use, e.g. in industry, because its ergonomic design really conserves the strength of the user.
Thanks to the hand-friendly shape of the handle, the benefits of using these high leverage diagonal cutters are plain to feel and see.
The Knipex 74 01 250 is extremely stable due to its robust design with forged joint axle, while its weight of 391 g is low in relation to the high cutting capacity.
Large high leverage diagonal cutters (250 mm long) with forged joint axle

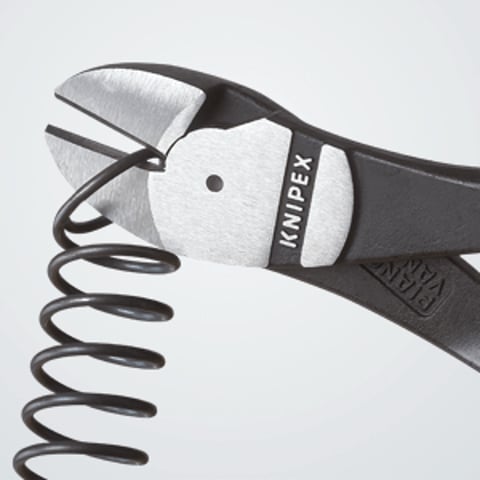

Cut piano wire (spring steel wire) up to Ø 3.0 mm
In relation to the cutting capacity, comparatively low weight at 391 g
Cutting edge hardness approx. 64 HRC
Production according to high standards for best work results and a long service life
Sits firmly in the hand thanks to ergonomic handle design and non-slip plastic coating on the handles
Chrome vanadium electric steel, forged, oil hardened in multiple stages and chrome-plated
Precise cutting of medium-hard and hard wire as well as piano wire

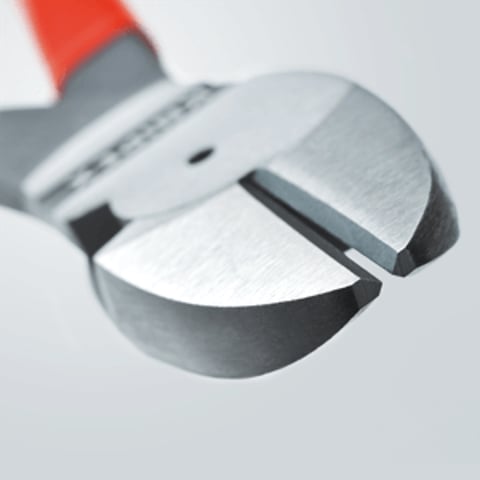

One can see how good diagonal cutters are by the cut. Knipex high leverage diagonal cutters deliver best performance. In addition to the quality forged parts made of high performance chrome vanadium tool steel, the most important quality criteria at Knipex include their precise machining. The sharpness and angle of the cutting edges on the Knipex 74 01 250 are designed for top performance. The excellent machining of these high leverage diagonal cutters makes sure that the material to be cut is always cut cleanly. The high quality of the tool steel produced in Germany, the hardness of the cutting edges and the forged joint axle guarantee exceptional stability and a long service life.

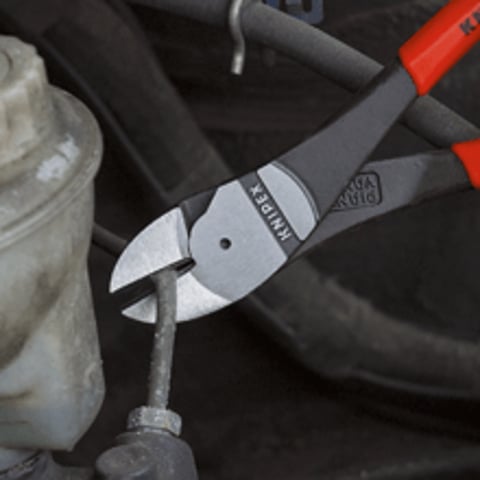

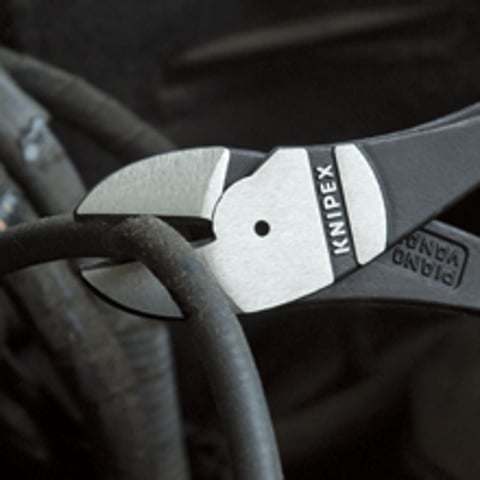

Powerful and tough, can be used for all cutting work.

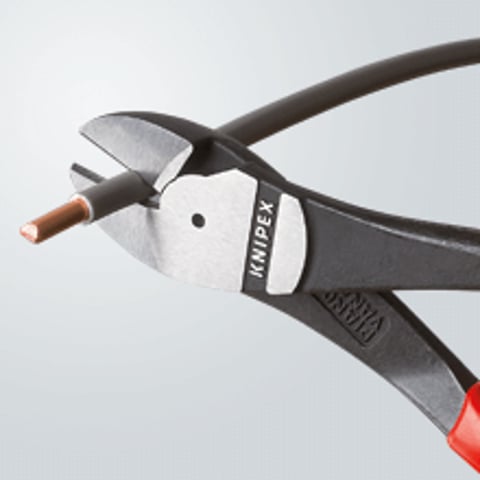

The high leverage diagonal cutters are very good for cutting copper conductors.
The 250 mm long high leverage diagonal cutters cut AL conductors up to 35 mm².

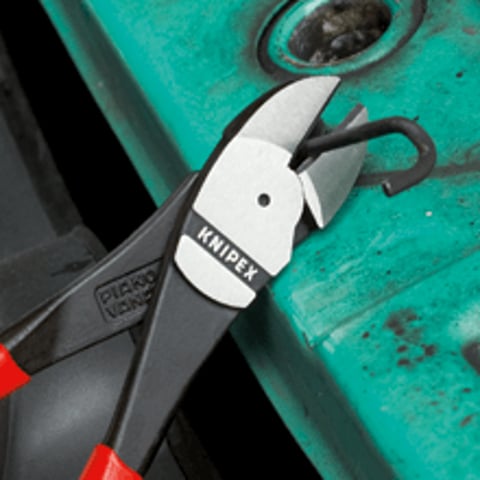

The high leverage diagonal cutters also cut hard wire with a 20 % energy saving compared to diagonal cutters of the same length.
