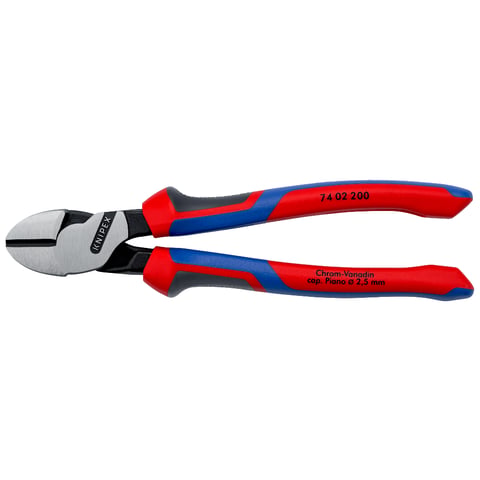

74 02 200
High Leverage Diagonal Cutter

  • For very tough, continuous use
  • High cutting performance with minimum effort due to optimum coordination of the cutting edge angle and transmission ratio
  • Precision cutting edges additionally induction-hardened (cutting edge hardness approx. 64 HRC), for all sorts of wire including piano wire
Discover KNIPEXtend accessories
Technical attributes
Article No.
74 02 200
EAN
4003773040309
Pliers
black atramentized
Head
polished
Handles
with comfort handles
Weight
304 g
Dimensions
200 x 50 x 21 mm
Standard
DIN ISO 5749
REACH compliant
does not contain SVHC
RoHS compliant
not applicable
Cutting capacities medium hard wire (diameter) Cutting capacities medium hard wire (diameter)
Ø 4.2 mm
Schneidwerte harter Draht (Durchmesser)
Ø 3.0 mm
Cutting capacities piano wire (diameter) Cutting capacities piano wire (diameter)
Ø 2.5 mm

High leverage diagonal cutters for hard constant use

Reliable helpers for professional users: tough and strong

Thanks to their high cutting capacity and indestructible strength, the Knipex 74 02 200 high leverage diagonal cutters are highly valued especially by craftsmen, and therefore in great demand. These high leverage diagonal cutters are also often used in the motor trade, on the building site and in industry.

They are also ideal as constant companion in mobile applications, because despite their compact size, they are still able to cut hard materials effortlessly. At just 200 mm long, the Knipex 74 02 200 fits in most work bags and in almost any toolbox

Low weight, optimum ergonomics and geometry: a 20 % energy saving

Compared to conventional diagonal cutters of the same size, the Knipex 74 02 200 offers a much better ratio between the force required and cutting capacity. The geometry of the cutting edges, joint and the handles has been designed for efficiency. But power is not all - this tool is also the first choice for hard constant use, e.g. assembly work, because its ergonomic design makes work much easier for the user. Thanks to the hand-friendly shape of the handle, the benefits of using these high leverage diagonal cutters are plain to feel and see. The multi-component grips provide added comfort. These high leverage diagonal cutters are extremely stable due to their robust design with forged joint axle. They are not particularly heavy at 304 g.

*With ergonomic comfort handles made of three components; illustrations may show older grip cover types

Brief overview

Compact high leverage diagonal cutters with forged joint axle

Cut piano wire (spring steel wire) up to Ø 2.5 mm

Big quality in a compact format: only 200 mm long

Low weight (304 g)

Cutting edge hardness approx. 64 HRC

Production according to high standards for best work results and a long service life

Sit firmly in the hand thanks to ergonomic handle design and multi-component grips

Chrome vanadium electric steel, forged, oil hardened in multiple stages

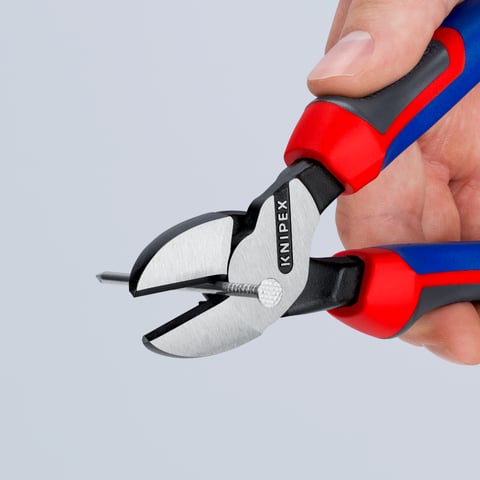

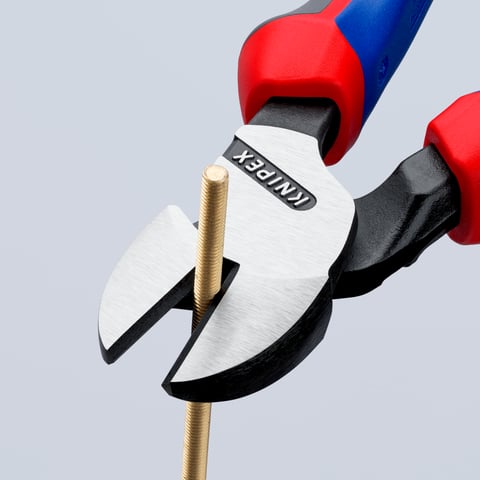

Precise cutting of medium-hard and hard wire as well as piano wire

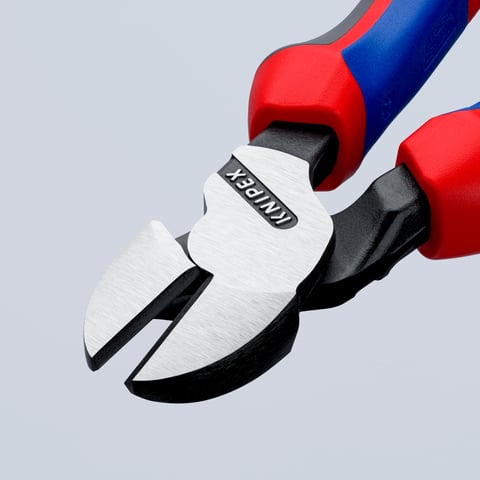

One can see how good diagonal cutters are by the cut. Knipex high leverage diagonal cutters deliver best performance. In addition to the quality forged metal parts made of high performance chrome vanadium tool steel, the most important quality criteria at Knipex include their precise machining. The sharpness and angle of the cutting edges on the Knipex 74 02 200 are designed for top performance. The excellent machining of these high leverage diagonal cutters makes sure that the material to be cut is always cut cleanly. The high quality of the tool steel produced in Germany, the hardness of the cutting edges and the forged joint axle guarantee exceptional stability and a long service life.

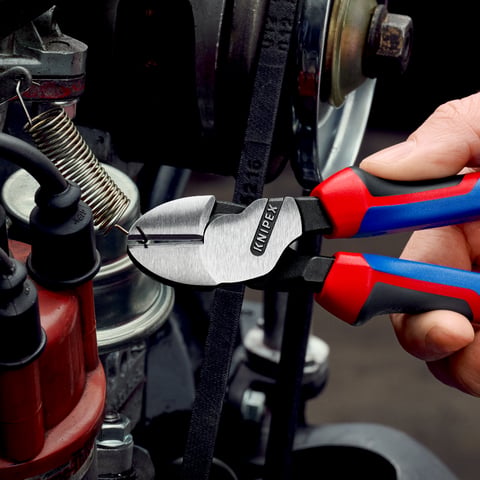

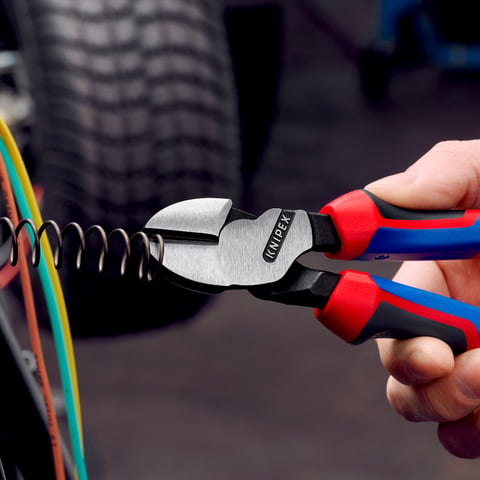

Ideal for cutting soft to hard wire, and even piano wire.

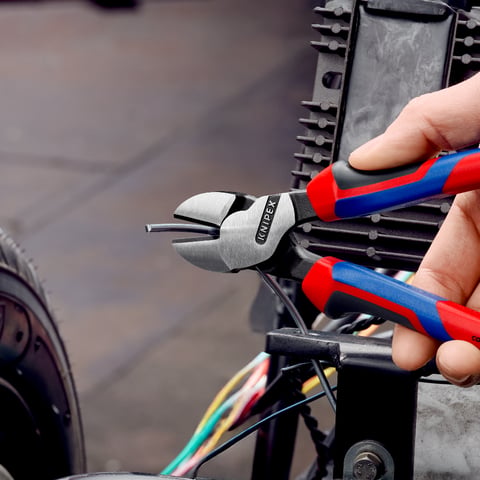

The high leverage diagonal cutters are ideal for cutting CU or AL conductors.

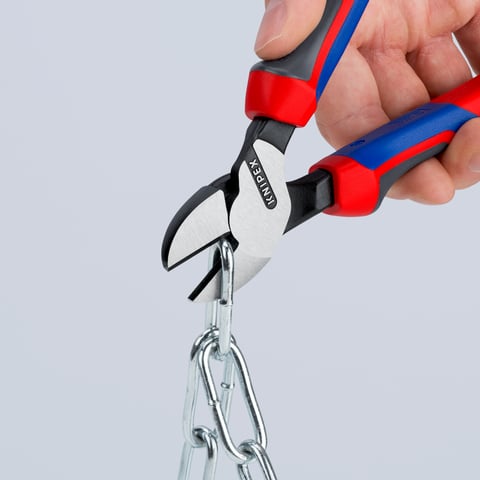

The high leverage diagonal cutters also cut chains with a 20 % energy saving compared to diagonal cutters of the same length.

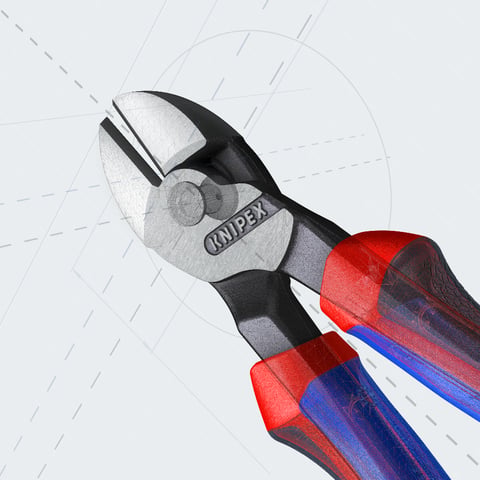

With forged joint axle for the toughest, continuous demands.
