Cutting capacities medium hard wire (diameter)
Cutting capacities hard wire (diameter)
Cutting capacities piano wire (diameter)
Large high leverage diagonal cutters for hard constant use
Reliable tool for the professional user: tough and strong, insulated
Thanks to their high cutting capacity and exceptional strength, the Knipex 74 07 250 high leverage diagonal cutters are in particular appreciated by all craftsmen and industrial mechanics.
In the dip-insulated version with a length of 250 mm they are often used in the electrical trade, on the building site and in manufacturing because they can be used to cut hard materials such as piano wire up to 3.0 Ø mm effortlessly.
The chrome plating contributes to the durability of these high leverage diagonal cutters, because it acts as an effective rust protection – for example when they are used outside – and makes them easier to clean.
Comparatively low weight, optimum geometry and a 20 % energy saving
Compared to conventional diagonal cutters of the same size, the Knipex 74 07 250 offers a much better ratio between the force required and cutting capacity.
The geometry of the cutting edges, joint and the handles have been designed for efficiency. During hard constant use, e.g. in industry, this tool is also the first choice because its ergonomic design makes work much easier for the user.
Thanks to the hand-friendly shape of the handle, the benefits of using these high leverage diagonal cutters are plain to feel and see. The dip-insulated sleeves ensure added comfort.
The Knipex 74 07 250 is extremely stable due to its robust design with forged joint axle: a tool for continuous demanding, professional use.
Large high leverage diagonal cutters (250 mm long) with forged joint axle
Insulated in accordance with IEC 60900 / DIN EN 60900

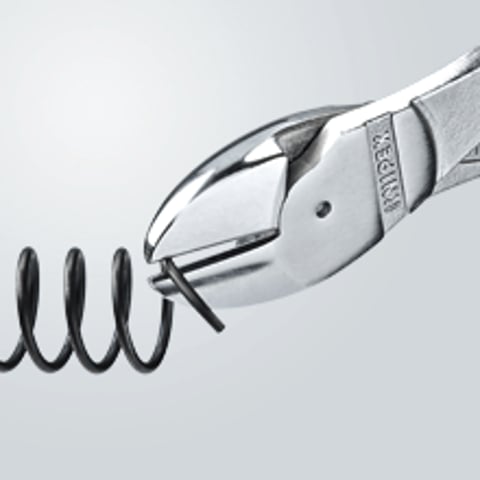

Cut piano wire (spring steel wire) up to Ø 3.0 mm
In relation to the cutting capacity, comparatively low weight at 510 g
Cutting edge hardness approx. 64 HRC
Production according to higher standards for optimal work results and a long service life
Sits firmly in the hand thanks to ergonomic handle design and dip-insulated grips
Chrome vanadium electric steel, forged, oil hardened in multiple stages and chrome-plated
Precise cutting of medium-hard and hard wire as well as piano wire
One can see how good diagonal cutters are by the cut. Knipex high leverage diagonal cutters deliver better performance. In addition to the quality forged metal parts made of high performance chrome vanadium tool steel, the most important quality criteria at Knipex include their precise machining. The sharpness and angle of the cutting edges on the Knipex 74 07 250 are designed for top performance. The excellent machining of these high leverage diagonal cutters makes sure that the material to be cut is always cut cleanly. The high quality of the tool steel produced in Germany, the hardness of the cutting edges and the forged joint axle guarantee exceptional stability and a long service life.
High leverage diagonal cutters diverse cutting work on CU or AL conductors and all classes of wire.
Compared to conventional diagonal cutters of the same size, the Knipex 74 07 250 offers a much better ratio between the force required and cutting capacity.
Suitable for work on electrical installations (as long as the relevant safety rules have been complied with).
With forged joint axle for the toughest, continuous demands.
