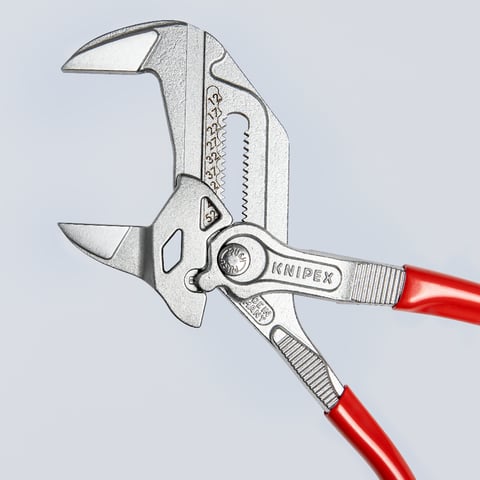

86 03 250
Pliers Wrench
Pliers and a wrench in a single tool

smooth gripping surfaces
  • Replaces the need for sets of metric and imperial spanners

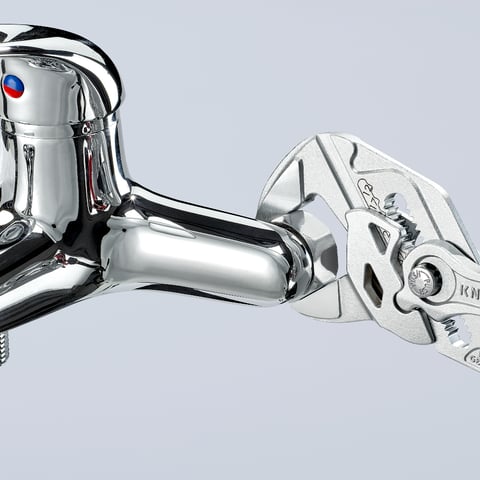

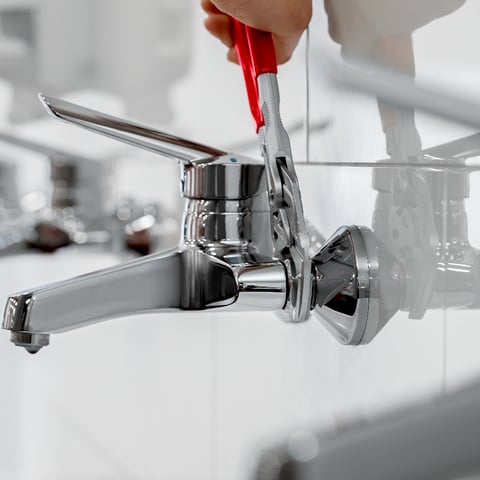

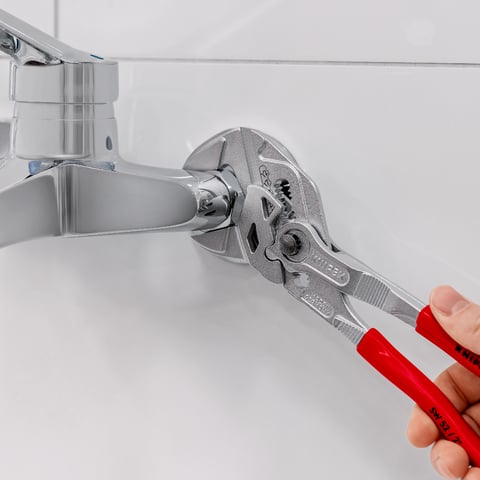

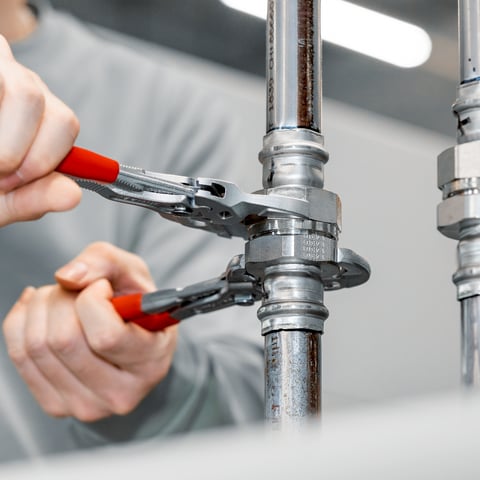

  • Smooth jaws for damage free installation of plated fittings - working directly on chrome!

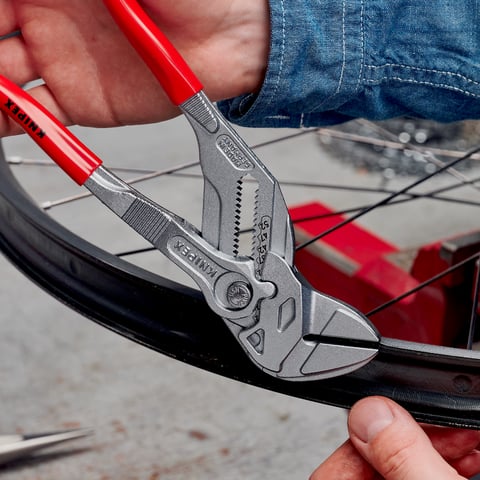

  • Also excellent for gripping, holding, pressing and bending workpieces
  • Zero backlash jaw pressure prevents damage to edges of sensitive components

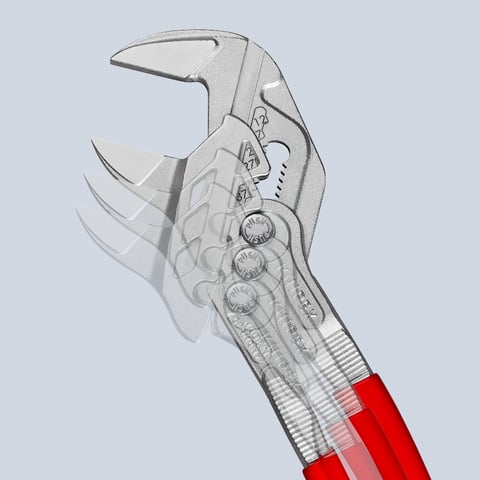

  • Fast adjustment by pushing a button directly on the workpiece
  • No unintentional shift of the gripping jaws and no slipping of the joint

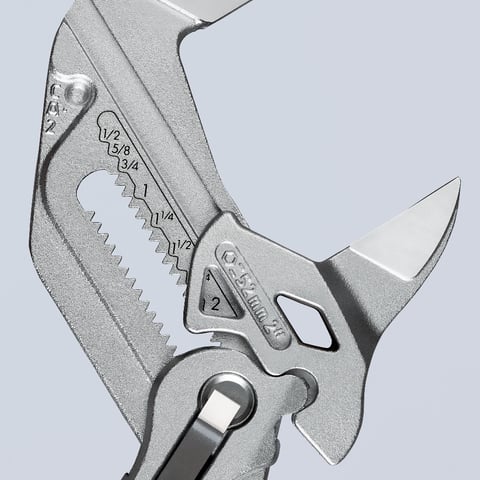

  • Parallel jaws give a more solid grip; its design allows flexible adjustment of all widths up to the specified maximum size

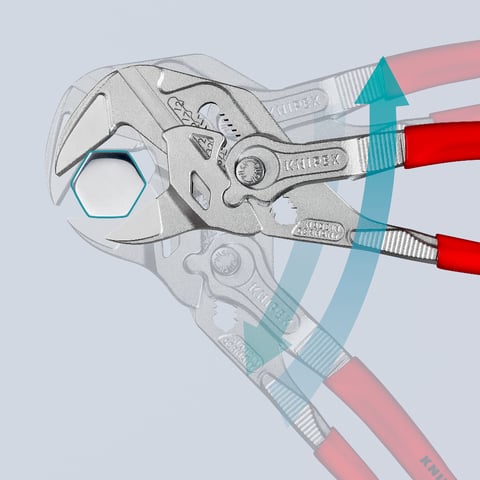

  • The ratchet type principle allows quick and easy tightening and release of all bolted connections
  • Lever transmission greater than 10 : 1 for strong gripping power
Technical attributes
Article No.
86 03 250
EAN
4003773033837
Pliers
chrome-plated
Head
chrome-plated
Handles
plastic coated
Weight
465 g
Dimensions
250 x 53 x 18 mm
REACH compliant
does not contain SVHC
RoHS compliant
not applicable
Jaw thickness (joint) (B2)
8.0 mm
Joint thickness (B3)
14.0 mm
Tips thickness (B1)
8.0 mm
Adjustment positions
19
Capacities for nuts
Ø 2 Inch
Capacities for nuts
52 mm
Brief overview

Screws, grips, holds, bends and presses

Replaces a full set of wrenches

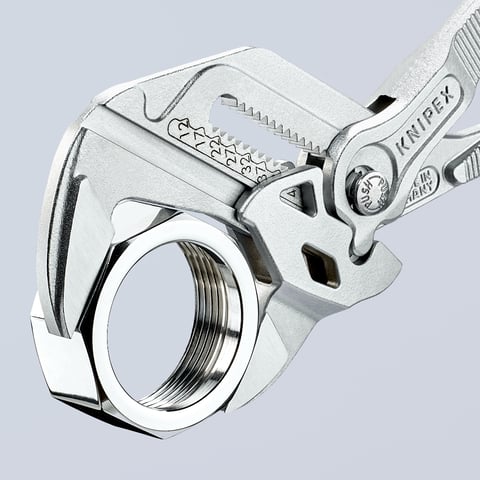

Grips continuously up to 52 mm or 2 inches

Protects sensitive surfaces

10-fold manual force amplification

Direct working on chrome, brass, etc.

Fast adjustment on the workpiece at the touch of a button

Chrome vanadium heavy-duty steel, oil hardened

All variations

86 01 180
Pliers Wrench Pliers and a wrench in a single tool
141-180 mm
atramentised / lacquered / burnished
plastic coated
Length: 180 mm
86 01 250
Pliers Wrench Pliers and a wrench in a single tool
181-250 mm
atramentised / lacquered / burnished
plastic coated
Length: 250 mm
86 01 300
Pliers Wrench Pliers and a wrench in a single tool
Length: 300 mm
86 02 180
Pliers Wrench Pliers and a wrench in a single tool
141-180 mm
atramentised / lacquered / burnished
multi-component grips
Length: 180 mm
86 02 250
Pliers Wrenches Pliers and a wrench in a single tool
atramentised / lacquered / burnished
multi-component grips
Length: 250 mm
86 03 125
Mini pliers wrench Pliers and a wrench in a single tool
100-140 mm
chrome-plated / zinc-plated
plastic coated
Length: 125 mm
86 03 150
Pliers Wrench Pliers and a wrench in a single tool
141-180 mm
chrome-plated / zinc-plated
plastic coated
Length: 150 mm
86 03 180
Pliers Wrench Pliers and a wrench in a single tool
141-180 mm
chrome-plated / zinc-plated
plastic coated
Length: 180 mm
86 03 300
Pliers Wrench Pliers and a wrench in a single tool
251-300 mm
chrome-plated / zinc-plated
plastic coated
Length: 300 mm
86 05 150
Pliers Wrench Pliers and a wrench in a single tool
141-180 mm
chrome-plated / zinc-plated
multi-component grips
Length: 150 mm
86 05 180
Pliers Wrench Pliers and a wrench in a single tool
141-180 mm
chrome-plated / zinc-plated
multi-component grips
Length: 180 mm
86 05 180 T
Pliers Wrench Pliers and a wrench in a single tool
141-180 mm
chrome-plated / zinc-plated
multi-component grips
Length: 180 mm
86 05 250
Pliers Wrench Pliers and a wrench in a single tool
chrome-plated / zinc-plated
multi-component grips
Length: 250 mm
86 05 250 T
Pliers Wrench Pliers and a wrench in a single tool
181-250 mm
chrome-plated / zinc-plated
multi-component grips
Length: 250 mm
86 06 250
Pliers Wrench Pliers and a wrench in a single tool
chrome-plated / zinc-plated
plastic coated
Length: 250 mm

Article 86 03 250 in Set

00 21 19 LB S
KNIPEX L-BOXX® Plumbing 52 parts
00 21 21 HK S
Tool Case "Vision27" Plumbing 24 parts
00 21 06 HK S
Tool Case "BIG Basic Move" Plumbing 23 parts
00 19 55 S4
Set of Pliers Wrenches 5 pieces
00 19 55 S6
Set of Pliers Wrenches 1 x 86 03 125, 1 x 86 03 180, 1 x 86 03 250
00 19 55 S7
Set of Pliers Wrenches 1 x 87 01 150, 1 x 87 01 250, 1 x 87 01 300
Technical changes and errors reserved.
