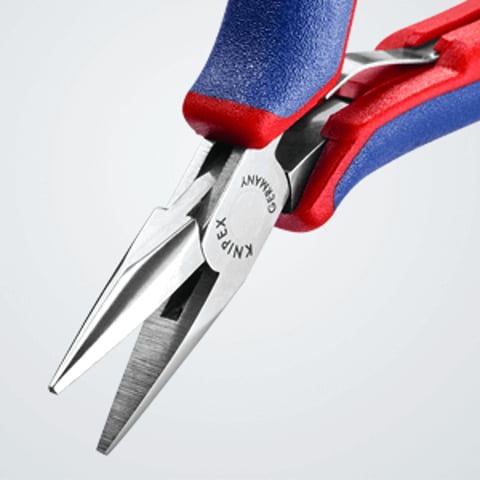

35 22 115Electronics Pliers
- Precision pliers for fine assembly work, e. g. in electronics and fine mechanics
- For gripping, holding and bending
- Sturdy, zero backlash box joint
- Smooth ground gripping surfaces
- Edges carefully deburred
- Low-friction double spring for gentle and even opening
- The polish or mirror polish together with a fine film of oil offer effective rust protection - no circuit faults caused by peeling chrome from plated tools
Small & narrow: gripping pliers with half round tips for fine installation work
Short, smooth and good: 115 mm long for plenty of freedom of movement even where space is restricted
There is usually not much room to move here. Space is tight when working on electronic equipment, printed circuit boards and precision constructions such as measuring equipment or delicate apparatus. A compact tool which can also be used to work well even in poorly accessible areas is therefore helpful.
With a length of just 115 mm and their slim, flat head, these electronics pliers from Knipex are the ideal tool for the delicate gripping, holding and bending of sensitive components. The gripping surfaces are smooth ground to protect sensitive surfaces, and are rounded at the front.
Smooth operating and accurate, with box joint design and double spring
The smaller and more sensitive the component, the greater the challenges placed on pliers. The accurate, well-measured transmission of manual force to the component is decisive. To achieve this, the mechanics of the Knipex 35 22 115 are very finely adjusted. The box joint is solid and smooth operating, because the inner handle is guided on both sides by the outer handle. This ensures precise running without any tilting effect. The low friction double spring supports the gentle opening of the pliers.
High Knipex quality standards and safety rust protection
The handles of the Knipex 35 22 115 electronics pliers are forged from special tool steel, oil-hardened, carefully deburred, mirror-polished and completed with opening spring and rivet to produce gripping pliers. The rust protection is safe for circuits because there is no chrome-plating, which means that no pieces of chrome can peel off and fall onto printed circuit boards. The pliers are protected against corrosion thanks to a mirror polish and a fine oil film as long as the oil film is replaced occasionally.
Slender gripping pliers for delicate installation work in precision engineering and electronics
Ideal for electronics and precision engineering
For gripping, holding and bending
Half round, pointed tips
Stable thanks to box joint with zero backlash
Low friction double spring for gentle and steady opening
Smooth ground gripping surfaces
Pliers mirror-polished and with a fine oil film as rust protection
Handles with multi-component grips
Length 115 mm
Net weight 73 g
Knipex electronics pliers for electronics and precision engineering
Knipex offers an extensive range of electronics pliers for applications in precision engineering and electronics. These pliers in a small format achieve a lot where there is little space – and do so for a long time.
Those who use tools a lot and professionally every day expect a quality that permits simple and safe work and which lasts for many years of hard use.
Every pair of Knipex pliers represents more than 130 years of specialist know-how.

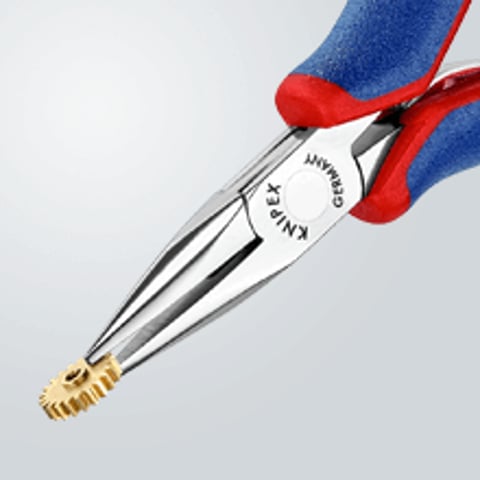

Gentle grip and firm hold
Manual force can be carefully measured – ideal for sensitive components such as small toothed wheels.

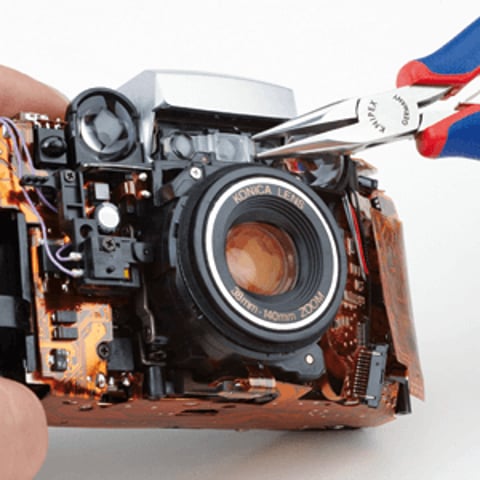

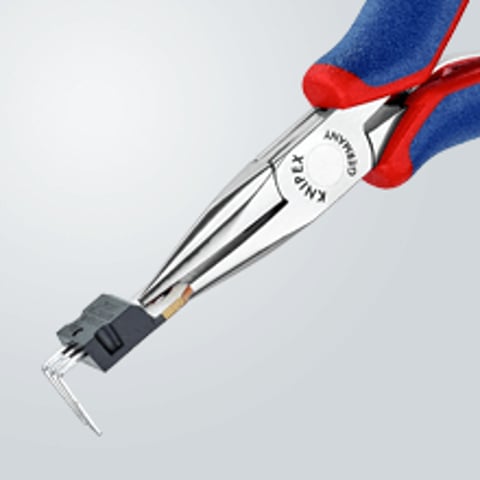

Gently feed printed circuit board components
The Knipex 35 22 115 is a valuable support when feeding sensitive components.

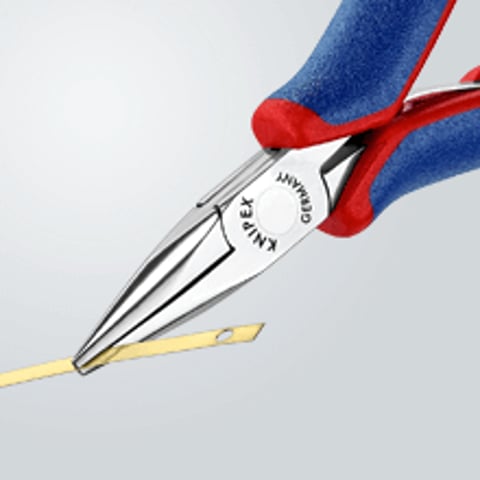

For gently gripping flat material
Sensitive and delicate flat components can be gripped securely and gently with the smooth jaws.
