- Durable, load-optimised design with backlash-free box joint
- High, slim sleeves for fine and comfortable gripping between thumb and index finger
- Less physical effort due to very high transmission ratio
- Load-optimised for a more direct feel when working
- Low-friction double spring for smooth and even opening
- The mirror polish in combination with a fine oil film provides rust protection - no circuit faults caused by peeling chrome from plated tools
- Cutters additionally laser hardened, cutter hardness at least 62 HRC
- Pointed, flat head, with small bevel
Cutting capacities medium hard wire (diameter)
Cutting capacities hard wire (diameter)
Cutting capacities soft wire (diameter)
Precise cutting of fine wires and cables – even soft wires up to Ø1.0 mm
Small dimensions – large cutting capacity

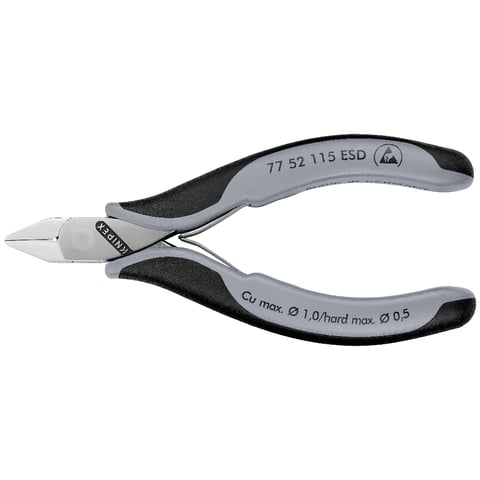

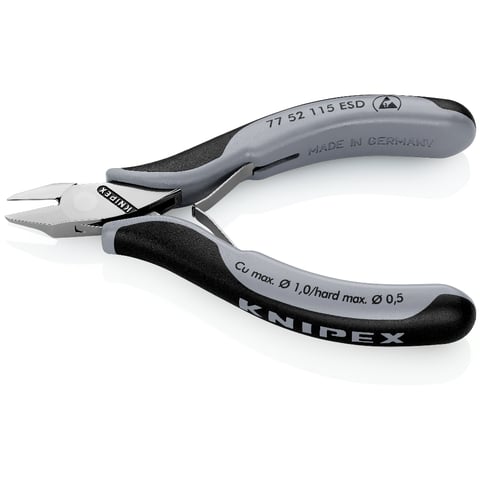

Unlike diagonal cutters for use in domestic installations, electronics diagonal cutter 77 52 115 ESD from Knipex is a real precision tool. With a length of 115 mm and weighing 79 g, it is extremely compact and lightweight, making it ideal for confined spaces, e.g. for PCBs or precision equipment. Cutting edge hardness approx. 60 HRC it cuts soft wires up to Ø1.0 mm. The short pliers head offers strong leverage. This makes it perfect for power delivery on the cutting edges and controlling manual force.
Zero-backlash box joint. High cut quality and durability
The Knipex 77 52 115 ESD electronics diagonal cutter has a box joint. The inside of both pliers handles is guided. This prevents tilting. Rivets only undergo shearing stress. Result: higher-quality cutting operations, long service life. The tool is oil-hardened, while the cutting edges are induction-hardened to approx. 57 HRC.
ESD protection against electrostatic discharges; corrosion protection
Electronics diagonal cutter 77 52 115 ESD protects electronic components from damage. Electrostatic energy is discharged in a controlled way via the handles. The corrosion protection is also safe for sensitive electronic components. Instead of chrome plating, the meticulously crafted electronics diagonal cutter is mirror polished.
Compact diagonal cutters with ESD protection for fine cutting
Wire cutting values: soft Ø0.3–1.0 mm, medium-hard Ø0.8, hard Ø0.5 mm,
Box joint
Mirror polish plus fine oil film protect against rust
Forged, oil-hardened with special quality special tool steel
Cutting edges also induction-hardened, hardness approx. 60 HRC
Handles w/ ESD multi-component grips, electrostatic dissipation
Length 115mm; Net weight 79 g
Electronics diagonal cutters from Knipex – for electronics & precision equipment
Knipex offers a comprehensive range of box joint electronics diagonal cutters for applications in electronics and precision equipment. They are characterised by high precision and functionality – plus the proverbial Knipex durability.
Professionals who use tools a lot every day expect a quality that enables them to work easily and safely and that can withstand many years of tough service. Box joint Knipex electronics diagonal cutter are forged from special quality special tool steel and are carefully processed and gently heat-treated.
