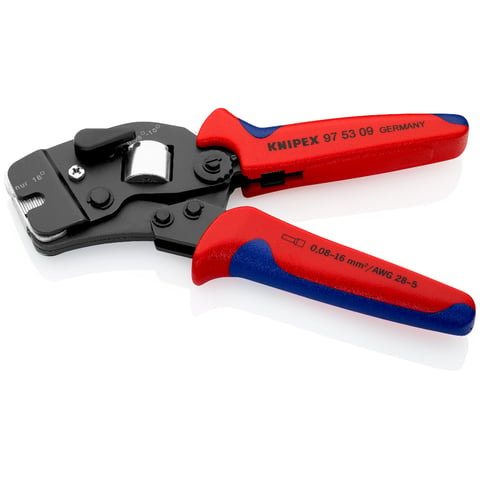

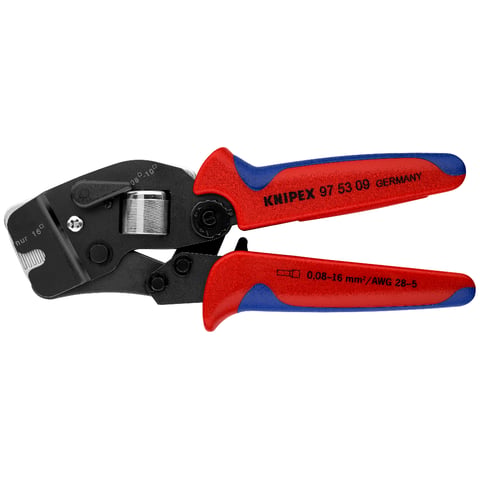

97 53 09

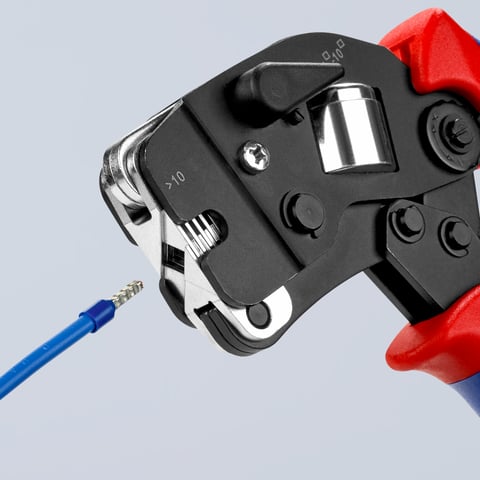

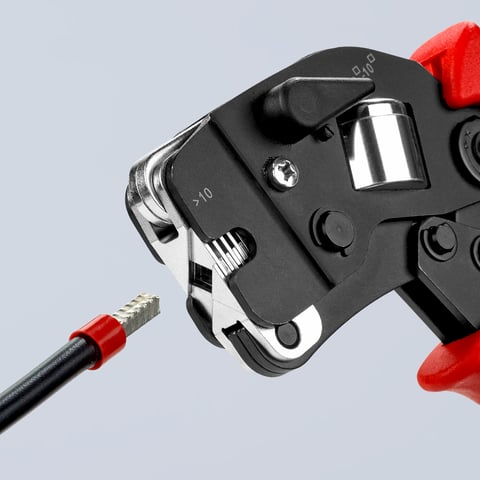

Self-Adjusting Crimping Pliers for wire ferrules
With front loading

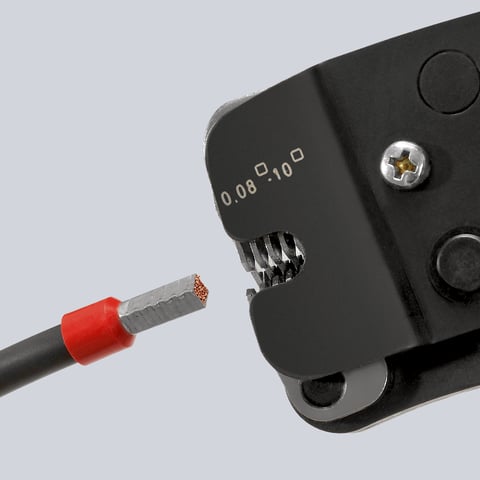

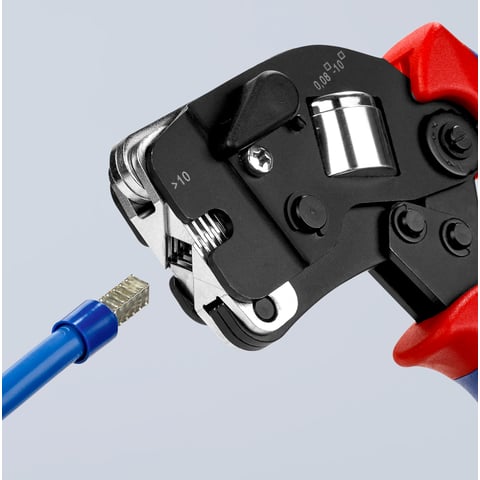

Square crimp automatic
  • Compression from 0.08 - 10.0 and 16.0 mm² in one profile

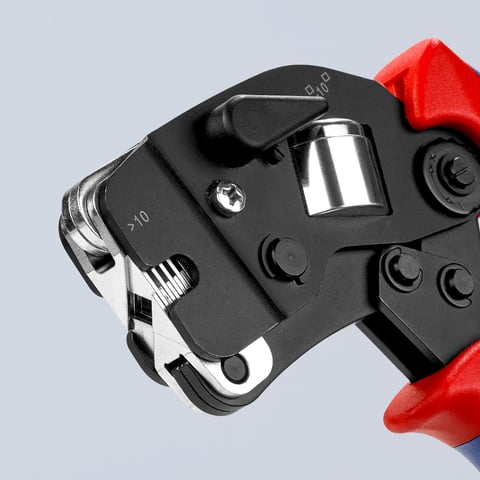

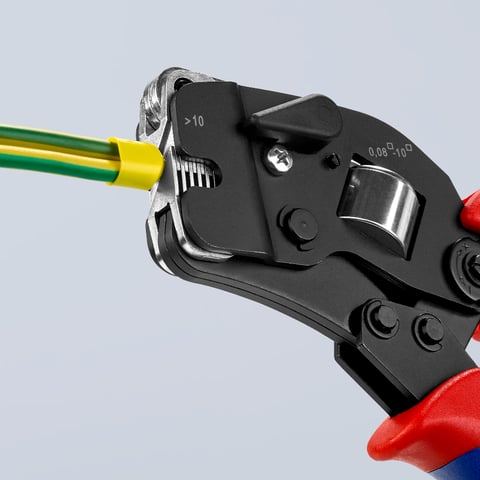

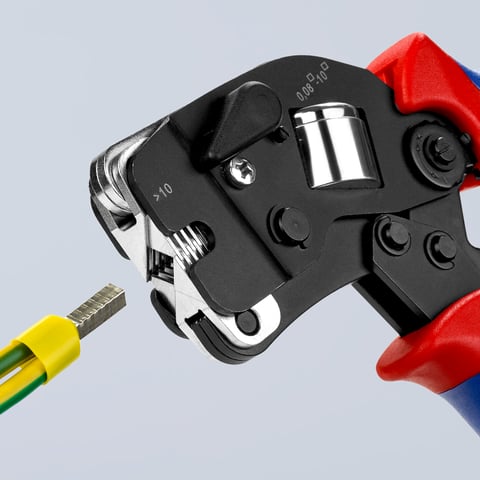

  • With selector lever for setting the crimping area either to 0.08 - 10 mm² or 16 mm²
  • For crimping wire ferrules according to DIN 46228 parts 1 + 4
  • Self-adjusting adaptation to the desired wire ferrule size: no wrong crimps caused by using the wrong die

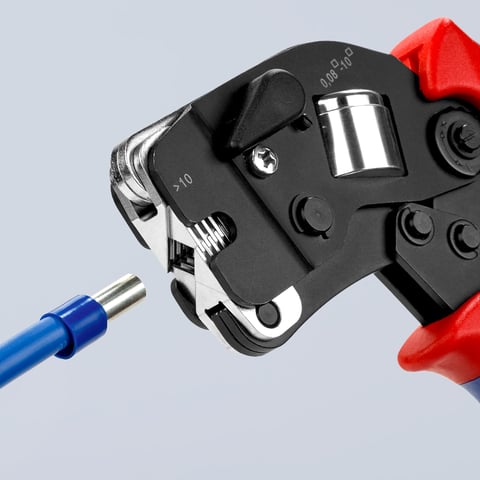

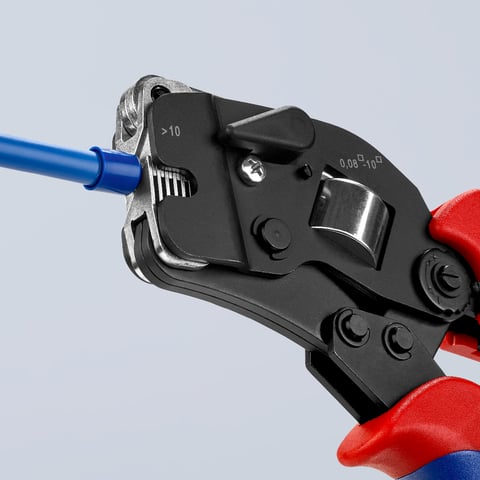

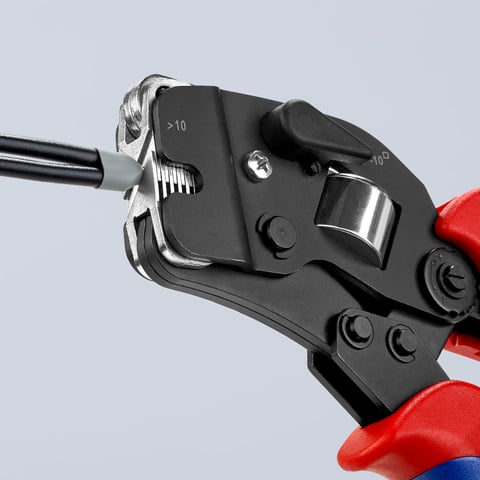

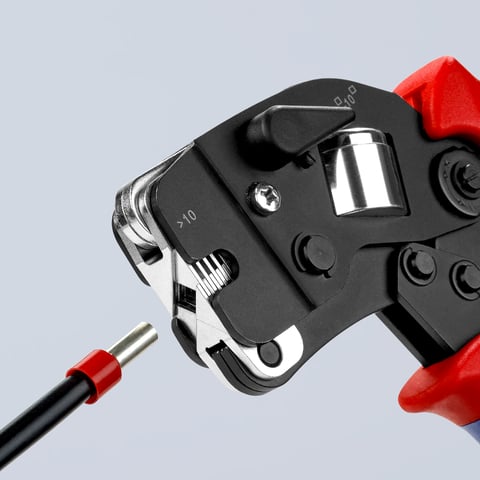

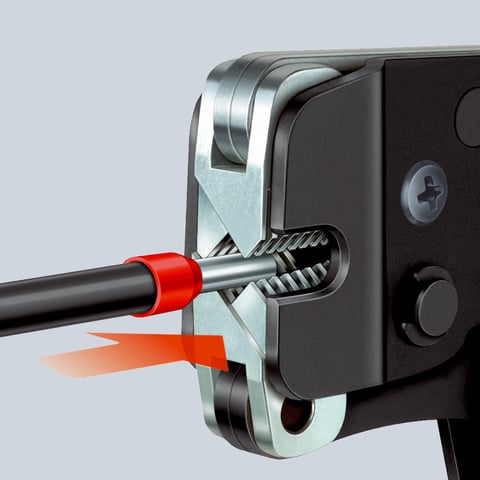

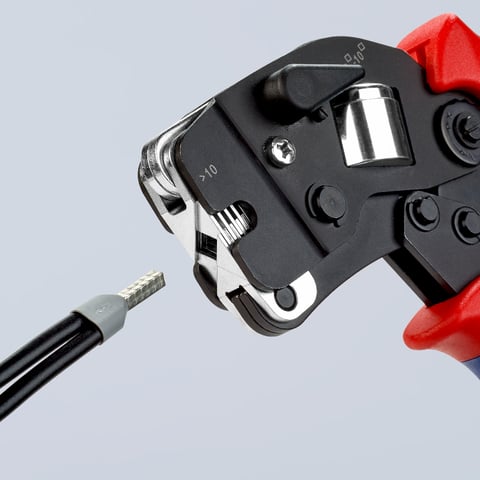

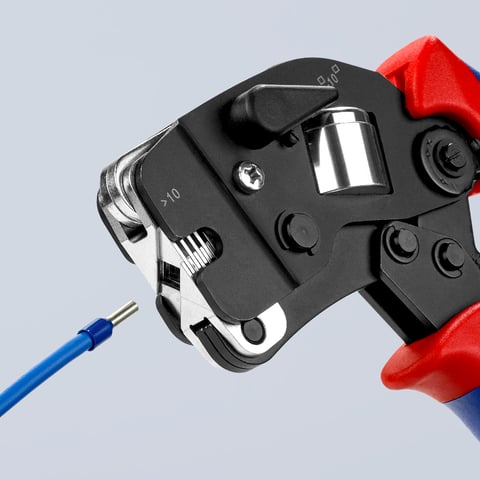

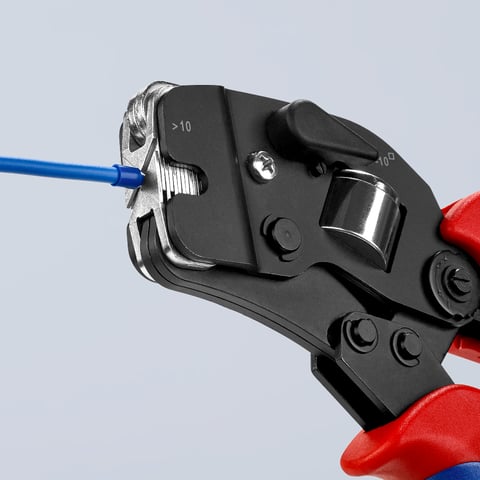

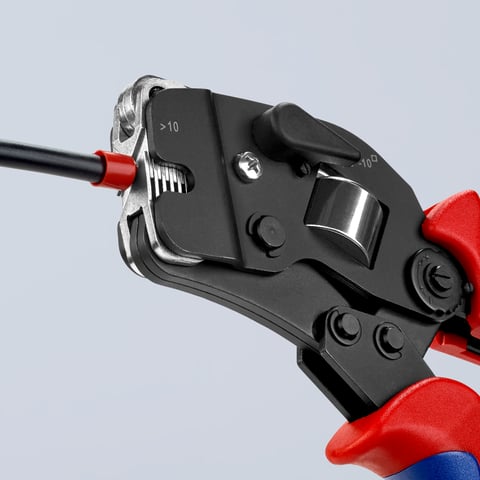

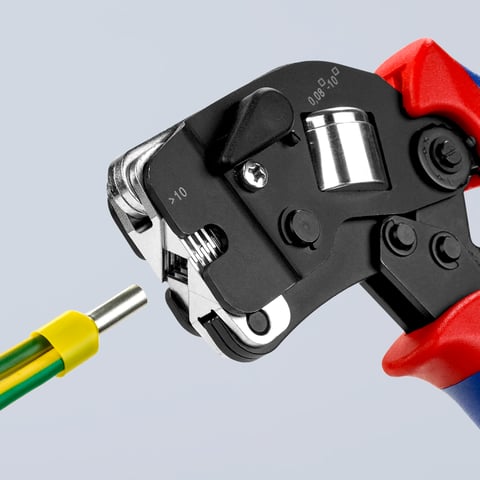

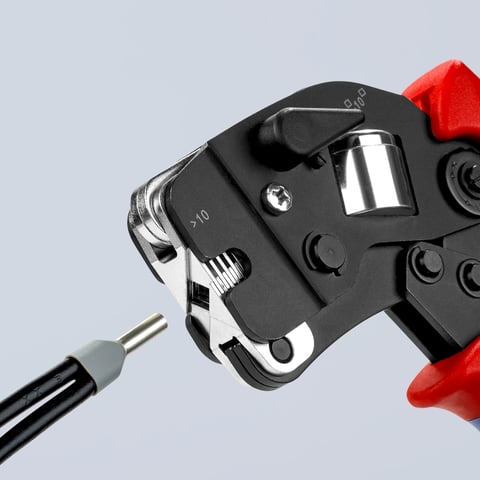

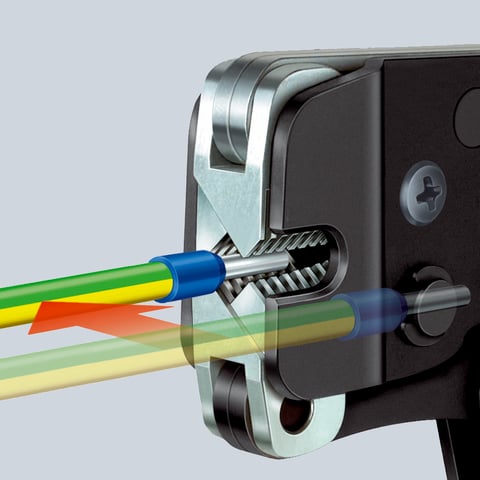

  • Frontal insertion of the wire ferrules into the pliers
  • Repetitive, high crimping quality due to ratchet mechanism (unlockable)
  • Tools have been set precisely (calibrated) in the factory
  • Optimum transmission of force thanks to toggle lever for fatigue-reduced operation
  • Handy shape and low weight provide high operation comfort
  • UL approval in conjunction with KNIPEX-AEH 97 99 330 - 399
Technical attributes
Article No.
97 53 09
EAN
4003773044550
Pliers
burnished
Handles
with multi-component grips
Weight
486 g
Dimensions
190 x 20 x 23 mm
REACH compliant
contains SVHC
RoHS compliant
not applicable
Application
Wire ferrules
Capacity in square millimetres
0.08 — 10 / 16 mm²
Number of crimping positions
1
AWG
28 — 6

For calibration inquiries, please contact our affiliated company RENNSTEIG WERKZEUGE GMBH under the following contact:



Mr. Uwe Wagner

[email protected]

Tel .: +49 36 847 441-59

Domestic sales



Rennsteig logo

www.rennsteig.com

All variations

97 53 08
Self-Adjusting Crimping Pliers for wire ferrules With front loading
181-250 mm
atramentised / lacquered / burnished
multi-component grips
0,08 – 10 mm²
Length: 190 mm

Article 97 53 09 in Set

97 90 15
Crimp Assortment For wire ferrules
97 90 16
Crimp Assortment For wire ferrules 1 x 12 40 200, 1 x 97 53 09, 8 x wire ferrule sets
97 90 17
Crimp Assortment For wire ferrules 1 x 12 42 195, 1 x 97 53 0, 8 x wire ferrule sets
Technical changes and errors reserved.
