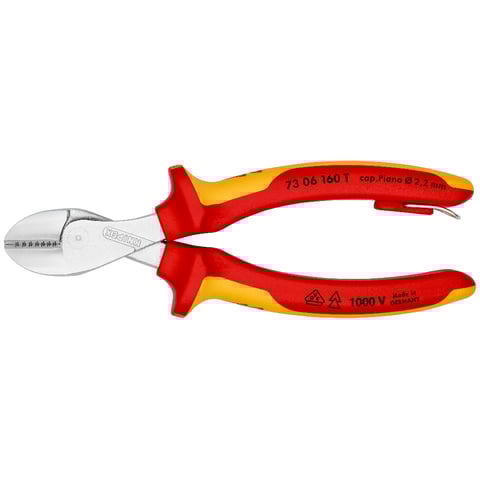

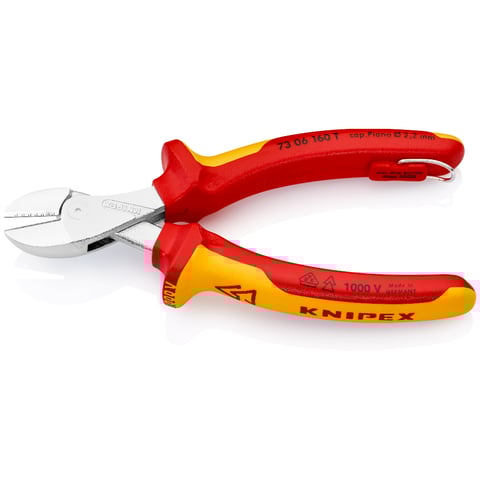

73 06 160 TKNIPEX X-Cut®Compact Diagonal Cutter
73 06 160 T
KNIPEX X-Cut®
Compact Diagonal Cutter
- Cuts finest strands as well as multi-core cables and piano wires
- Powerful, light and universal
- High cutting performance with minimum effort due to optimum coordination of the cutting edge angle and transmission ratio
- Box-joint design: highest stability with low weight
- Doubly supported joint axis for heavy duty
- Large opening width for thicker cables
- Cuts precisely, even through fine copper wires
- Compact, low-weight construction
- Universally usable, in the assembly, maintenance and production
- 40% less force required compared with standard diagonal cutters of the same length
- Pliers with integrated, insulated tether attachment point for a tool tether
Technical attributes
Article No.
73 06 160 T
EAN
4003773081487
pliers
chrome-plated
head
chrome-plated
handles
insulated with multi-component grips, VDE-tested with integrated insulated tether attachment point for a tool tether
Weight
185 g
Dimensions
160 x 56 x 27 mm
Standard
DIN ISO 5749 DIN EN 60900 IEC 60900
REACH compliant
does not contain SVHC
RoHS compliant
not applicable
Cutting capacities medium hard wire (diameter)
Ø 3.8 mm
Cutting capacities hard wire (diameter)
Ø 2.7 mm
Cutting capacities piano wire (diameter)
Ø 2.2 mm
Cutting capacity copper cable, multiple-stranded
Ø 12.0 mm
Drop Protection System
yes
VDE tested
yes
