- For solder-free electrical connections
- The ingenious lever transmission reduces the handforce up to 30% compared with regular crimping pliers
- Consistently high crimping quality due to precision dies and ratchet mechanism (unlockable)
- Precise, factory calibrated crimping pressure
- Two-hand operation for easy crimping of large conductor diameters
- Easy handling as a result of well balanced centre of gravity, angled head and ergnomically shaped handles
- Crimping die is not exchangeable
Extremely user-friendly: precision requiring little time and effort
Intuitively achieve professional crimping results

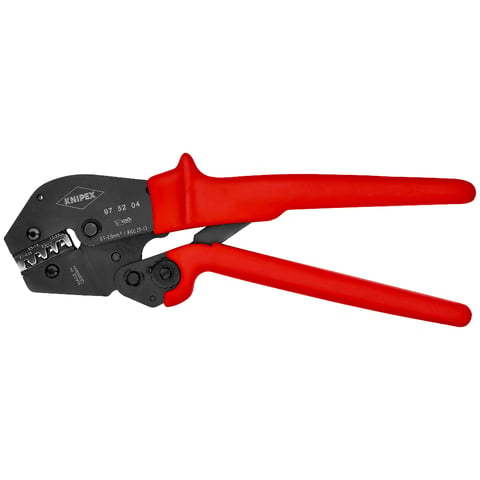

The crimping of connectors must be learned in order to create connections that are mechanically and electrically safe and secure. By contrast, no prior knowledge is needed when using the Knipex 97 52 04 crimping pliers, which give the user a tool that intuitively enables him to do everything right. Non-insulated blade terminal connectors with open cable entry are crimped to the conductors reliably in the precision-machined crimp profiles.
The integral lock ensures that the pliers only open once the optimal crimping pressure set in the factory has been reached. The crimping pressure can be adjusted; the integral lock can be released where necessary.
30 % less effort required – the leverage principle is used twice
Up to 30 % less effort required compared to conventional crimping pliers – how is that possible? The answer is physics. The handles on the Knipex 97 52 04 are shaped to produce a long lever arm. Special leverage is also integrated in the crimping pliers, so that even a low level of manual force gets to the connector in a carefully measured way. The user can produce stable connections from conductors and crimp connectors with little time and effort.
This is how it is done: three hand movements to produce a professional crimp connection

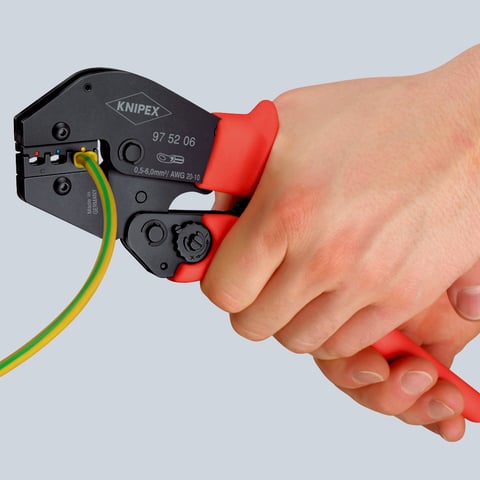

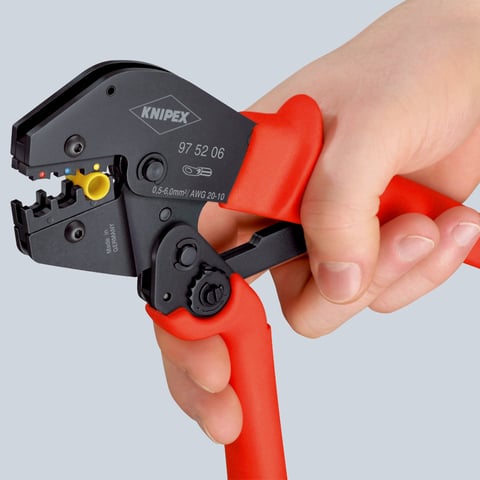

A non-insulated blade terminal connector with open cable entry is inserted. This is very easy, quick and accurate using the Knipex 97 49 94 locator which can be ordered as an accessory. The lower handle is pulled up using two fingers, until both jaws are resting on the plug connector to be crimped, thereby fixing it in the crimp profile. If one hand is insufficient, you can work with both hands as the handles are long enough for two-handed operation. This enables large cross-sections to be crimped safely and conveniently. All of these qualities are made to last, because the pliers are manufactured from high-grade chrome vanadium electric steel – according to Knipex quality criteria.

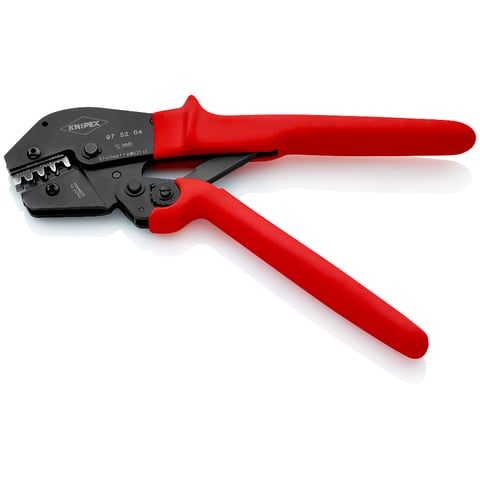

Extremely user-friendly crimping pliers with lever transmission
For non-insulated blade terminal connectors with 2.8 + 4.8 mm plug width and open cable entry
Long lever arm for one-handed and two-handed operation
Toggle lever system for high efficiency
Integral lock (with release mechanism) only triggers on reaching the optimal crimping pressure
Consistently high crimping quality due to (adjustable) crimping pressure calibration
Production in accordance with the highest standards for optimal work results and a long service life
Firm grip in the hand thanks to ergonomic shape of the handle
Chrome high-grade vanadium electric steel; oil-hardened
Option for mounting the Knipex 97 49 94 locator (accessory) for fast and accurate positioning
Handles with non-slip plastic grips
Length 250 mm
Net weight 562 g

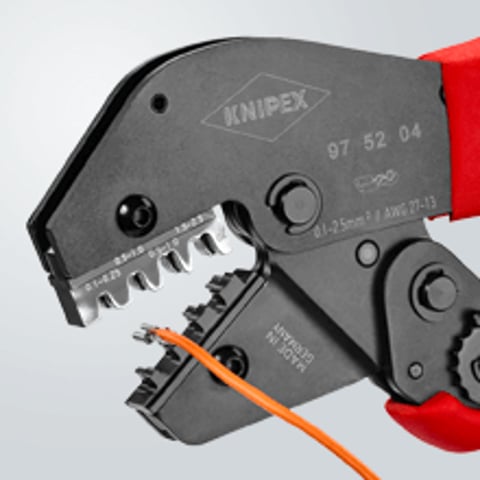

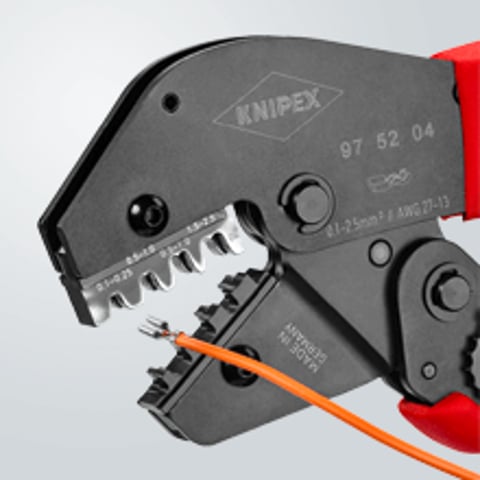

Insert the stripped conductor
The stripped conductor is placed in the blade terminal connector positioned in the crimping die.

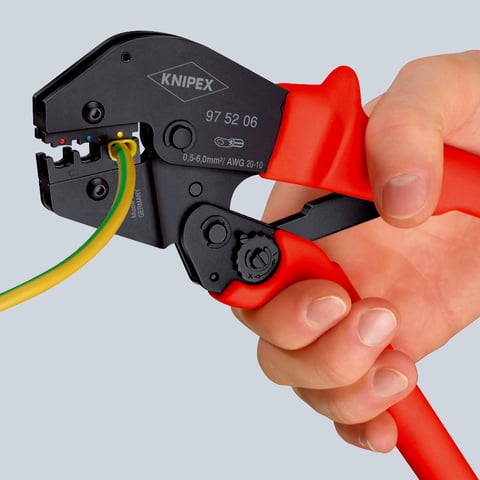

Implementation of the crimping operation
Little physical effort is needed due to toggle lever transmission; the integral lock ensures the ideal crimping pressure.

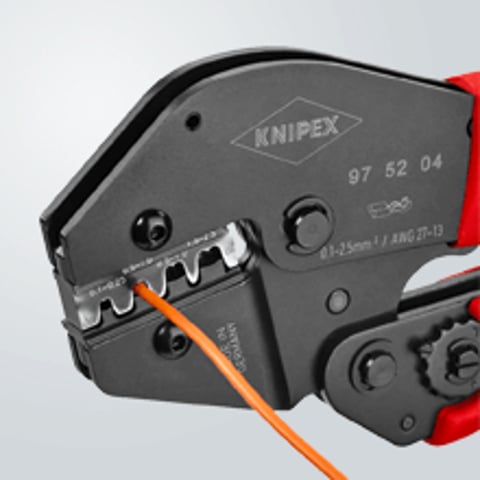

Secure crimp connection

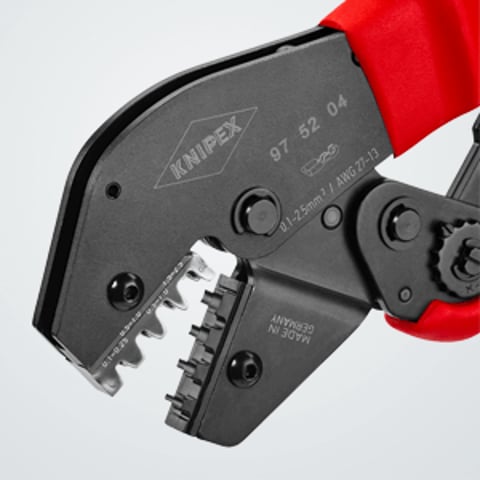

The precision crimp profiles permit professional, mechanically and electrically safe and secure connections at all times.
For calibration inquiries, please contact our affiliated company RENNSTEIG WERKZEUGE GMBH under the following contact:
Mr. Uwe Wagner
Tel .: +49 36 847 441-59
