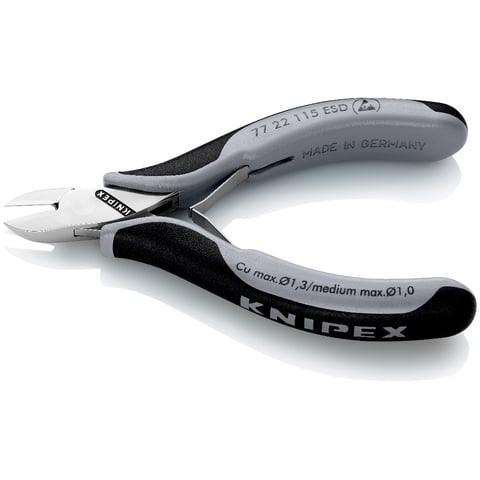

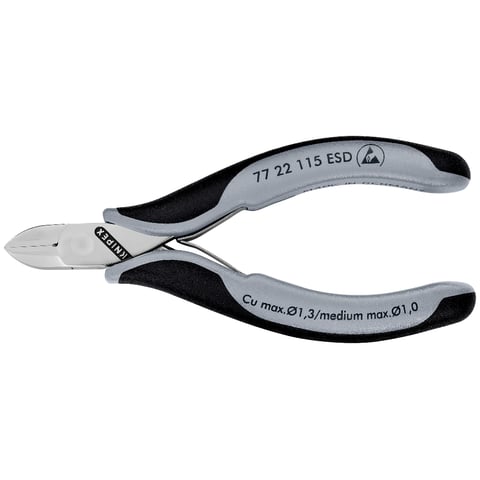

77 22 115 ESDElectronics Diagonal Cutters ESD
- For fine cutting work, e.g. in electronics and fine mechanics
- Electrically discharging handles - dissipative
- Sturdy, zero-backlash box joint
- Low-friction double spring for gentle and even opening
- The mirror polish in combination with a fine oil film provides rust protection - no circuit faults caused by peeling chrome from plated tools
- Cutting edges additionally induction-hardened, cutting edge hardness approx. 62 HRC
- Handles with two-colour multi-component grips black/grey
- Round head, without bevel
- Cutting edge hardness approx. 57 HRC
Cutting capacities medium hard wire (diameter)

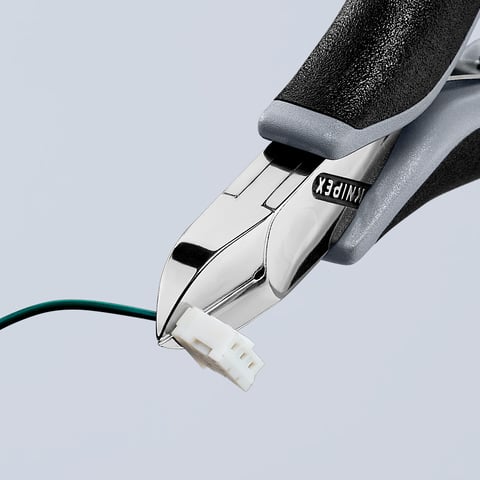

Precise cutting of fine wires and cables – even soft wires up to Ø1.3 mm
Excellent cutting capacity – also suited for flush cutting
Unlike diagonal cutters for use in domestic installations, this electronics diagonal cutter from Knipex is a real precision tool. With a length of 115 mm and weighing 80 g, it is extremely compact and lightweight, making it ideal for confined spaces, e.g. for PCBs or precision equipment. Cutting edge hardness approx. 57 HRC it cuts soft wires up to Ø1.3 mm. The short pliers head offers strong leverage. This makes it perfect for power delivery on the cutting edges and controlling manual force. Due to its design, the electronics diagonal cutter 77 22 115 ESD is unsuitable for hard wire; only for soft and medium-hard wires. As the cutting edges are not bevelled, flush cutting is possible.
Zero-backlash box joint. High cut quality and durability
The Knipex 77 22 115 ESD electronics diagonal cutter has a box joint. The inside of both pliers handles is guided. This prevents tilting. Rivets only undergo shearing stress. Result: higher-quality cutting operations, long service life. The tool is oil-hardened, while the cutting edges are induction-hardened to approx. 57 HRC.

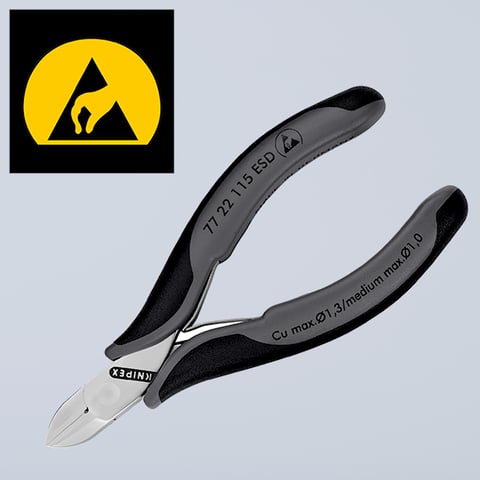

ESD protection against electrostatic discharges; corrosion protection
Sudden discharges due to electrostatic charge differences can damage electronic components. Electronics diagonal cutter 77 22 115 ESD prevents this: electrostatic charges are discharged via the handles. Instead of chrome plating, the meticulously crafted diagonal cutter has a mirror polish.
Compact diagonal cutters with ESD protection for fine cutting
Cutting values: medium-hard wire Ø1.0 mm, soft wire Ø0.3–1.3 mm
Box joint
Mirror polish plus fine oil film protect against rust
Forged, oil-hardened with special quality special tool steel
Cutting edges also induction-hardened, hardness approx. 57 HRC
Handles with multi-component grips, dissipate electrostatic energy
Length 115mm; Net weight 80 g
Electronics diagonal cutters from Knipex – for electronics & precision equipment
Knipex offers a comprehensive range of box joint electronics diagonal cutters for applications in electronics and precision equipment. They are characterised by high precision and functionality – plus the proverbial Knipex durability.
Professionals who use tools a lot every day expect a quality that enables them to work easily and safely and that can withstand many years of tough service. Box joint Knipex electronics diagonal cutter are forged from special quality special tool steel and are carefully processed and gently heat-treated.
