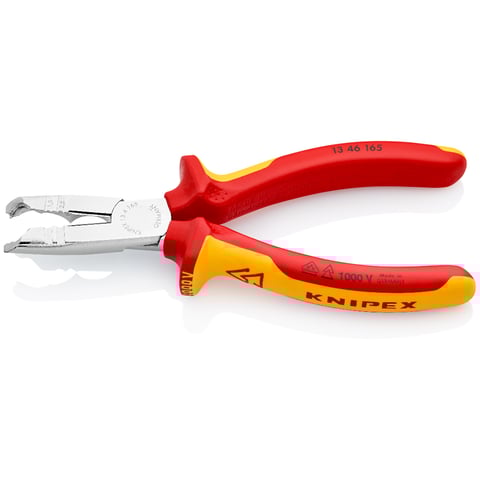

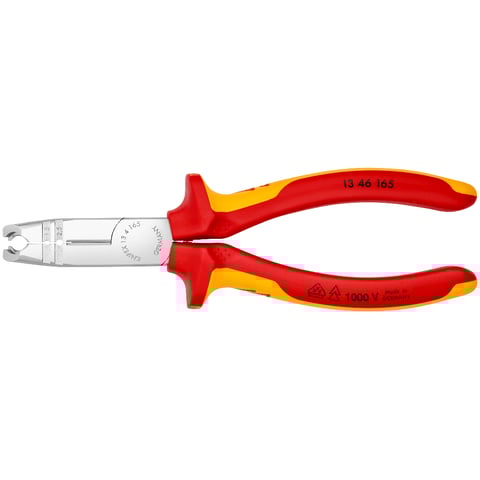

13 46 165Stripping Pliers
13 46 165
Stripping Pliers
- Multifunctional - cutting and stripping with one pair of pliers
- For time-saving stripping of all round sheathed and damp-proof installation cables (e.g. NYM cable)

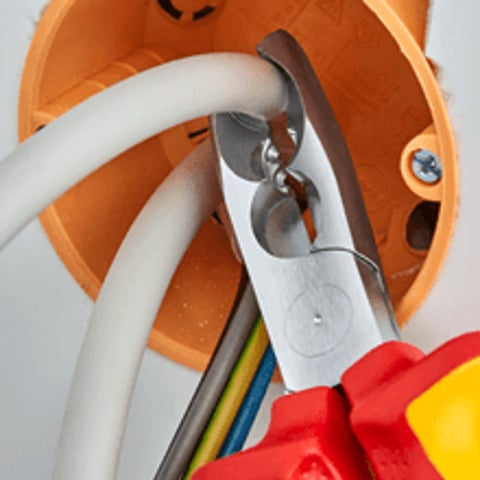

- Simplified access especially into deep mounted junction boxes thanks to slim head design and optimally angled cable sheath cutter

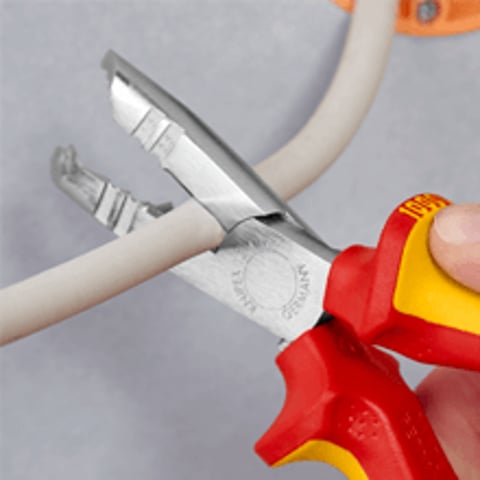

- Strip cables easily and without damage thanks to circular cutting edge with depth limiter

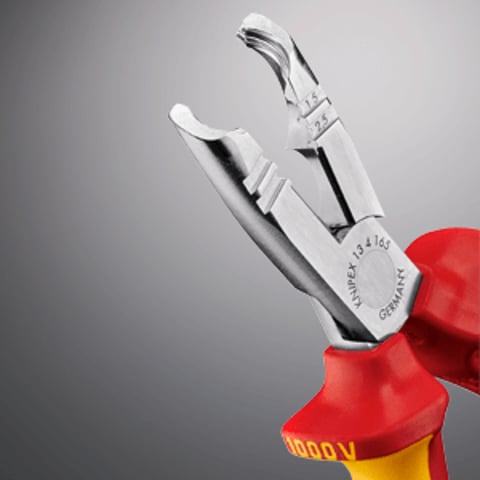

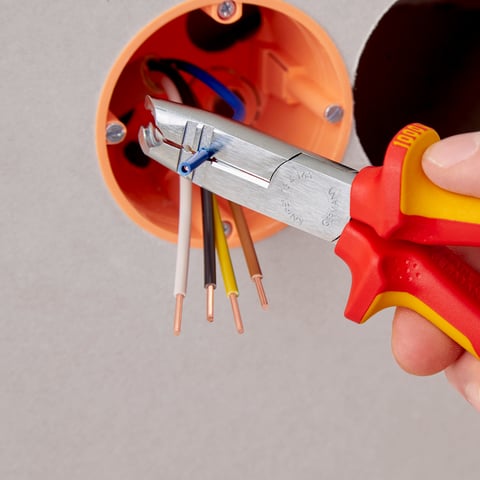

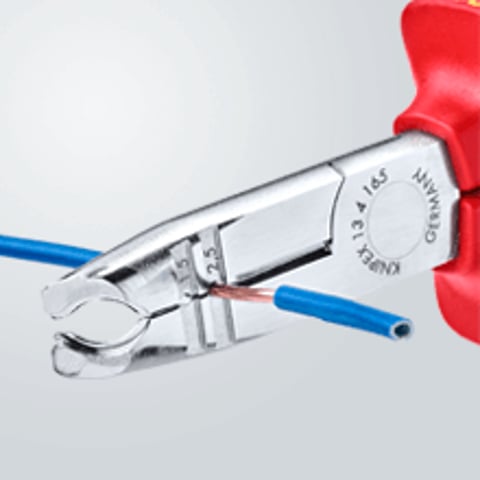

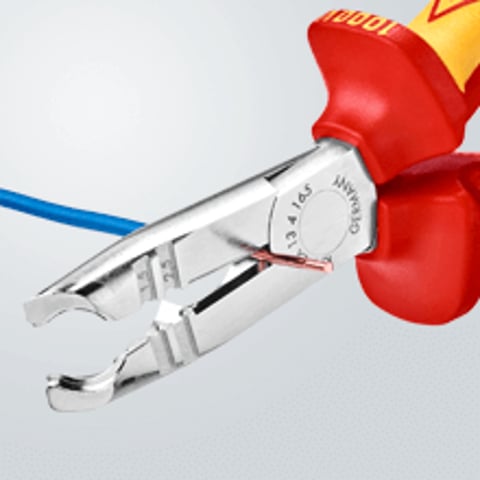

- Suitable for universal use: precision wire stripping holes for conductors from 1.5 and 2.5 mm²

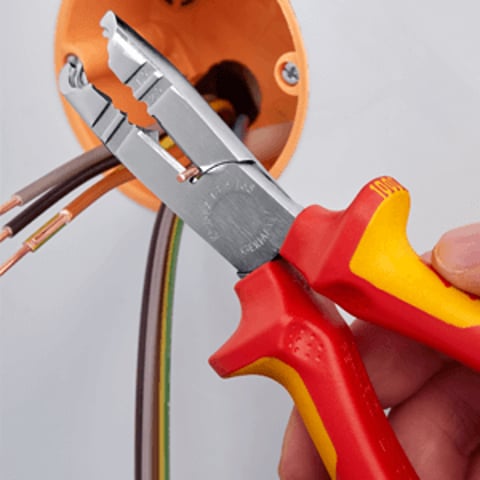

- With side cutters for cutting and trimming conductors, wires, small screws and nails
- All cutters additionally induction-hardened to approx. 61 HRC for high wear resistance
- 30 % lighter than comparable pliers
Technical attributes
Article No.
13 46 165
EAN
4003773079699
Pliers
chrome-plated
Head
chrome-plated
Handles
insulated with multi-component grips, VDE-tested
Weight
190 g
Dimensions
165 x 57 x 27 mm
Standard
DIN EN 60900 IEC 60900
REACH compliant
does not contain SVHC
RoHS compliant
not applicable
Cutting capacities medium hard wire (diameter)
Ø 3.2 mm
Schneidwerte harter Draht (Durchmesser)
Ø 2.2 mm
Cable stripping values (diameter)
8 – 13 mm
Stripping capacities in square millimetres
0.75 — 1.5 mm² / 2.5 mm²
VDE tested
yes
Brief overview
For dismantling all common round and damp-proof cable (e.g. NYM cable)
Accurate wire stripping holes for conductors with 1.5 and 2.5 mm²
Handles with insulating multi-component grips, VDE tested
Pliers are chrome-plated
Cutting capacity for medium-hard wire (nails) up to Ø 3.2 mm; hard wire (wire rope) up to Ø 2.2 mm
Dismantling range Ø 8 - 13 mm
Wire stripping capacities 1.5 / 2.5 mm²
165 mm long
Net weight 190 g
